ECK-A3 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP CER 220PF 2KV Y5P RADIAL

Part	Features	Lead Spacing	Lead Spacing	Tolerance	Mounting Type	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Lead Style	Capacitance	Voltage - Rated	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)

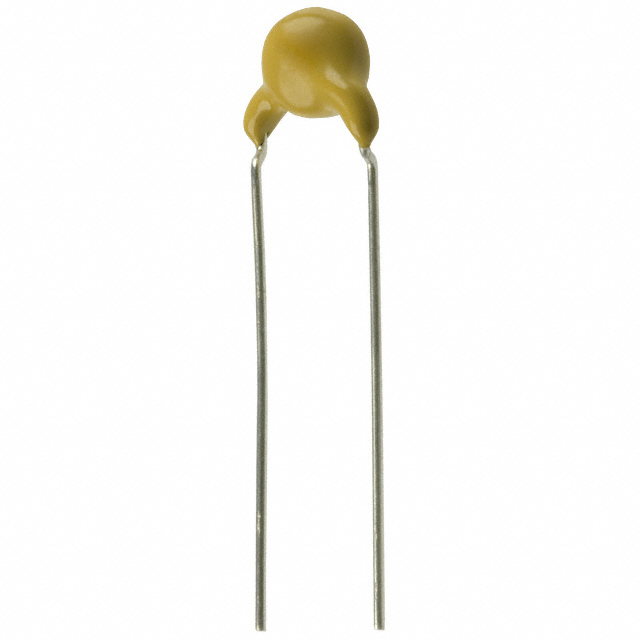

Panasonic Electronic Components ECK-A3D221KBP	High Voltage	0.295 in	7.5 mm	10 %	Through Hole	Y5P (B)	11 mm	0.433 in	-25 °C	125 °C	Disc Radial	0.276 in	7 mm	General Purpose	Formed Leads	220 pF	2000 V	2 kV

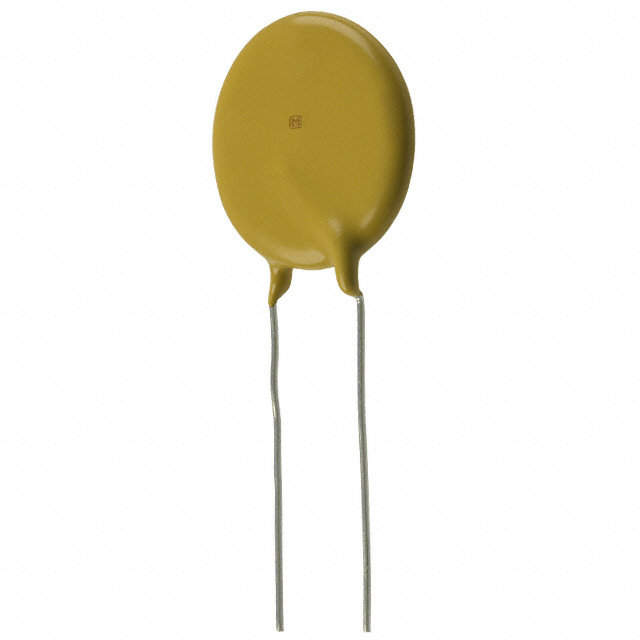

Panasonic Electronic Components ECK-A3D562KBP	High Voltage	0.394 in	10 mm	10 %	Through Hole	Y5P (B)	29 mm	1.142 in	-25 °C	125 °C	Disc Radial	0.984 "	25 mm	General Purpose	Formed Leads	0.0056 µF	2000 V	2 kV
Panasonic Electronic Components ECK-A3D472KBP	High Voltage	0.394 in	10 mm	10 %	Through Hole	Y5P (B)	29 mm	1.142 in	-25 °C	125 °C	Disc Radial	0.984 "	25 mm	General Purpose	Formed Leads	0.0047 µF	2000 V	2 kV
Panasonic Electronic Components ECK-A3F152KBP	High Voltage	0.394 in	10 mm	10 %	Through Hole	Y5P (B)			-25 °C	125 °C	Disc Radial	0.571 in	14.5 mm	General Purpose	Formed Leads	1500 pF	3000 V	3 kV	18.5 mm	0.728 in
Panasonic Electronic Components ECK-A3D101KBP	High Voltage	0.295 in	7.5 mm	10 %	Through Hole	Y5P (B)	11 mm	0.433 in	-25 °C	125 °C	Disc Radial	0.276 in	7 mm	General Purpose	Formed Leads	100 pF	2000 V	2 kV

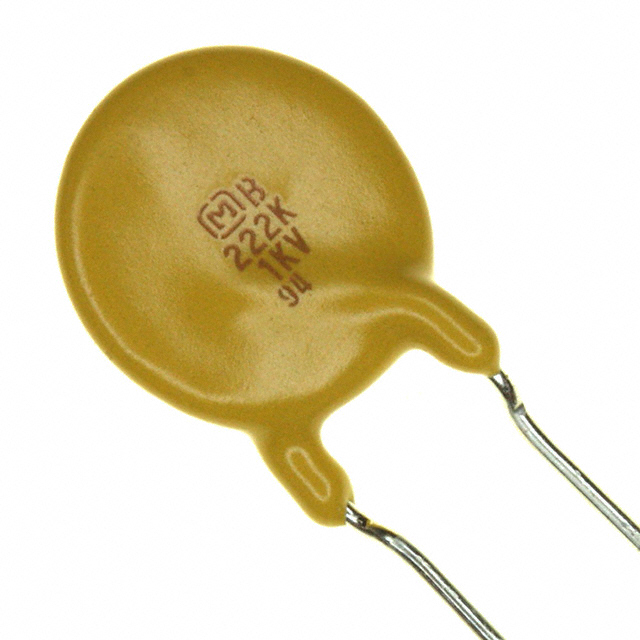

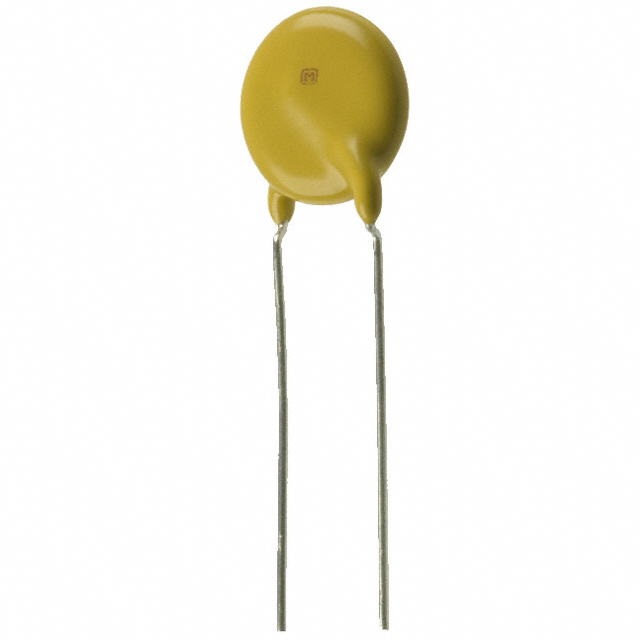

Panasonic Electronic Components ECK-A3A222KBP	High Voltage	0.197 "	5 mm	10 %	Through Hole	Y5P (B)	16 mm	0.63 in	-25 °C	125 °C	Disc Radial	0.472 "	12 mm	General Purpose	Formed Leads	2200 pF	1000 V	1 kV

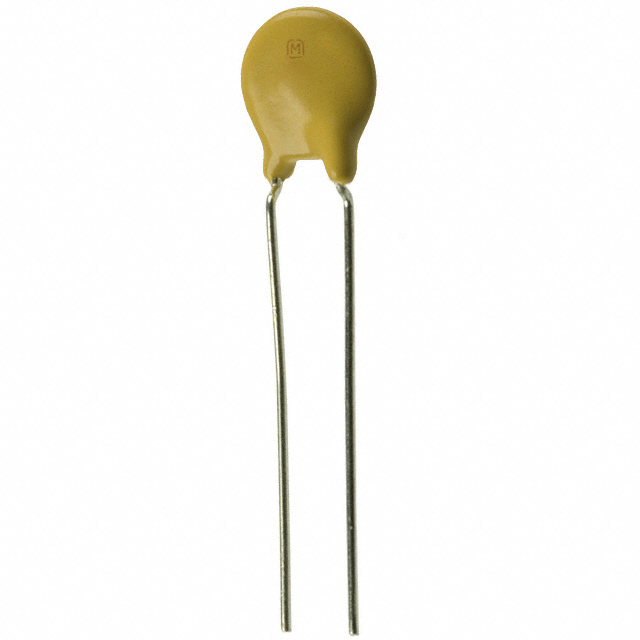

Panasonic Electronic Components ECK-A3A331KBP	High Voltage	0.197 "	5 mm	10 %	Through Hole	Y5P (B)			-25 °C	125 °C	Disc Radial	0.236 in	6 mm	General Purpose	Formed Leads	330 pF	1000 V	1 kV	10 mm	0.394 in
Panasonic Electronic Components ECK-A3A562KBP	High Voltage	0.394 in	10 mm	10 %	Through Hole	Y5P (B)		0.827 "	-25 °C	125 °C	Disc Radial	0.669 in	17 mm	General Purpose	Formed Leads	0.0056 µF	1000 V	1 kV	21 mm
Panasonic Electronic Components ECK-A3F101KBP	High Voltage	0.295 in	7.5 mm	10 %	Through Hole	Y5P (B)			-25 °C	125 °C	Disc Radial	0.295 in	7.5 mm	General Purpose	Formed Leads	100 pF	3000 V	3 kV	0.453 in		11.5 mm
Panasonic Electronic Components ECK-A3F331KBP	High Voltage	0.295 in	7.5 mm	10 %	Through Hole	Y5P (B)			-25 °C	125 °C	Disc Radial	0.315 in	8 mm	General Purpose	Formed Leads	330 pF	3000 V	3 kV		0.472 in		12 mm
