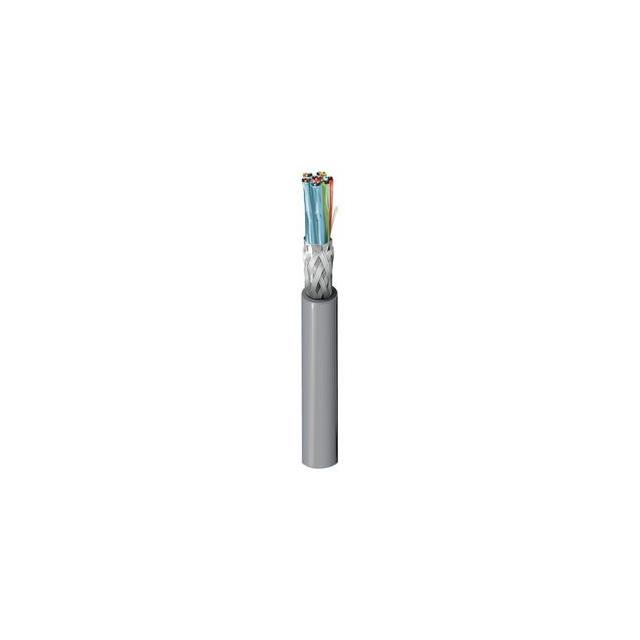

8167 Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 14COND 24AWG
| Part | Shield Material | Shield Coverage | Length | Length | Conductor Material | Usage | Cable Type | Ratings | Jacket Color | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Shield Type | Voltage | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 65 % 100 % | 304.8 m | 1000 ft | Copper Tinned | Computer | Multi-Pair | UL Style 2493 | Chrome | Foam Polyethylene (FPE) | 7 | 32 AWG | 60 °C | -40 C | 24 AWG | Braid Foil | 300 VDC | Drain Wire | 1.219 mm | 0.048 in | 14 | 11.33 mm | 0.446 in | Poly-Vinyl Chloride (PVC) |
