462A034 Series

Catalog

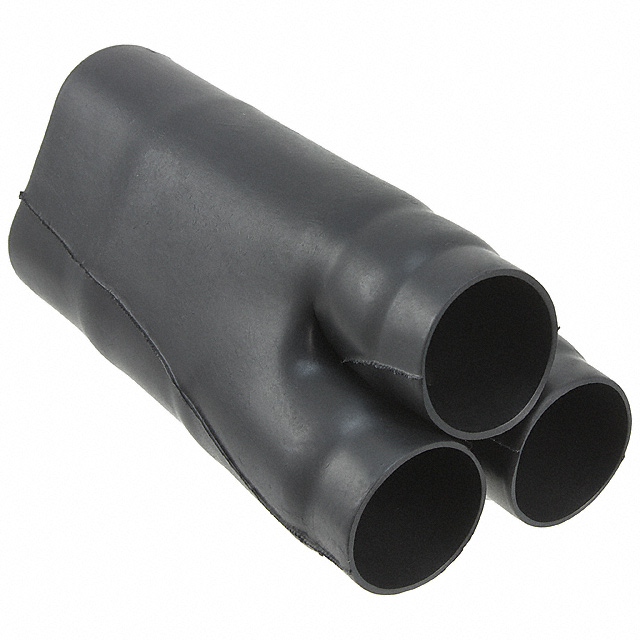

HEATSHRINK BOOT BRKOUT 3:1 SZ34

Part	Material	Shell Size - Insert	Color	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Large Recovered Length	Large Recovered Length	Type	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Total Length Recovered	Total Length Recovered	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Small Recovered Length	Small Recovered Length	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]
TE Connectivity Aerospace, Defense and Marine 462A034-3-00-0	Polyolefin (PO) Semi-Rigid	34	Black	0.76 "	19.3 mm	2.42 in	61.47 mm	Boot Transition - Breakout 3:1	38.61 mm	1.52 in	5.32 in	135.13 mm	9.65 mm	0.38 "	2.9 in	73.66 mm	18.8 mm	0.74 in
TE Connectivity Aerospace, Defense and Marine 462A034-4/42-0	Polyolefin (PO) Flexible	34	Black	0.76 "	19.3 mm	2.421 in	61.49 mm	Boot Transition - Breakout 3:1	38.61 mm	1.52 in	5.319 in	135.1 mm	9.7 mm	0.382 "	2.902 in	73.71 mm	18.8 mm	0.74 in
TE Connectivity Aerospace, Defense and Marine 462A034-12-0	Fluoroelastomer (FKM) Flexible	34	Black	0.76 "	19.3 mm	2.421 in	61.49 mm	Boot Transition - Breakout 3:1	38.61 mm	1.52 in	5.319 in	135.1 mm	9.7 mm	0.382 "	2.902 in	73.71 mm	18.8 mm	0.74 in
TE Connectivity Aerospace, Defense and Marine 462A034-4/86-0-CS8701
TE Connectivity Aerospace, Defense and Marine 462A034-25-0	Elastomer Semi-Rigid	34	Black	0.76 "	19.3 mm	2.421 in	61.49 mm	Boot Transition - Breakout 3:1	38.61 mm	1.52 in	5.319 in	135.1 mm	9.7 mm	0.382 "	2.902 in	73.71 mm	18.8 mm	0.74 in
