A10WBM-P Series
Manufacturer: ODU
Beta
⌘K

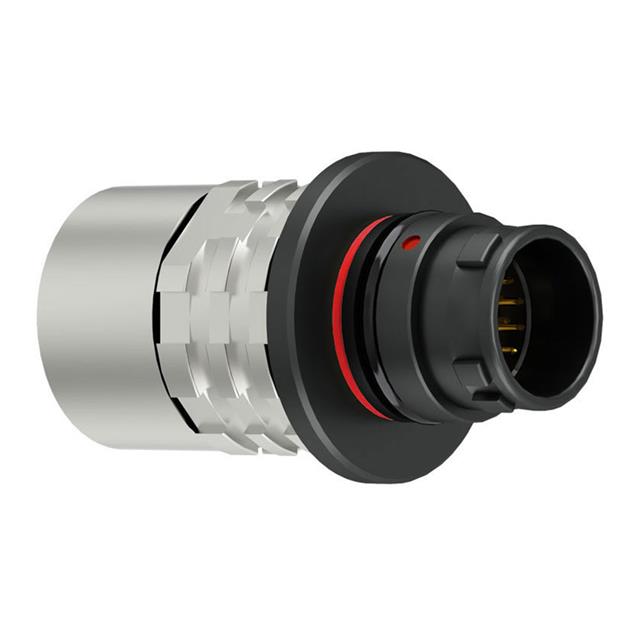

ODU AMC HD PLUG, STY 1, SZ 0, SE
| Part | Fastening Type | Features | Shell Size - Insert [custom] | Backshell Material, Plating | Shielding | Mounting Type | Current Rating (Amps) | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Number of Positions [custom] | Number of Positions [custom] | Orientation | Applications | Shell Finish | Ingress Protection | Cable Opening | Cable Opening | Primary Material | Shell Material | Contact Finish - Mating | Color | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Material Flammability Rating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Detent Lock Push-Pull | Backshell | 0 | Brass Ruthenium over Electroless Nickel | Shielded | Free Hanging (In-Line) | 1 A 5 A | Copper Alloy | 50 µin | 1.27 µm | Polyetheretherketone (PEEK) | 2 | 10 | B | Industrial Medical Military | Ruthenium over Electroless Nickel | IP68 - Dust Tight Waterproof | 0.276 in | 7 mm | Metal | Brass | Gold | Black Silver | -51 °C | 125 °C | Plug Male Pins | UL94 V-0 | ||
Detent Lock Push-Pull | Backshell | 0 | Brass Ruthenium over Electroless Nickel | Shielded | Free Hanging (In-Line) | Copper Alloy | 50 µin | 1.27 µm | Polyetheretherketone (PEEK) | B | Industrial Medical Military | Ruthenium over Electroless Nickel | IP68 - Dust Tight Waterproof | 0.276 in | 7 mm | Metal | Brass | Gold | Black Silver | -51 °C | 125 °C | Plug Male Pins | UL94 V-0 | 16 | ||||
Detent Lock Push-Pull | Backshell | 0 | Brass Ruthenium over Electroless Nickel | Shielded | Free Hanging (In-Line) | 1 A 5 A | Copper Alloy | 50 µin | 1.27 µm | Polyetheretherketone (PEEK) | B | Industrial Medical Military | Ruthenium over Electroless Nickel | IP68 - Dust Tight Waterproof | 0.276 in | 7 mm | Metal | Brass | Gold | Black Silver | -51 °C | 125 °C | Plug Male Pins | UL94 V-0 | 9 |
