EPM15 Series

Catalog

AC/DC CONVERTER 3.3V 10W

Part	Approval Agency	Current - Output 1	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Power (Watts)	Voltage - Isolation	Applications	Type	Number of Outputs	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Features	Package / Case	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]

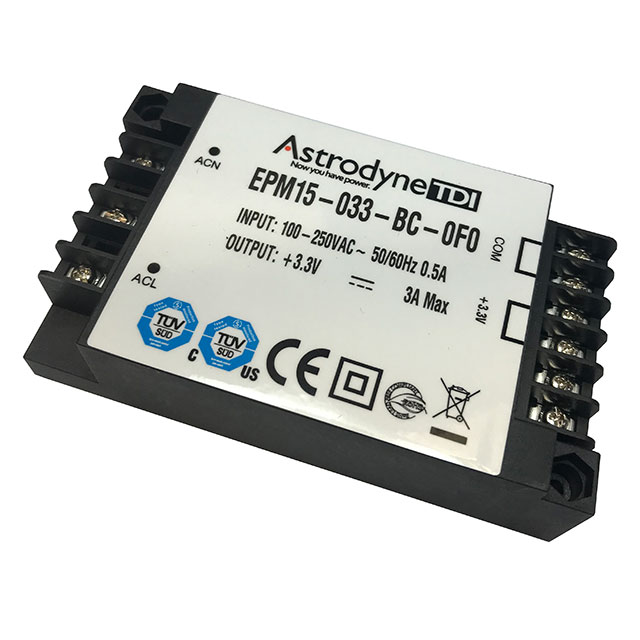

Astrodyne TDI EPM15-033-BC-0F0	CB CE cTUVus TUV	3 A	1 in	2.16 in	25.4 mm	95.8 mm	3.77 "	54.9 mm	70 %	10 W	4000 V	Medical	Enclosed	1	60601-1	70 °C	-20 °C	3.3 V	Chassis Mount	80 VAC	275 VAC	Universal Input
Astrodyne TDI EPM15-240-BE-0F0	CB CE cTUVus TUV		0.79 in	1.77 in	20 mm	65 mm	2.56 in	45 mm	70 %	15 W		Medical	Enclosed	1		70 °C	-20 °C	24 V	Through Hole	80 VAC	275 VAC	Universal Input	5-DIP Module 4 Leads	630 mA

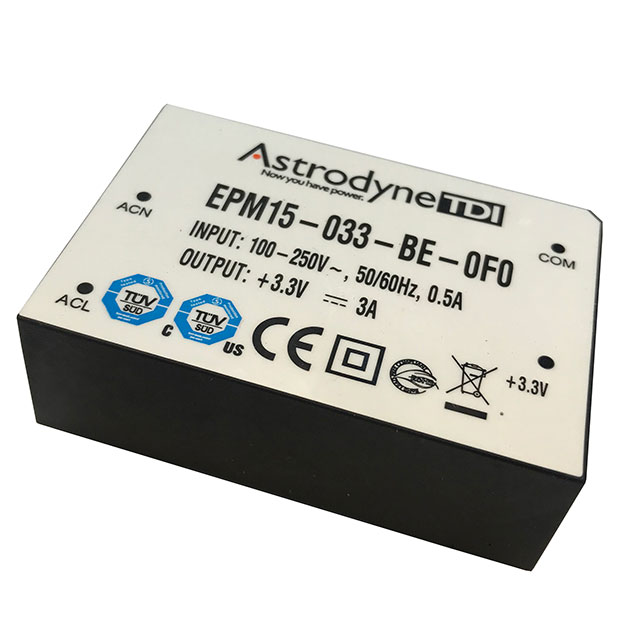

Astrodyne TDI EPM15-033-BE-0F0	CB CE cTUVus TUV		0.79 in	1.77 in	20 mm	65 mm	2.56 in	45 mm	70 %	10 W		Medical	Enclosed	1		70 °C	-20 °C	3.3 V	Through Hole	80 VAC	275 VAC	Universal Input	5-DIP Module 4 Leads	3 A
Astrodyne TDI EPM15-240-BC-0F0	CB CE cTUVus TUV	630 mA	1 in	2.16 in	25.4 mm	95.8 mm	3.77 "	54.9 mm	70 %	15 W	4000 V	Medical	Enclosed	1	60601-1	70 °C	-20 °C	24 V	Chassis Mount	80 VAC	275 VAC	Universal Input
Astrodyne TDI EPM15-180-BC-0F0	CB CE cTUVus TUV	830 mA	1 in	2.16 in	25.4 mm	95.8 mm	3.77 "	54.9 mm	70 %	15 W	4000 V	Medical	Enclosed	1	60601-1	70 °C	-20 °C	18 V	Chassis Mount	80 VAC	275 VAC	Universal Input
Astrodyne TDI EPM15-180-BE-0F0	CB CE cTUVus TUV		0.79 in	1.77 in	20 mm	65 mm	2.56 in	45 mm	70 %	15 W		Medical	Enclosed	1		70 °C	-20 °C	18 V	Through Hole	80 VAC	275 VAC	Universal Input	5-DIP Module 4 Leads	830 mA
Astrodyne TDI EPM15-090-BC-0F0	CB CE cTUVus TUV	1.67 A	1 in	2.16 in	25.4 mm	95.8 mm	3.77 "	54.9 mm	70 %	15 W	4000 V	Medical	Enclosed	1	60601-1	70 °C	-20 °C	9 V	Chassis Mount	80 VAC	275 VAC	Universal Input
Astrodyne TDI EPM15-090-BP-0F0	CB CE cTUVus TUV		0.91 in	1.66 "		62.5 mm	2.46 "		70 %	12 W		Medical	Open Frame	1		70 °C	-20 °C	9 V	Through Hole	80 VAC	275 VAC	Universal Input	4-DIP Module	1.33 A	23 mm	42.2 mm
Astrodyne TDI EPM15-150-BC-0F0	CB CE cTUVus TUV	1 A	1 in	2.16 in	25.4 mm	95.8 mm	3.77 "	54.9 mm	70 %	15 W	4000 V	Medical	Enclosed	1	60601-1	70 °C	-20 °C	15 V	Chassis Mount	80 VAC	275 VAC	Universal Input
Astrodyne TDI EPM15-050-BE-0F0	CB CE cTUVus TUV		0.79 in	1.77 in	20 mm	65 mm	2.56 in	45 mm	70 %	15 W		Medical	Enclosed	1		70 °C	-20 °C	5 V	Through Hole	80 VAC	275 VAC	Universal Input	5-DIP Module 4 Leads	3 A
