NPTC231 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

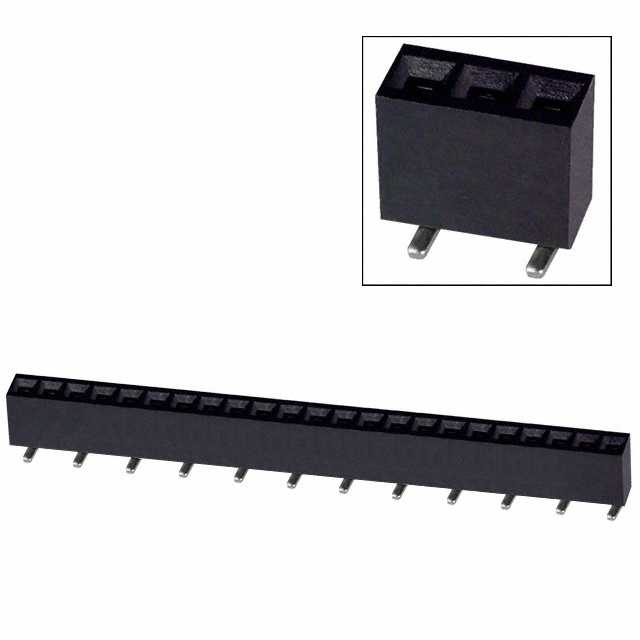

CONN HDR 23POS 0.1 TIN SMD
| Part | Contact Shape | Contact Material | Insulation Material | Material Flammability Rating | Insulation Height | Insulation Height | Number of Rows | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions | Number of Positions Loaded | Mounting Type | Termination | Voltage Rating | Pitch - Mating | Pitch - Mating | Fastening Type | Current Rating (Amps) | Insulation Color | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | UL94 V-0 | 0.28 in | 7.1 mm | 1 | Tin | -40 C | 105 ░C | Header Top or Bottom Entry | 23 | All | Surface Mount | Solder | 250 V | 0.1 " | 2.54 mm | Push-Pull | 3 A | Black | Female Socket |
