2120948 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

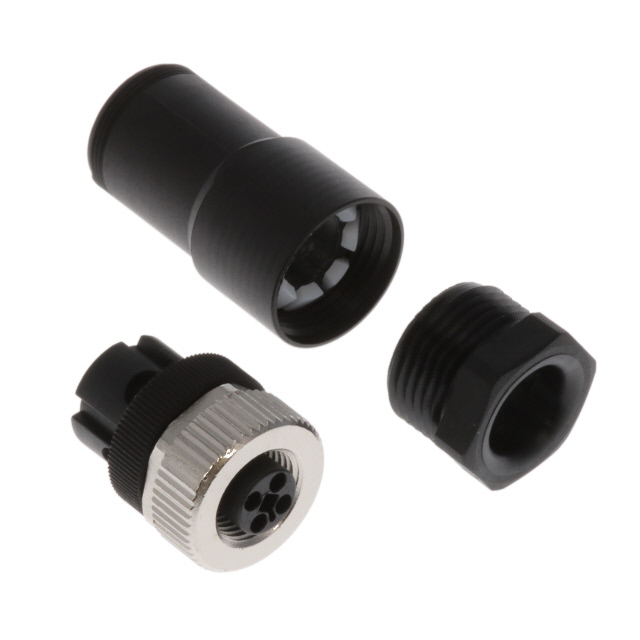

CONN PLUG FMALE 4POS GOLD
| Part | Shell Size - Insert | Features | Connector Type | Insert Material | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage Rating | Shielding | Primary Material | Orientation | Contact Material | Current Rating (Amps) | Backshell Material, Plating | Number of Positions | Ingress Protection | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | M12-4 | Backshell Coupling Nut | Female Sockets Plug | Nylon Polyamide (PA) | Gold | 85 °C | -40 °C | Free Hanging (In-Line) | 60 VDC | Unshielded | Plastic | T | Brass | 12 A | Nylon Polyamide (PA) | 4 | IP67 - Dust Tight Waterproof | 0.394 in | 8 mm | 10 mm | 0.315 in |
