TPA6205A1 Series

1.25-W, mono, analog input Class-AB audio amplifier with 1.8-V input logic

Catalog

1.25-W, mono, analog input Class-AB audio amplifier with 1.8-V input logic

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [custom]	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Type	Mounting Type	Features	Max Output Power x Channels @ Load	Board Type	Utilized IC / Part	Supplied Contents	Amplifier Type
Texas Instruments TPA6205A1DGN	85 °C	-40 °C	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	1-Channel (Mono)	2.5 V	5.5 V	8-HVSSOP	Class AB	Surface Mount	Depop Differential Inputs Shutdown Thermal Protection	1 1.25 W

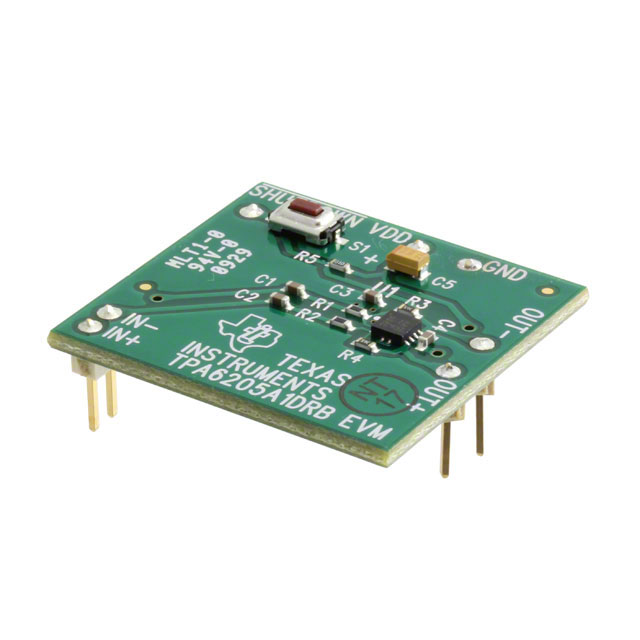

Texas Instruments TPA6205A1EVM					1-Channel (Mono)	2.5 V	5.5 V					1 1.25 W	Fully Populated	TPA6205A1	Board(s)	Class AB
Texas Instruments TPA6205A1DGNRG4	85 °C	-40 °C	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	1-Channel (Mono)	2.5 V	5.5 V	8-HVSSOP	Class AB	Surface Mount	Depop Differential Inputs Shutdown Thermal Protection	1 1.25 W
Texas Instruments TPA6205A1DRBR	85 °C	-40 °C	8-VDFN Exposed Pad		1-Channel (Mono)	2.5 V	5.5 V	8-SON (3x3)	Class AB	Surface Mount	Depop Differential Inputs Shutdown Thermal Protection	1 1.25 W
Texas Instruments TPA6205A1DGNG4	85 °C	-40 °C	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	1-Channel (Mono)	2.5 V	5.5 V	8-HVSSOP	Class AB	Surface Mount	Depop Differential Inputs Shutdown Thermal Protection	1 1.25 W
Texas Instruments TPA6205A1DGNR	85 °C	-40 °C	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	1-Channel (Mono)	2.5 V	5.5 V	8-HVSSOP	Class AB	Surface Mount	Depop Differential Inputs Shutdown Thermal Protection	1 1.25 W

Catalog

1.25-W, mono, analog input Class-AB audio amplifier with 1.8-V input logic

Key Features

• 1.25 W Into 8-Ω From a 5-V Supply at THD = 1%(Typical)Shutdown Pin has 1.8-V Compatible ThresholdsLow Supply Current: 1.7 mA TypicalShutdown Current < 10 µAOnly Five External ComponentsImproved PSRR (90 dB) and Wide SupplyVoltage (2.5 V to 5.5 V) for Direct BatteryOperationFully Differential Design Reduces RFRectificationImproved CMRR Eliminates Two InputCoupling CapacitorsC(BYPASS)Is Optional Due to Fully DifferentialDesign and High PSRRAvailable in 3-mm × 3-mm QFN Package (DRB)Available in an 8-Pin PowerPAD™ MSOP (DGN)Available in a 2-mm ™ 2-mm MicroStar Junior™BGA Package (ZQV)1.25 W Into 8-Ω From a 5-V Supply at THD = 1%(Typical)Shutdown Pin has 1.8-V Compatible ThresholdsLow Supply Current: 1.7 mA TypicalShutdown Current < 10 µAOnly Five External ComponentsImproved PSRR (90 dB) and Wide SupplyVoltage (2.5 V to 5.5 V) for Direct BatteryOperationFully Differential Design Reduces RFRectificationImproved CMRR Eliminates Two InputCoupling CapacitorsC(BYPASS)Is Optional Due to Fully DifferentialDesign and High PSRRAvailable in 3-mm × 3-mm QFN Package (DRB)Available in an 8-Pin PowerPAD™ MSOP (DGN)Available in a 2-mm ™ 2-mm MicroStar Junior™BGA Package (ZQV)

Description

The TPA6205A1 device is a 1.25-W mono fully differential amplifier designed to drive a speaker with at least 8-Ω impedance while consuming less than 37 mm2 (ZQV package option) total printed-circuit-board (PCB) area in most applications. This device operates from 2.5 V to 5.5 V, drawing only 1.7 mA of quiescent supply current. The TPA6205A1 is available in the space-saving 2-mm × 2-mm MicroStar Junior BGA package, and the space saving 3-mm × 3-mm QFN (DRB) package. Features like 85-dB PSRR from 90 Hz to 5 kHz, improved RF-rectification immunity, and small PCB area makes the TPA6205A1 ideal for wireless handsets. A fast start-up time of 4s with minimal pop makes the TPA6205A1 ideal for PDA applications. The TPA6205A1 device is a 1.25-W mono fully differential amplifier designed to drive a speaker with at least 8-Ω impedance while consuming less than 37 mm2 (ZQV package option) total printed-circuit-board (PCB) area in most applications. This device operates from 2.5 V to 5.5 V, drawing only 1.7 mA of quiescent supply current. The TPA6205A1 is available in the space-saving 2-mm × 2-mm MicroStar Junior BGA package, and the space saving 3-mm × 3-mm QFN (DRB) package. Features like 85-dB PSRR from 90 Hz to 5 kHz, improved RF-rectification immunity, and small PCB area makes the TPA6205A1 ideal for wireless handsets. A fast start-up time of 4s with minimal pop makes the TPA6205A1 ideal for PDA applications.
