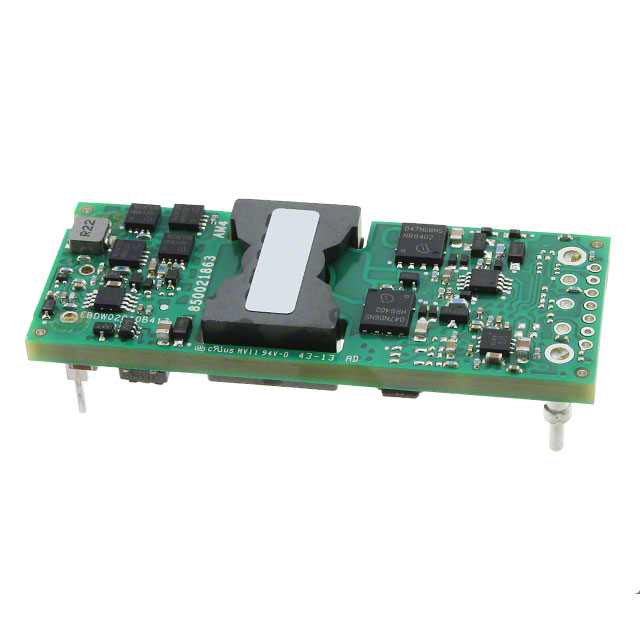

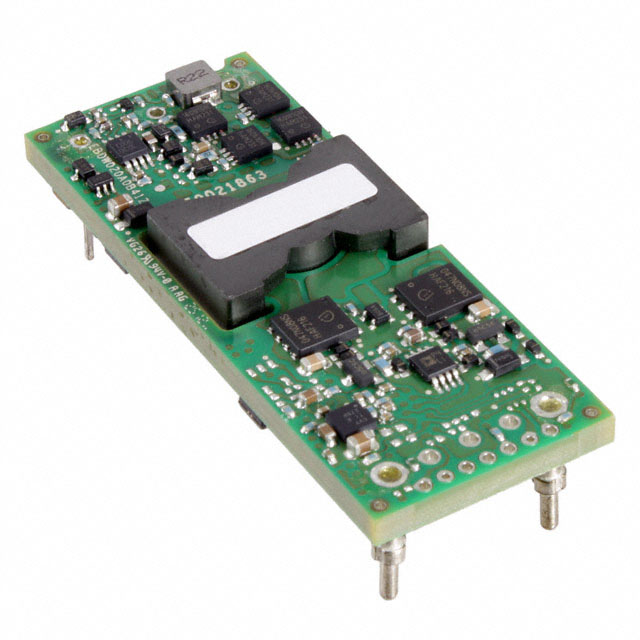

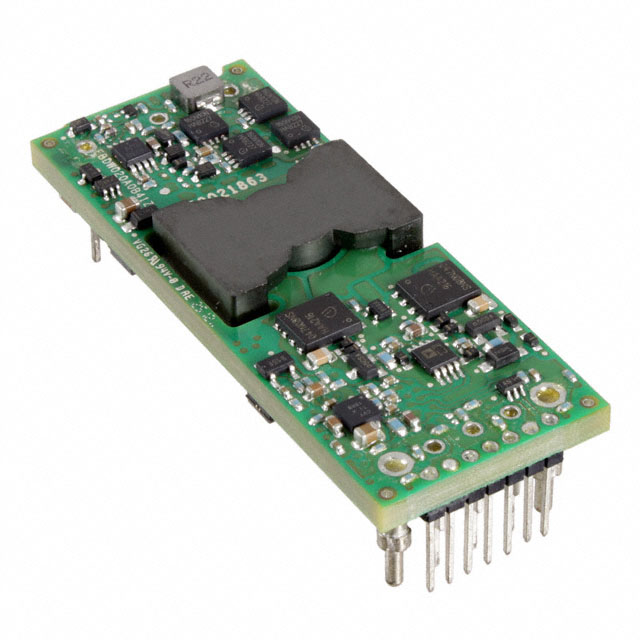

EBVW020 Series
Manufacturer: OmniOn Power™
Beta
⌘K
DC DC CONVERTER 12V 240W
| Part | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Number of Outputs | Efficiency | Current - Output (Max) [Max] | Features | Applications | Power (Watts) | Voltage - Isolation | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Control Features | Mounting Type | Voltage - Input (Min) [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 OmniOn Power™ | 75 V | 0.44 in | 58.4 mm | 11.1 mm | 0.9 in | 22.9 mm | 2.3 in | 8-DIP Module 1/8 Brick | 1 | 95.2 % | 20 A | Remote On/Off UVLO | ITE (Commercial) | 240 Watts | 2250 VDC | 12 V | 85 °C | -40 C | Active High Enable | Through Hole | 36 V | Intermediate Bus Converter |
OmniOn Power™ | 75 V | 0.44 in | 58.4 mm | 11.1 mm | 0.9 in | 22.9 mm | 2.3 in | 8-DIP Module 1/8 Brick | 1 | 95.2 % | 20 A | Remote On/Off UVLO | ITE (Commercial) | 240 Watts | 2250 VDC | 12 V | 85 °C | -40 C | Active High Enable | Through Hole | 36 V | Intermediate Bus Converter |
 OmniOn Power™ | 75 V | 0.44 in | 58.4 mm | 11.1 mm | 0.9 in | 22.9 mm | 2.3 in | 8-DIP Module 1/8 Brick | 1 | 95.2 % | 20 A | Remote On/Off UVLO | ITE (Commercial) | 240 Watts | 2250 VDC | 12 V | 85 °C | -40 C | Active High Enable | Through Hole | 36 V | Intermediate Bus Converter |
OmniOn Power™ | 75 V | 0.44 in | 58.4 mm | 11.1 mm | 0.9 in | 22.9 mm | 2.3 in | 8-DIP Module 1/8 Brick | 1 | 95.2 % | 20 A | Remote On/Off UVLO | ITE (Commercial) | 240 Watts | 2250 VDC | 12 V | 85 °C | -40 C | Active High Enable | Through Hole | 36 V | Intermediate Bus Converter |
 OmniOn Power™ | 75 V | 0.44 in | 58.4 mm | 11.1 mm | 0.9 in | 22.9 mm | 2.3 in | 8-DIP Module 1/8 Brick | 1 | 95.2 % | 20 A | OCP OTP OVP Remote On/Off UVLO | ITE (Commercial) | 240 Watts | 2250 VDC | 12 V | 85 °C | -40 C | Active Low Enable | Through Hole | 36 V | Intermediate Bus Converter |
OmniOn Power™ | 75 V | 0.44 in | 58.4 mm | 11.1 mm | 0.9 in | 22.9 mm | 2.3 in | 8-DIP Module 1/8 Brick | 1 | 95.2 % | 20 A | Remote On/Off UVLO | ITE (Commercial) | 240 Watts | 2250 VDC | 12 V | 85 °C | -40 C | Active High Enable | Through Hole | 36 V | Intermediate Bus Converter |
OmniOn Power™ | 75 V | 0.44 in | 58.4 mm | 11.1 mm | 0.9 in | 22.9 mm | 2.3 in | 8-DIP Module 1/8 Brick | 1 | 95.2 % | 20 A | Remote On/Off UVLO | ITE (Commercial) | 240 Watts | 2250 VDC | 12 V | 85 °C | -40 C | Active High Enable | Through Hole | 36 V | Intermediate Bus Converter |
OmniOn Power™ | 75 V | 0.44 in | 58.4 mm | 11.1 mm | 0.9 in | 22.9 mm | 2.3 in | 8-DIP Module 1/8 Brick | 1 | 95.2 % | 20 A | Remote On/Off UVLO | ITE (Commercial) | 240 Watts | 2250 VDC | 12 V | 85 °C | -40 C | Active High Enable | Through Hole | 36 V | Intermediate Bus Converter |
OmniOn Power™ | 75 V | 0.44 in | 58.4 mm | 11.1 mm | 0.9 in | 22.9 mm | 2.3 in | 8-DIP Module 1/8 Brick | 1 | 95.2 % | 20 A | OCP OTP OVP Remote On/Off UVLO | ITE (Commercial) | 240 Watts | 2250 VDC | 12 V | 85 °C | -40 C | Active Low Enable | Through Hole | 36 V | Intermediate Bus Converter |
OmniOn Power™ | 75 V | 0.44 in | 58.4 mm | 11.1 mm | 0.9 in | 22.9 mm | 2.3 in | 8-DIP Module 1/8 Brick | 1 | 95.2 % | 20 A | Remote On/Off UVLO | ITE (Commercial) | 240 Watts | 2250 VDC | 12 V | 85 °C | -40 C | Active High Enable | Through Hole | 36 V | Intermediate Bus Converter |
