737-007 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 7POS 0.156

Part	Material - Insulation	Termination Rows	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Gender	Card Type	Number of Rows	Mounting Type	Contact Finish	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Termination	Number of Positions/Bay/Row	Contact Material	Read Out	Card Thickness [Max]	Card Thickness [Min]	Color
EDAC Inc. 737-007-540-106	Polyester Thermoplastic	1	3.96 mm	0.156 in	30 Áin	0.76 Ám	Female	Non Specified - Single Edge	1	Through Hole	Gold	7	-40 C	105 ░C	Cantilever	Press-Fit Wire Wrap	7	Copper Alloy	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Black

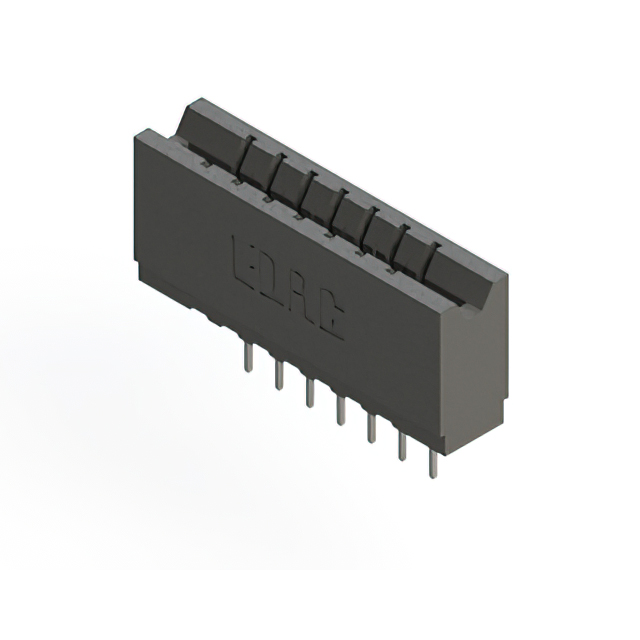

EDAC Inc. 737-007-522-106	Polyester Thermoplastic	1	3.96 mm	0.156 in	30 Áin	0.76 Ám	Female	Non Specified - Single Edge	1	Through Hole	Gold	7	-40 C	105 ░C	Cantilever	Press-Fit	7	Copper Alloy	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Black
EDAC Inc. 737-007-522-101	Polyester Thermoplastic	1	3.96 mm	0.156 in	30 Áin	0.76 Ám	Female	Non Specified - Single Edge	1	Through Hole	Gold	7	-40 C	105 ░C	Cantilever	Press-Fit	7	Copper Alloy	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Black

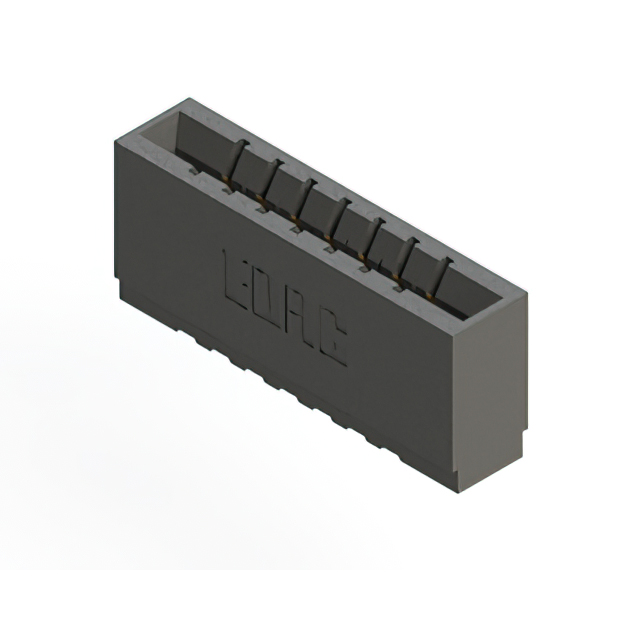

EDAC Inc. 737-007-525-101	Polyester Thermoplastic	1	3.96 mm	0.156 in	30 Áin	0.76 Ám	Female	Non Specified - Single Edge	1	Through Hole	Gold	7	-40 C	105 ░C	Cantilever	Press-Fit	7	Copper Alloy	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Black

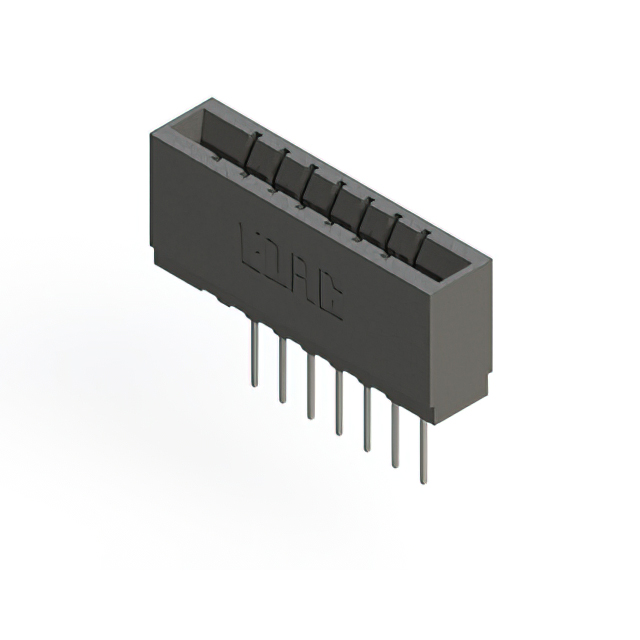

EDAC Inc. 737-007-540-101	Polyester Thermoplastic	1	3.96 mm	0.156 in	30 Áin	0.76 Ám	Female	Non Specified - Single Edge	1	Through Hole	Gold	7	-40 C	105 ░C	Cantilever	Press-Fit Wire Wrap	7	Copper Alloy	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Black
EDAC Inc. 737-007-545-106	Polyester Thermoplastic	1	3.96 mm	0.156 in	30 Áin	0.76 Ám	Female	Non Specified - Single Edge	1	Through Hole	Gold	7	-40 C	105 ░C	Cantilever	Press-Fit Wire Wrap	7	Copper Alloy	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Black
