342142 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

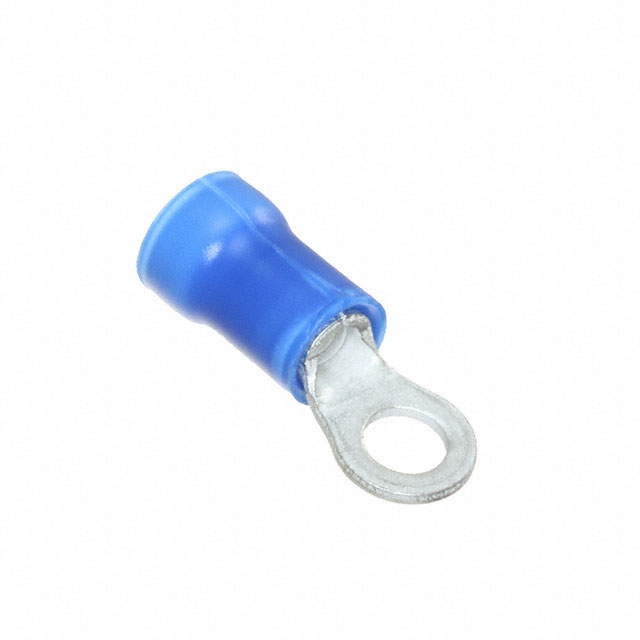

CONN RING CIRC 14-16AWG #6 CRIMP
| Part | Termination | Contact Finish | Thickness | Thickness | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Contact Material | Length - Overall | Length - Overall | Stud/Tab Size | Terminal Type | Mounting Type | Insulation | Features | Color | Material - Insulation | Width - Outer Edges [y] | Width - Outer Edges [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | Tin | 0.031 in | 0.79 mm | 4.9 mm | 3 mm | 0.193 in | 0.118 in | Copper | 18.29 mm | 0.72 " | 6 Stud | Circular | Free Hanging (In-Line) | Insulated | Serrated Termination | Blue | Poly-Vinyl Chloride (PVC) | 0.252 in | 6.4 mm |
