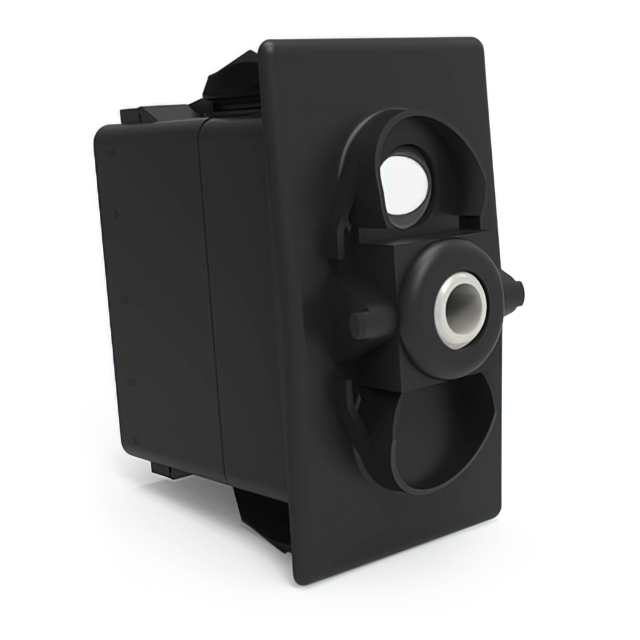

VLD2A60B Series
Manufacturer: Carling Technologies
Beta
⌘K
SWITCH ROCKER DPDT 20A 12V
| Part | Electrical Life | Mechanical Life | Circuit | Actuator Marking | Mounting Type | Illumination Type, Color | Voltage Rating - DC | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Illumination Voltage (Nominal) | Termination Style | Actuator Type | Ingress Protection | Current Rating (Amps) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 100000 Cycles | 100000 Cycles | DPDT | Varies by Cap | Panel Mount Snap-In | Incandescent | 12 V | CSA UL VDE | 85 °C | -40 C | Mom-Off-Mom | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Actuator Arm Cap Required Illuminated | IP66 IP68 | 20 A | 36.83 mm | 21.08 mm |
