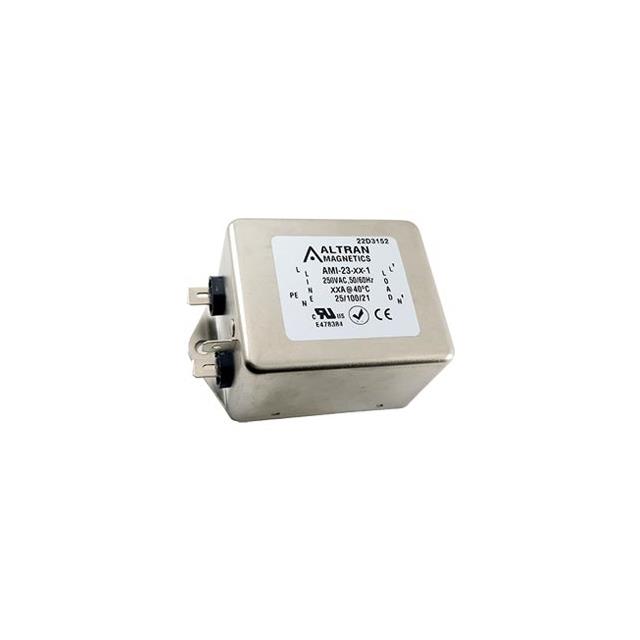

AMI-23 Series

Catalog

GENERAL EMI FILTER WITH HIGH ATTENUATION PERFORMANCE

Part	Frequency - Operating	Filter Type	Applications	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Approval Agency	Voltage - Rated AC	Mounting Type	Current	Inductance
Altran Magnetics, LLC AMI-23B-20-3	DC ~ 400Hz	Single Phase	Medical	Quick Connect Threaded Post (M4)	100 °C	-25 °C	Single Stage	CE cURus	250 V	Chassis Mount	20 A	4 mH
Altran Magnetics, LLC AMI-23B-20-1	DC ~ 400Hz	Single Phase	Medical		100 °C	-25 °C	Single Stage	CE cURus	250 V	Chassis Mount	20 A	4 mH
Altran Magnetics, LLC AMI-23-3-1	DC ~ 400Hz	Single Phase	General Purpose	Quick Connect	100 °C	-25 °C	Single Stage	CE cURus	250 V	Chassis Mount	3 A	14 mH
Altran Magnetics, LLC AMI-23B-16-3	DC ~ 400Hz	Single Phase	Medical	Quick Connect Wire Leads	100 °C	-25 °C	Single Stage	CE cURus	250 V	Chassis Mount	16 A	4 mH
Altran Magnetics, LLC AMI-23-16-3	DC ~ 400Hz	Single Phase	General Purpose	Quick Connect Wire Leads	100 °C	-25 °C	Single Stage	CE cURus	250 V	Chassis Mount	16 A	4 mH
Altran Magnetics, LLC AMI-23-10-1	DC ~ 400Hz	Single Phase	General Purpose	Quick Connect	100 °C	-25 °C	Single Stage	CE cURus	250 V	Chassis Mount	10 A	8 mH
Altran Magnetics, LLC AMI-23-4-1	DC ~ 400Hz	Single Phase	General Purpose	Quick Connect	100 °C	-25 °C	Single Stage	CE cURus	250 V	Chassis Mount	4 A	14 mH
Altran Magnetics, LLC AMI-23-3-3	DC ~ 400Hz	Single Phase	General Purpose	Quick Connect	100 °C	-25 °C	Single Stage	CE cURus	250 V	Chassis Mount	3 A	14 mH
Altran Magnetics, LLC AMI-23-8-3	DC ~ 400Hz	Single Phase	General Purpose	Quick Connect	100 °C	-25 °C	Single Stage	CE cURus	250 V	Chassis Mount	8 A	8 mH
Altran Magnetics, LLC AMI-23-20-1	DC ~ 400Hz	Single Phase	General Purpose		100 °C	-25 °C	Single Stage	CE cURus	250 V	Chassis Mount	20 A	4 mH
