172173 Series

KK 396 Breakaway Header, Right-Angle Square Pin, 7 Circuits, 0.38µm Gold (Au) Plating, Mating Pin Length 11.43mm

Manufacturer: Molex

Catalog

KK 396 Breakaway Header, Right-Angle Square Pin, 7 Circuits, 0.38µm Gold (Au) Plating, Mating Pin Length 11.43mm

Part	Shrouding	Termination	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Fastening Type	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Style	Contact Shape	Mounting Type	Contact Finish - Post	Connector Type	Applications	Number of Positions	Contact Finish - Mating
Molex 1721730003	Unshrouded	Solder	11.43 mm	0.45 in	60 µin	1.52 µm	Polyester Glass Filled	0.156 in	3.96 mm	Male Pin	3.73 mm	0.147 in	UL94 V-0	0.3 in	7.62 mm	Push-Pull	Black	All	60 Áin	1.52 Ám	1	Board to Cable/Wire	Square	Through Hole Right Angle	Tin	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications

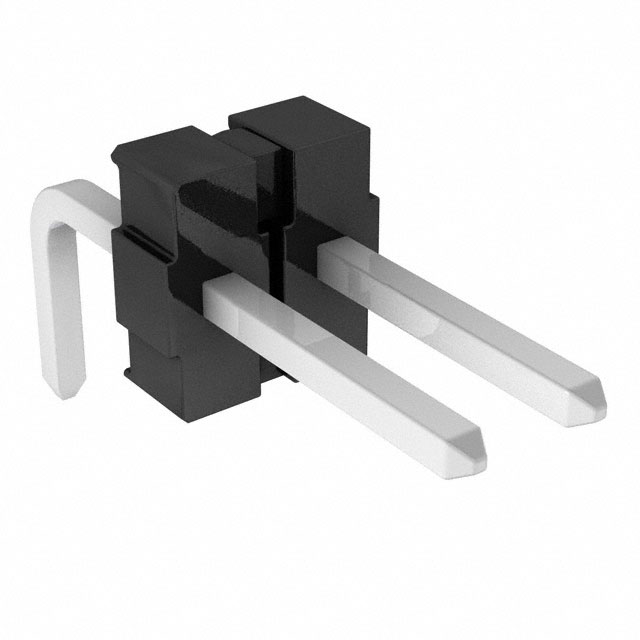

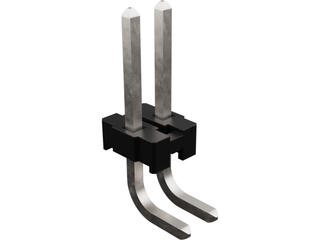

Molex 1721730002	Unshrouded	Solder	11.43 mm	0.45 in	60 µin	1.52 µm	Polyester Glass Filled	0.156 in	3.96 mm	Male Pin	3.73 mm	0.147 in	UL94 V-0	0.3 in	7.62 mm	Push-Pull	Black	All	60 Áin	1.52 Ám	1	Board to Cable/Wire	Square	Through Hole Right Angle	Tin	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications	2

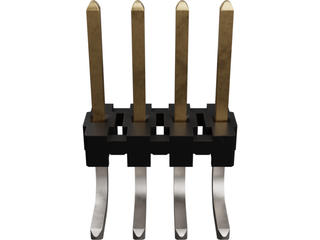

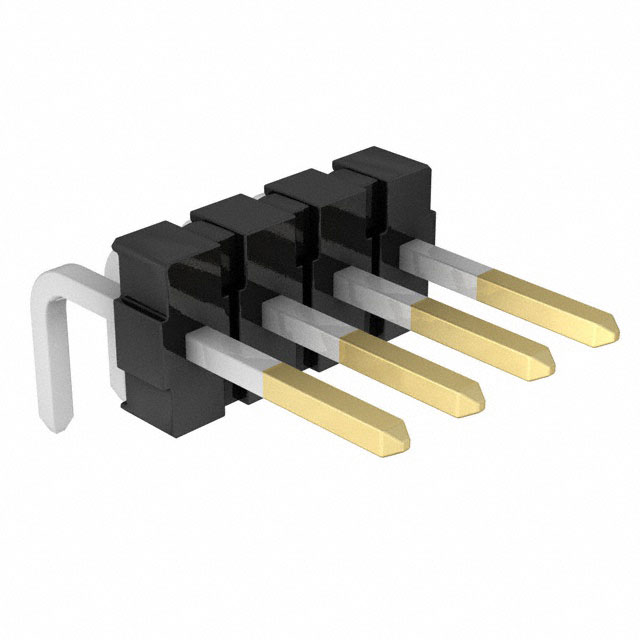

Molex 1721731004	Unshrouded	Solder	11.43 mm	0.45 in	100 µin	2.54 µm	Polyester Glass Filled	0.156 in	3.96 mm	Male Pin	3.73 mm	0.147 in	UL94 V-0	0.3 in	7.62 mm	Push-Pull	Black	All	15 µin	0.38 µm	1	Board to Cable/Wire	Square	Through Hole Right Angle	Tin	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications	4	Gold
Molex 1721730024	Unshrouded	Solder	11.43 mm	0.45 in	60 µin	1.52 µm	Polyester Glass Filled	0.156 in	3.96 mm	Male Pin	3.73 mm	0.147 in	UL94 V-0	0.3 in	7.62 mm	Push-Pull	Black	All	60 Áin	1.52 Ám	1	Board to Cable/Wire	Square	Through Hole Right Angle	Tin	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications	24
Molex 1721731006	Unshrouded	Solder	11.43 mm	0.45 in	100 µin	2.54 µm	Polyester Glass Filled	0.156 in	3.96 mm	Male Pin	3.73 mm	0.147 in	UL94 V-0	0.3 in	7.62 mm	Push-Pull	Black	All	15 µin	0.38 µm	1	Board to Cable/Wire	Square	Through Hole Right Angle	Tin	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications	6	Gold
Molex 1721730008	Unshrouded	Solder	11.43 mm	0.45 in	60 µin	1.52 µm	Polyester Glass Filled	0.156 in	3.96 mm	Male Pin	3.73 mm	0.147 in	UL94 V-0	0.3 in	7.62 mm	Push-Pull	Black	All	60 Áin	1.52 Ám	1	Board to Cable/Wire	Square	Through Hole Right Angle	Tin	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications	8
Molex 1721731005	Unshrouded	Solder	11.43 mm	0.45 in	100 µin	2.54 µm	Polyester Glass Filled	0.156 in	3.96 mm	Male Pin	3.73 mm	0.147 in	UL94 V-0	0.3 in	7.62 mm	Push-Pull	Black	All	15 µin	0.38 µm	1	Board to Cable/Wire	Square	Through Hole Right Angle	Tin	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications		Gold

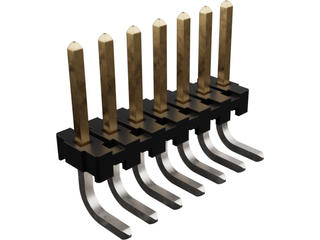

Molex 1721731007	Unshrouded	Solder	11.43 mm	0.45 in	100 µin	2.54 µm	Polyester Glass Filled	0.156 in	3.96 mm	Male Pin	3.73 mm	0.147 in	UL94 V-0	0.3 in	7.62 mm	Push-Pull	Black	All	15 µin	0.38 µm	1	Board to Cable/Wire	Square	Through Hole Right Angle	Tin	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications	7	Gold
Molex 1721730005	Unshrouded	Solder	11.43 mm	0.45 in	60 µin	1.52 µm	Polyester Glass Filled	0.156 in	3.96 mm	Male Pin	3.73 mm	0.147 in	UL94 V-0	0.3 in	7.62 mm	Push-Pull	Black	All	60 Áin	1.52 Ám	1	Board to Cable/Wire	Square	Through Hole Right Angle	Tin	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications
Molex 1721730006	Unshrouded	Solder	11.43 mm	0.45 in	60 µin	1.52 µm	Polyester Glass Filled	0.156 in	3.96 mm	Male Pin	3.73 mm	0.147 in	UL94 V-0	0.3 in	7.62 mm	Push-Pull	Black	All	60 Áin	1.52 Ám	1	Board to Cable/Wire	Square	Through Hole Right Angle	Tin	Breakaway Header	Automotive General Purpose Industrial Medical Telecommunications	6
