3121-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

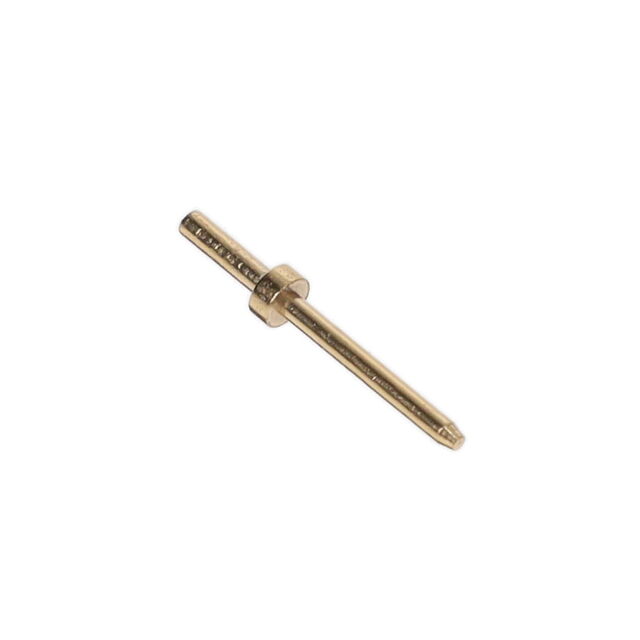

PIN RECEP GOLD SLDER MNT IN .023
| Part | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Mounting Hole Diameter | Mounting Hole Diameter | Terminal Type | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Board Thickness | Board Thickness | Contact Material | Contact Finish | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Overall [x] | Length - Overall [x] | Terminal Style | Insulation | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 50 µin | 1.27 µm | 1.91 mm | 0.075 " | 1.02 mm | 0.04 in | Solder | 0.58 mm | 0.023 in | PC Pin | 0.48 mm | 0.019 in | 0.157 in | 3.99 mm | 0.04 in | 1.02 mm | Brass Alloy | Gold | 0.017 in | 0.43 mm | 0.248 in | 6.3 mm | Single End | Non-Insulated | Through Hole |
