MAX989 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC COMPARATOR 2 GEN PUR 8SOIC

Part	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	CMRR, PSRR (Typ)	CMRR, PSRR (Typ)	Supplier Device Package	Hysteresis	Number of Elements	Voltage - Input Offset (Max)	Current - Input Bias (Max) [Max]	Current - Quiescent (Max) [Max]	Output Type	Propagation Delay (Max) [Max]	Mounting Type	Type	Package / Case	Package / Case [y]	Package / Case [x]	Applications	Qualification	Interface	Grade	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Channels [custom]	Function	Specifications	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Supplier Device Package [y]	Supplier Device Package [x]	Package / Case [custom]	Package / Case
Analog Devices Inc./Maxim Integrated MAX989ESA+	-1.25 V 2.5 V	2.75 V 5.5 V	85 °C	-40 °C	80 dB	80 dB	8-SOIC	3 mV	2	5 mV	1 pA	24 µA	CMOS Push-Pull Rail-to-Rail TTL	450 ns	Surface Mount	General Purpose	8-SOIC	3.9 mm	0.154 in
Analog Devices Inc./Maxim Integrated MAX989ESA+T	-1.25 V 2.5 V	2.75 V 5.5 V	85 °C	-40 °C	80 dB	80 dB	8-SOIC	3 mV	2	5 mV	1 pA	24 µA	CMOS Push-Pull Rail-to-Rail TTL	450 ns	Surface Mount	General Purpose	8-SOIC	3.9 mm	0.154 in
Analog Devices Inc./Maxim Integrated MAX989ESA+G002
Analog Devices Inc./Maxim Integrated MAX9890BETA/V+			85 °C	-40 °C			8-TDFN (3x3)								Surface Mount		8-WDFN Exposed Pad			Consumer Audio	AEC-Q100	Analog	Automotive	2.7 V	5.5 V	2	Noise Reduction	36 dB
Analog Devices Inc./Maxim Integrated MAX98937SEVSYS#
Analog Devices Inc./Maxim Integrated MAX9890AETA+															Surface Mount

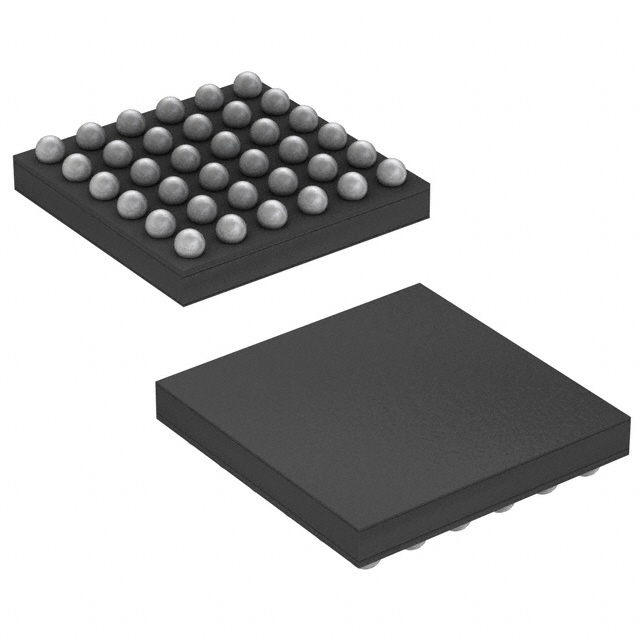

Analog Devices Inc./Maxim Integrated MAX9895AEWX+			85 °C	-40 °C			36-WLP						2-Channel (Stereo)		Surface Mount		36-WFBGA WLBGA							2.7 V	4.5 V				2	38 mW	2.57	2.57
Analog Devices Inc./Maxim Integrated MAX989ESA	-1.25 V 2.5 V	2.75 V 5.5 V	85 °C	-40 °C	80 dB	80 dB	8-SOIC	3 mV	2	5 mV	1 pA	24 µA	CMOS Push-Pull Rail-to-Rail TTL	450 ns	Surface Mount	General Purpose	8-SOIC	3.9 mm	0.154 in
Analog Devices Inc./Maxim Integrated MAX989EUA+	-1.25 V 2.5 V	2.75 V 5.5 V	85 °C	-40 °C	80 dB	80 dB	8-uMAX/uSOP	3 mV	2	5 mV	1 pA	24 µA	CMOS Push-Pull Rail-to-Rail TTL	450 ns	Surface Mount	General Purpose	8-MSOP 8-TSSOP																0.118 in	3 mm
Analog Devices Inc./Maxim Integrated MAX989EKA+T	-1.25 V 2.5 V	2.75 V 5.5 V	85 °C	-40 °C	80 dB	80 dB	SOT-23-8	3 mV	2	5 mV	1 pA	24 µA	CMOS Push-Pull Rail-to-Rail TTL	450 ns	Surface Mount	General Purpose	SOT-23-8
