076829 Series

Manufacturer: Molex

Catalog

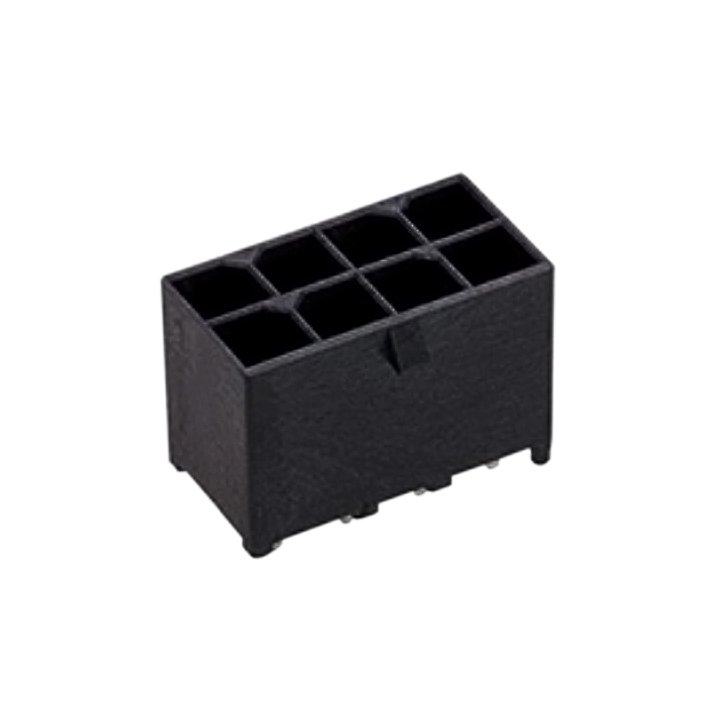

MEGA-FIT SLIM VT HDR 8CKT TIN TR

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Features	Voltage Rating	Insulation Height	Insulation Height	Contact Type	Insulation Color	Number of Positions	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Shrouding	Number of Rows	Fastening Type	Number of Positions Loaded	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Style	Contact Shape	Contact Finish - Post	Connector Type	Applications
Molex 0768298108	60 Áin	1.52 Ám	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	Copper Alloy	Solder	1.27 µm	50 µin	UL94 V-0	Board Guide	600 V	14.53 mm	0.572 in	Male Pin	Black	8	2.92 mm	0.115 in	0.224 in	5.7 mm	Shrouded - 4 Wall	2	Locking Ramp	All	Through Hole	0.224 in	5.7 mm	Varies by Wire Gauge	Board to Cable/Wire	Square	Tin	Header
Molex 0768290004	60 Áin	1.52 Ám	Liquid Crystal Polymer (LCP)			Copper	Solder	1.52 µm	60 µin	UL94 V-0	Board Guide Glow Wire Compliant		14.8 mm	0.583 in	Male Pin	Black	4	3.73 mm	0.147 in	0.224 in	5.7 mm	Shrouded - 4 Wall	2	Locking Ramp	All	Through Hole	0.224 in	5.7 mm		Board to Cable/Wire	Square	Tin	Header	Automotive General Purpose Industrial Telecommunications
Molex 0768290108	60 Áin	1.52 Ám	Liquid Crystal Polymer (LCP)			Copper	Solder	1.52 µm	60 µin	UL94 V-0	Board Guide Glow Wire Compliant		14.8 mm	0.583 in	Male Pin	Black	8	3.73 mm	0.147 in	0.224 in	5.7 mm	Shrouded - 4 Wall	2	Locking Ramp	All	Through Hole	0.224 in	5.7 mm		Board to Cable/Wire	Square	Tin	Header	Automotive General Purpose Industrial Telecommunications

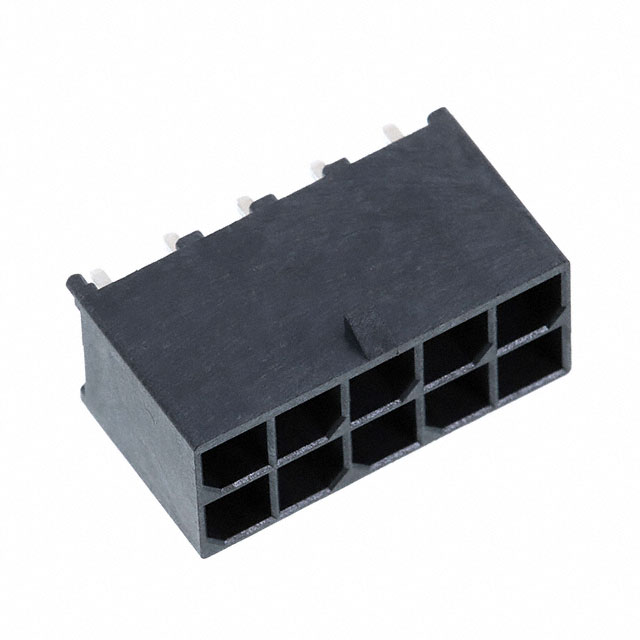

Molex 0768290110	60 Áin	1.52 Ám	Liquid Crystal Polymer (LCP)			Copper	Solder	1.52 µm	60 µin	UL94 V-0	Board Guide Glow Wire Compliant		14.8 mm	0.583 in	Male Pin	Black	10	3.73 mm	0.147 in	0.224 in	5.7 mm	Shrouded - 4 Wall	2	Locking Ramp	All	Through Hole	0.224 in	5.7 mm		Board to Cable/Wire	Square	Tin	Header	Automotive General Purpose Industrial Telecommunications

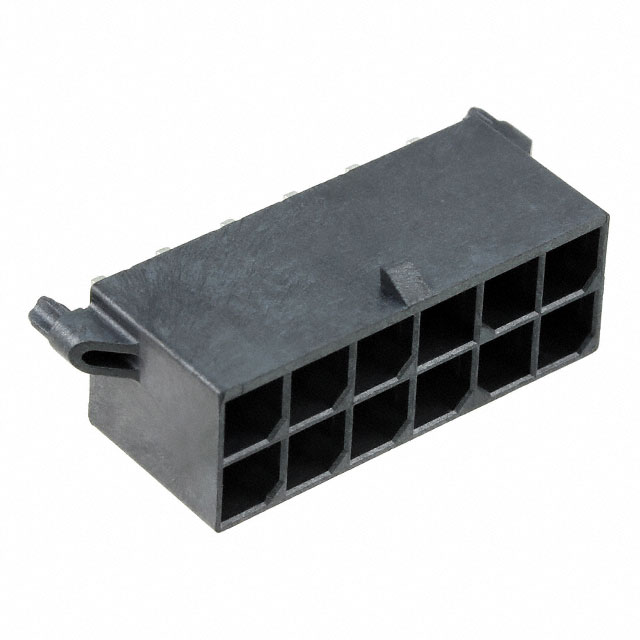

Molex 0768290012	60 Áin	1.52 Ám	Liquid Crystal Polymer (LCP)			Copper	Solder	1.52 µm	60 µin	UL94 V-0	Board Guide Glow Wire Compliant		14.8 mm	0.583 in	Male Pin	Black	12	3.73 mm	0.147 in	0.224 in	5.7 mm	Shrouded - 4 Wall	2	Locking Ramp	All	Through Hole	0.224 in	5.7 mm		Board to Cable/Wire	Square	Tin	Header	Automotive General Purpose Industrial Telecommunications

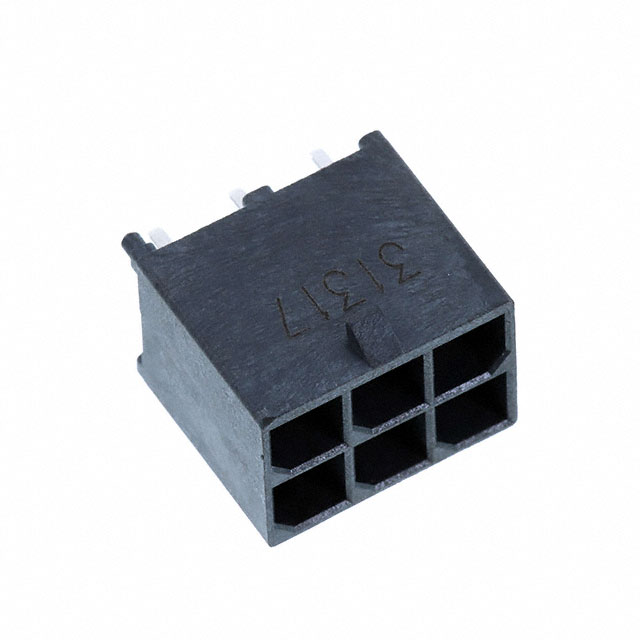

Molex 0768290106	60 Áin	1.52 Ám	Liquid Crystal Polymer (LCP)			Copper	Solder	1.52 µm	60 µin	UL94 V-0	Board Guide Glow Wire Compliant		14.8 mm	0.583 in	Male Pin	Black	6	3.73 mm	0.147 in	0.224 in	5.7 mm	Shrouded - 4 Wall	2	Locking Ramp	All	Through Hole	0.224 in	5.7 mm		Board to Cable/Wire	Square	Tin	Header	Automotive General Purpose Industrial Telecommunications

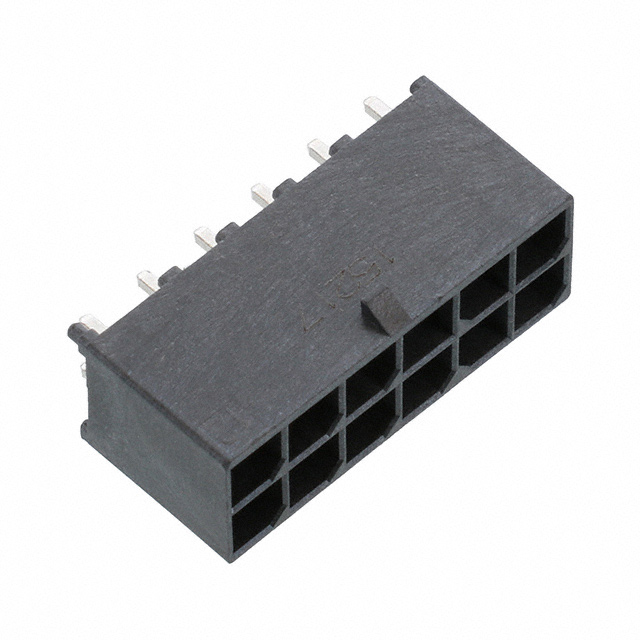

Molex 0768290112	60 Áin	1.52 Ám	Liquid Crystal Polymer (LCP)			Copper	Solder	1.52 µm	60 µin	UL94 V-0	Board Guide Glow Wire Compliant		14.8 mm	0.583 in	Male Pin	Black	12	3.73 mm	0.147 in	0.224 in	5.7 mm	Shrouded - 4 Wall	2	Locking Ramp	All	Through Hole	0.224 in	5.7 mm		Board to Cable/Wire	Square	Tin	Header	Automotive General Purpose Industrial Telecommunications

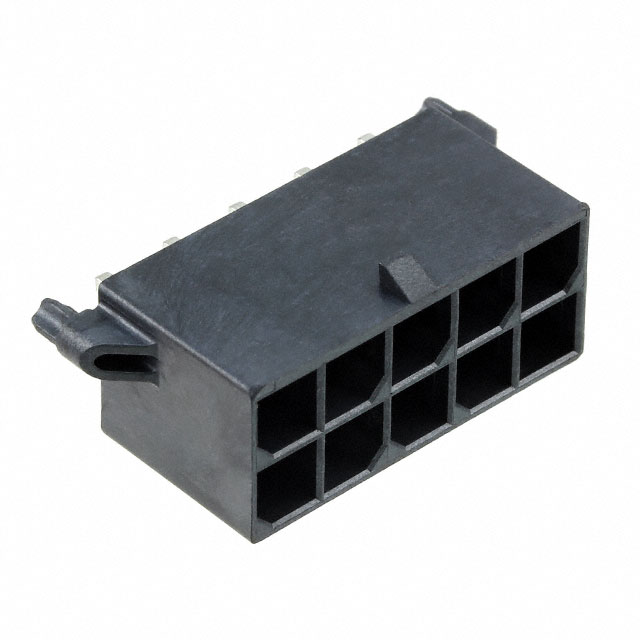

Molex 0768290010	60 Áin	1.52 Ám	Liquid Crystal Polymer (LCP)			Copper	Solder	1.52 µm	60 µin	UL94 V-0	Board Guide Glow Wire Compliant		14.8 mm	0.583 in	Male Pin	Black	10	3.73 mm	0.147 in	0.224 in	5.7 mm	Shrouded - 4 Wall	2	Locking Ramp	All	Through Hole	0.224 in	5.7 mm		Board to Cable/Wire	Square	Tin	Header	Automotive General Purpose Industrial Telecommunications
