746X101 Series

Catalog

RES ARRAY 8 RES 1.5K OHM 1206

Part	Temperature Coefficient	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance (Ohms) [custom]	Number of Pins	Package / Case	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Power Per Element	Number of Resistors	Mounting Type	Circuit Type	Resistance (Ohms)	Resistance (Ohms)	Tolerance
CTS Resistor Products 746X101152J	200 ppm/°C	DDR SDRAM DRAM MDDR	0.7 mm	0.028 "	1.5 k	10	1206 (3216 Metric) Convex Long Side Terminals	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	-55 C	125 °C	63 mW	8	Surface Mount	Bussed

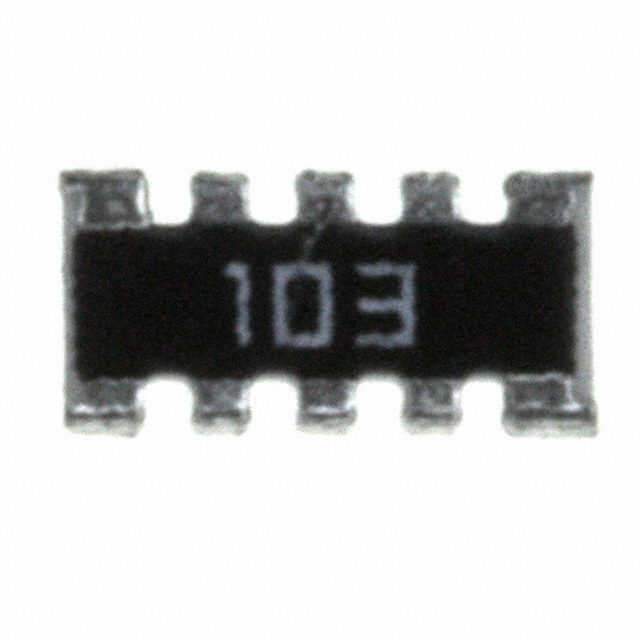

CTS Resistor Products 746X101103JP	200 ppm/°C	DDR SDRAM DRAM MDDR	0.7 mm	0.028 "		10	1206 (3216 Metric) Convex Long Side Terminals	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	-55 C	125 °C	63 mW	8	Surface Mount	Bussed	10k

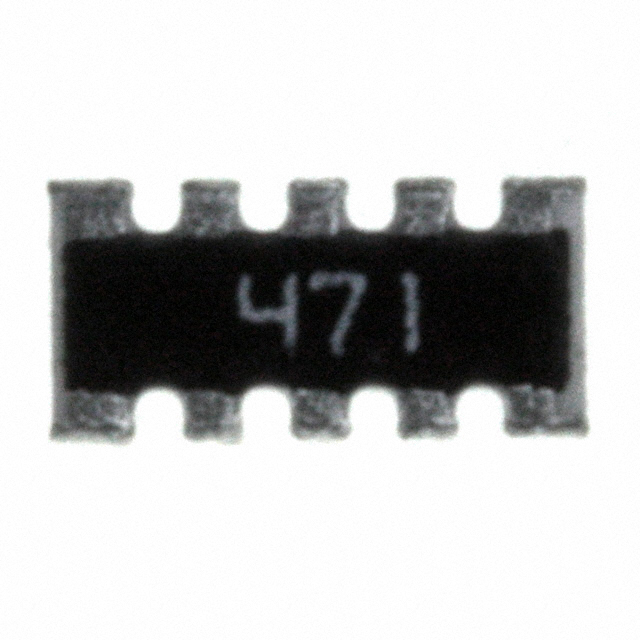

CTS Resistor Products 746X101471JP	200 ppm/°C	DDR SDRAM DRAM MDDR	0.7 mm	0.028 "		10	1206 (3216 Metric) Convex Long Side Terminals	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	-55 C	125 °C	63 mW	8	Surface Mount	Bussed		470 Ohms
CTS Resistor Products 746X101104JP	200 ppm/°C	DDR SDRAM DRAM MDDR	0.7 mm	0.028 "		10	1206 (3216 Metric) Convex Long Side Terminals	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	-55 C	125 °C	63 mW	8	Surface Mount	Bussed	100k
CTS Resistor Products 746X101682JP	200 ppm/°C	DDR SDRAM DRAM MDDR	0.7 mm	0.028 "		10	1206 (3216 Metric) Convex Long Side Terminals	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	-55 C	125 °C	63 mW	8	Surface Mount	Bussed	6.8k
CTS Resistor Products 746X101151JP	200 ppm/°C	DDR SDRAM DRAM MDDR	0.7 mm	0.028 "		10	1206 (3216 Metric) Convex Long Side Terminals	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	-55 C	125 °C	63 mW	8	Surface Mount	Bussed		150 Ohms
CTS Resistor Products 746X101152JP	200 ppm/°C	DDR SDRAM DRAM MDDR	0.7 mm	0.028 "	1.5 k	10	1206 (3216 Metric) Convex Long Side Terminals	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	-55 C	125 °C	63 mW	8	Surface Mount	Bussed
CTS Resistor Products 746X101473J	200 ppm/°C	DDR SDRAM DRAM MDDR	0.7 mm	0.028 "		10	1206 (3216 Metric) Convex Long Side Terminals	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	-55 C	125 °C	63 mW	8	Surface Mount	Bussed		47 kOhms
CTS Resistor Products 746X101000XP	200 ppm/°C	DDR SDRAM DRAM MDDR	0.7 mm	0.028 "		10	1206 (3216 Metric) Convex Long Side Terminals		0.063 "	0.126 "	3.2 mm	1.6 mm	-55 C	125 °C	63 mW	8	Surface Mount	Bussed		0 Ohms	Jumper
CTS Resistor Products 746X101104J	200 ppm/°C	DDR SDRAM DRAM MDDR	0.7 mm	0.028 "		10	1206 (3216 Metric) Convex Long Side Terminals	5 %	0.063 "	0.126 "	3.2 mm	1.6 mm	-55 C	125 °C	63 mW	8	Surface Mount	Bussed	100k
