G1238 Series

Catalog

FAN AXIAL 119X38MM 24VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Approval Agency	Weight [custom]	Weight [custom]	Fan Type	Termination	Air Flow	Air Flow	Bearing Type	Width [y]	Noise	Voltage - Rated	Static Pressure	Static Pressure	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	RPM	Features	Size / Dimension [z]	Ingress Protection

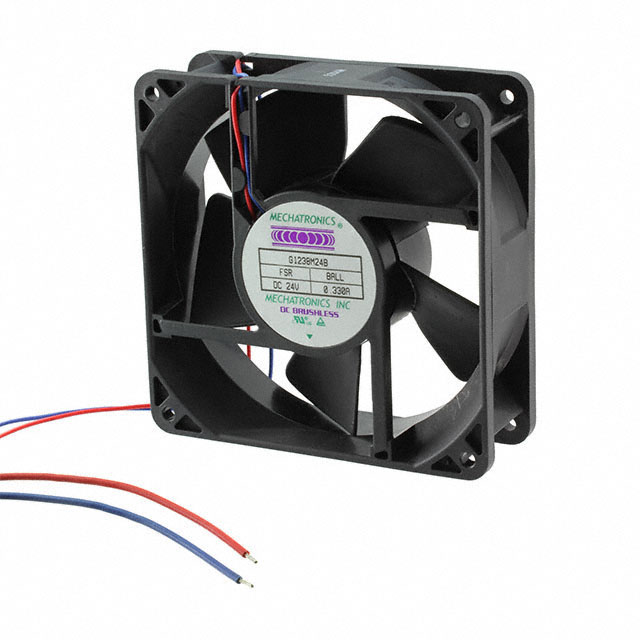

Mechatronics Fan Group G1238M24B-FSR-CC	Polybutylene Terephthalate (PBT)	0.33 A	CE cUL TUV UL	0.74 lb	335.66 g	Tubeaxial	2 Wire Leads	3.5 mł/min	125 CFM	Ball	38 mm	43 dB	24 VDC	79.7 Pa	0.32 in H2O	Square	119 mm	119 mm	2800 RPM	Conformal Coating Thermal Overload Protector (TOP)

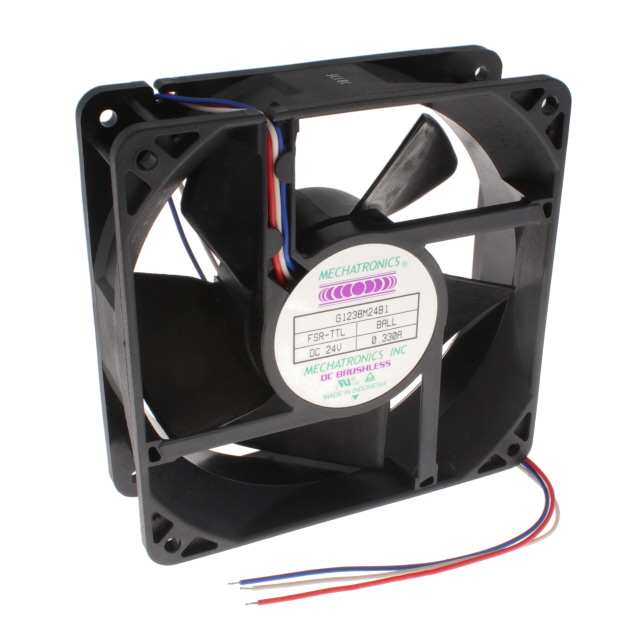

Mechatronics Fan Group G1238M24B1-FSR-TTL	Polybutylene Terephthalate (PBT)	0.33 A	CE cUL TUV UL	0.74 lb	335.66 g	Tubeaxial	3 Wire Leads	3.5 mł/min	125 CFM	Ball	38 mm	43 dB	24 VDC	79.7 Pa	0.32 in H2O		120 mm		2800 RPM	Speed Sensor (Tach) Thermal Overload Protector (TOP)	120 mm
Mechatronics Fan Group G1238E48B1-FSR-WS-EM	Polybutylene Terephthalate (PBT)	0.33 A	CE cUL TUV UL	0.74 lb	335.66 g	Tubeaxial	4 Wire Leads	4.42 m³/min	158 CFM	Ball	38 mm	49 dB	48 VDC	122.1 Pa	0.49 in H2O	Square	119 mm	119 mm	3600 RPM	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)		IP57 - Dust Protected Waterproof

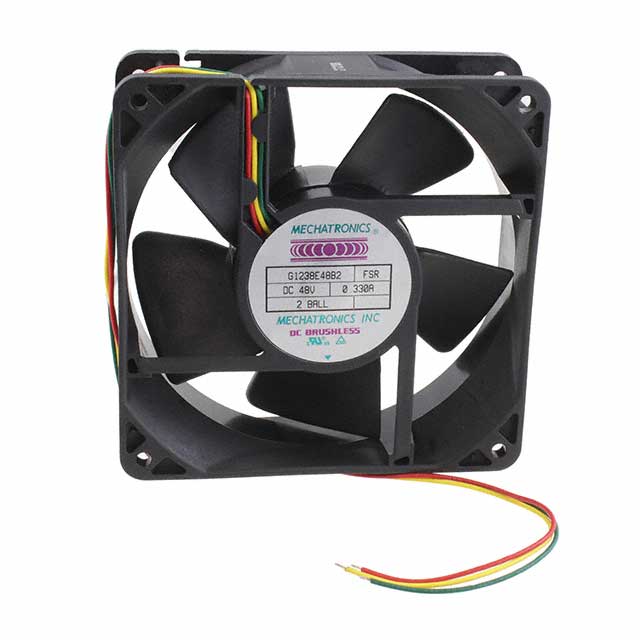

Mechatronics Fan Group G1238E48B2-FSR	Polybutylene Terephthalate (PBT)	0.33 A	CE cUL TUV UL	0.74 lb	335.66 g	Tubeaxial	3 Wire Leads	4.42 m³/min	158 CFM	Ball	38 mm	49 dB	48 VDC	122.1 Pa	0.49 in H2O		120 mm		3600 RPM	Locked Rotor Sensor Thermal Overload Protector (TOP)	120 mm
Mechatronics Fan Group G1238S24B1-FSR-WS	Polybutylene Terephthalate (PBT)	0.18 A	CE cUL TUV UL	0.74 lb	335.66 g	Tubeaxial	4 Wire Leads	2.46 mł/min	88 CFM	Ball	38 mm	34 dB(A)	24 VDC	42.3 Pa	0.17 in H2O	Square	119 mm	119 mm	2000 RPM	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)

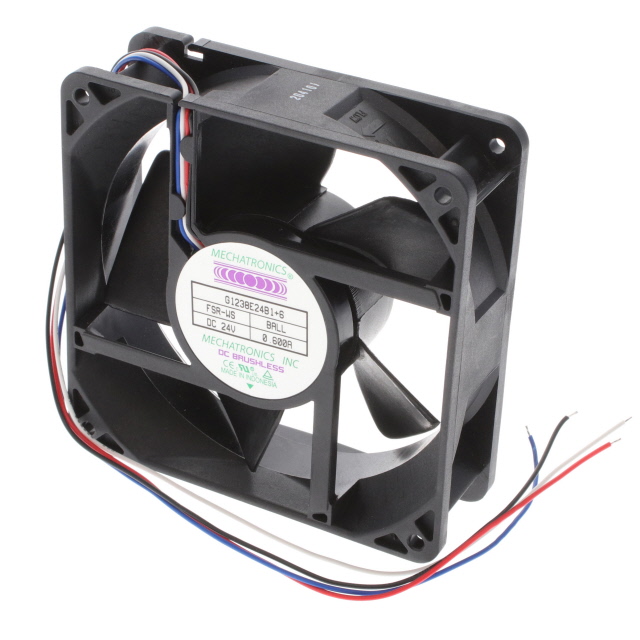

Mechatronics Fan Group G1238E24B1+6-FSR-WS	Polybutylene Terephthalate (PBT)	600 mA	CE cUL TUV UL	0.74 lb	335.66 g	Tubeaxial	4 Wire Leads	4.42 m³/min	158 CFM	Ball	38 mm	49 dB	24 VDC	122.1 Pa	0.49 in H2O		120 mm		3600 RPM	Alarm Sensor PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	120 mm

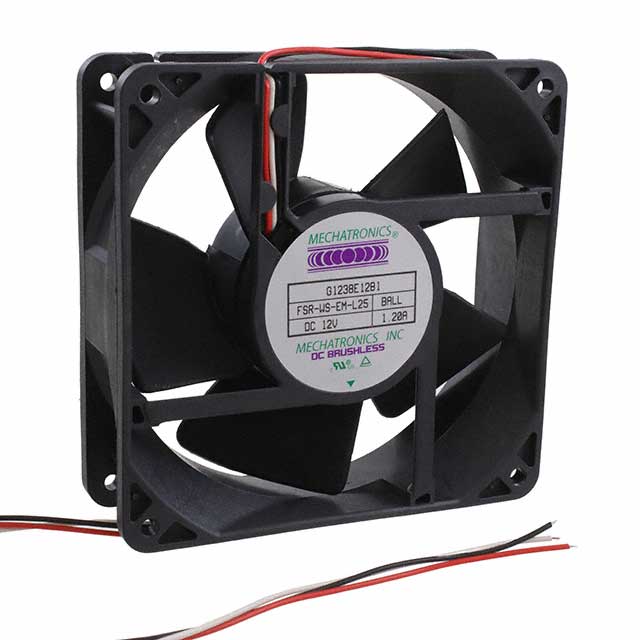

Mechatronics Fan Group G1238E12B1-FSR-WS-EM-L25	Polybutylene Terephthalate (PBT)	1.2 A	CE cUL TUV UL	0.74 lb	335.66 g	Tubeaxial	3 Wire Leads	4.42 m³/min	158 CFM	Ball	38 mm	49 dB	12 VDC	122.1 Pa	0.49 in H2O		120 mm		3600 RPM	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	120 mm
Mechatronics Fan Group G1238L24B-FSR-EM	Polybutylene Terephthalate (PBT)	0.25 A	CE cUL TUV UL	0.74 lb	335.66 g	Tubeaxial	2 Wire Leads	3 m³/min	107 CFM	Ball	38 mm	38 dB(A)	24 VDC	59.8 Pa	0.24 in H2O	Square	119 mm	119 mm	2400 RPM	Thermal Overload Protector (TOP)		IP57 - Dust Protected Waterproof
Mechatronics Fan Group G1238E12B1-FSR-WS	Polybutylene Terephthalate (PBT)	1.2 A	CE cUL TUV UL	0.74 lb	335.66 g	Tubeaxial	4 Wire Leads	4.42 m³/min	158 CFM	Ball	38 mm	49 dB	12 VDC	122.1 Pa	0.49 in H2O	Square	119 mm	119 mm	3600 RPM	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)
Mechatronics Fan Group G1238H48B1-FSR	Polybutylene Terephthalate (PBT)	0.25 A	CE cUL TUV UL	0.74 lb	335.66 g	Tubeaxial	3 Wire Leads	3.95 m³/min	141.2 CFM	Ball	38 mm	46 dB(A)	48 VDC	102.1 Pa	0.41 in H2O	Square	119 mm	119 mm	3200 RPM	Speed Sensor (Tach) Thermal Overload Protector (TOP)
