EVQ-9P Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Actuator Orientation	Actuator Type	Illumination	Circuit	Switch Travel	Mechanical Life	Switch Function	Outline [x]	Outline [y]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Rating @ Voltage

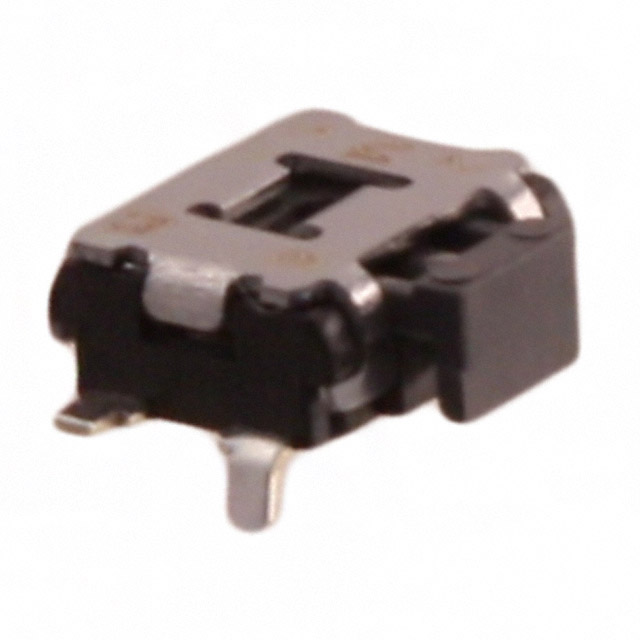

Panasonic Industrial Automation Sales EVQ-9P701K	Gull Wing	Side Actuated	Rectangular Button	Non-Illuminated	SPST-NO	0.2 mm	100000 Cycles	Off-Mom	4.7 mm	2.9 mm	-20 C	70 °C	Surface Mount Right Angle	0.05 A 12 VDC
Panasonic Industrial Automation Sales EVQ-9P701P	Gull Wing	Side Actuated	Rectangular Button	Non-Illuminated	SPST-NO	0.2 mm	100000 Cycles	Off-Mom	4.7 mm	2.9 mm	-20 C	70 °C	Surface Mount Right Angle	0.05 A 12 VDC
