D4NL-2D Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

INTERLOCK SOLENOID RELEASE DPST

Part	Termination Style	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Actuator Type	Voltage Rating	Circuit	Conduit Thread Size	Approval Agency	Features	Voltage - Supply	Current Rating (Amps)	Ingress Protection	Type	Holding Force
Omron Electronics Inc-EMC Div D4NL-2DDA-BS	Screw Terminal	55 °C	-10 °C	Panel Disconnect	240 VAC 250 VDC	DPST-NC x 2	G1/2	CCC CE cULus TUV	Status Indicator	24 VDC	3 A 270 mA	IP67 - Dust Tight Waterproof	Solenoid Release	133 kgf
Omron Electronics Inc-EMC Div D4NL-2DFA-B	Screw Terminal	55 °C	-10 °C	Panel Disconnect	240 VAC 250 VDC	DPST-NC x 2	G1/2	CCC CE cULus TUV	Status Indicator	24 VDC	3 A 270 mA	IP67 - Dust Tight Waterproof	Solenoid Release	133 kgf
Omron Electronics Inc-EMC Div D4NL-2DFH-B	Screw Terminal	55 °C	-10 °C	Panel Disconnect	240 VAC 250 VDC	DPST-NC x 2	G1/2	CCC CE cULus TUV	Status Indicator	110 VAC/DC	3 A 270 mA	IP67 - Dust Tight Waterproof	Solenoid Locking	133 kgf
Omron Electronics Inc-EMC Div D4NL-2DDA-B4S
Omron Electronics Inc-EMC Div D4NL-2DFA-BS	Screw Terminal	55 °C	-10 °C	Panel Disconnect	240 VAC 250 VDC	DPST-NC x 2	G1/2	CCC CE cULus TUV	Status Indicator	24 VDC	3 A 270 mA	IP67 - Dust Tight Waterproof	Solenoid Release	133 kgf

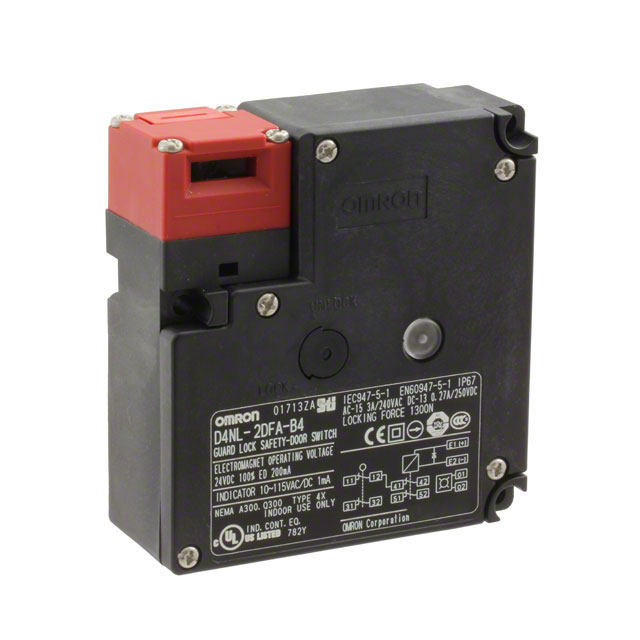

Omron Electronics Inc-EMC Div D4NL-2DFA-B4	Screw Terminal	55 °C	-10 °C	Panel Disconnect	240 VAC 250 VDC	DPST-NC x 2	G1/2	CCC CE cULus TUV	Status Indicator	24 VDC	3 A 270 mA	IP67 - Dust Tight Waterproof	Solenoid Release	133 kgf

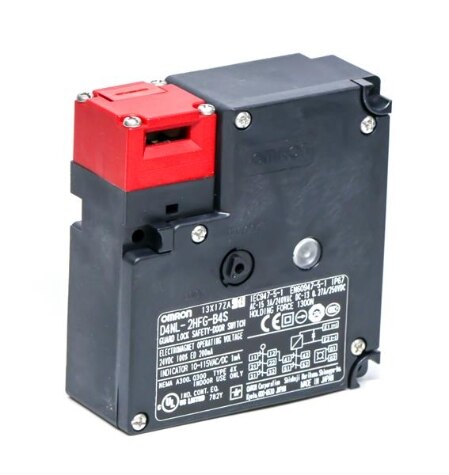

Omron Electronics Inc-EMC Div D4NL-2DFG-BS	Screw Terminal	55 °C	-10 °C	Panel Disconnect	240 VAC 250 VDC	DPST-NC x 2	G1/2	CCC CE cULus TUV	Status Indicator	24 VDC	3 A 270 mA	IP67 - Dust Tight Waterproof	Solenoid Locking	133 kgf
