Headers & Wire Housings 1.0WTB1ROWRAWAFERASSY9CKTEMBSTPPKG
Headers & Wire Housings 1.0WTB1ROWRAWAFERASSY9CKTEMBSTPPKG
| Part | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Pitch - Mating | Pitch - Mating | Shrouding | Number of Positions | Material Flammability Rating | Connector Type | Insulation Material | Contact Shape | Mounting Type | Voltage Rating | Number of Rows | Termination | Style | Number of Positions Loaded | Contact Finish - Post | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Insulation Height [z] | Insulation Height | Contact Finish - Mating | Contact Type | Current Rating (Amps) | Insulation Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

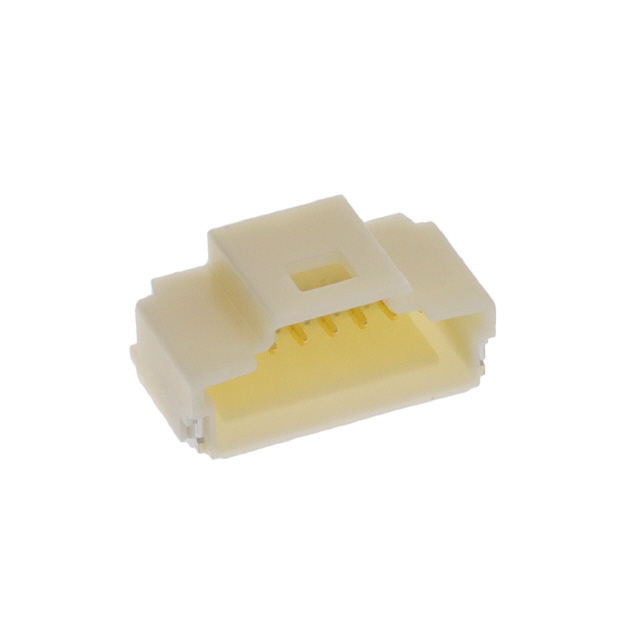

 Molex | Automotive General Purpose Industrial Medical | 39.4 çin | 1 çm | Natural | 3.9 µin | 0.099 µm | Solder Retention | 1 mm | 0.039 in | Shrouded - 4 Wall | 5 | UL94 V-0 | Header | Nylon Polyamide (PA) | Square | Right Angle Surface Mount | 50 V | 1 | Solder | Board to Cable/Wire | All | Gold | Phosphor Bronze | -40 C | 105 ░C | Latch Holder | 0.126 " | 3.2 mm | Gold | Male Pin | Varies by Wire Gauge | |
 Molex | Automotive General Purpose Industrial Medical | 39.4 çin | 1 çm | Natural | 3.9 µin | 0.099 µm | Solder Retention | 1 mm | 0.039 in | Shrouded - 4 Wall | 14 | UL94 V-0 | Header | Nylon Polyamide (PA) | Square | Right Angle Surface Mount | 50 V | 1 | Solder | Board to Cable/Wire | All | Gold | Phosphor Bronze | -40 C | 105 ░C | Latch Holder | 0.185 in | Gold | Male Pin | Varies by Wire Gauge | 4.7 mm | |
 Molex | Automotive General Purpose Industrial Medical | 39.4 çin | 1 çm | Natural | 3.9 µin | 0.099 µm | Solder Retention | 1 mm | 0.039 in | Shrouded - 4 Wall | 8 | UL94 V-0 | Header | Nylon Polyamide (PA) | Square | Right Angle Surface Mount | 50 V | 1 | Solder | Board to Cable/Wire | All | Gold | Phosphor Bronze | -40 C | 105 ░C | Latch Holder | 0.185 in | Gold | Male Pin | Varies by Wire Gauge | 4.7 mm | |
 Molex | Automotive General Purpose Industrial Medical | 39.4 çin | 1 çm | Natural | 3.9 µin | 0.099 µm | Solder Retention | 1 mm | 0.039 in | Shrouded - 4 Wall | 15 | UL94 V-0 | Header | Nylon Polyamide (PA) | Square | Right Angle Surface Mount | 50 V | 1 | Solder | Board to Cable/Wire | All | Gold | Phosphor Bronze | -40 C | 105 ░C | Latch Holder | 0.185 in | Gold | Male Pin | Varies by Wire Gauge | 4.7 mm | |
 Molex | Automotive General Purpose Industrial Medical | 39.4 çin | 1 çm | Natural | 3.9 µin | 0.099 µm | Solder Retention | 1 mm | 0.039 in | Shrouded - 4 Wall | 2 | UL94 V-0 | Header | Nylon Polyamide (PA) | Square | Right Angle Surface Mount | 50 V | 1 | Solder | Board to Cable/Wire | All | Gold | Phosphor Bronze | -40 C | 105 ░C | Latch Holder | 0.126 " | 3.2 mm | Gold | Male Pin | Varies by Wire Gauge | |

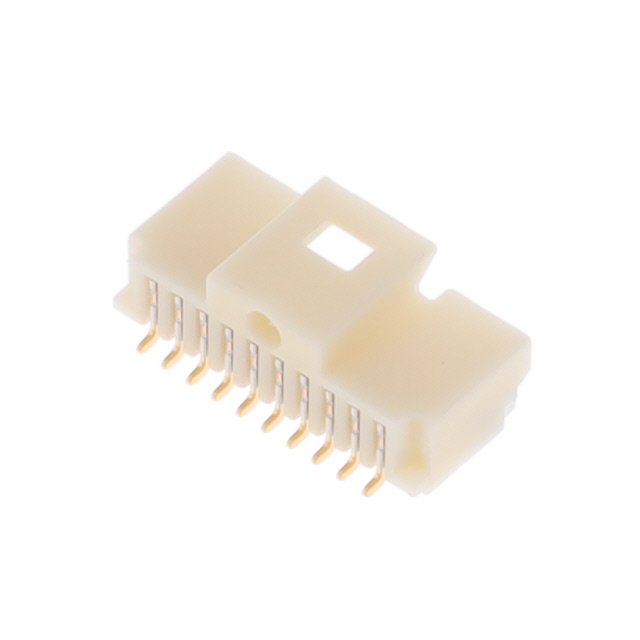

 Molex | Automotive General Purpose Industrial Medical | 39.4 çin | 1 çm | Natural | 3.9 µin | 0.099 µm | Solder Retention | 1 mm | 0.039 in | Shrouded - 4 Wall | 10 | UL94 V-0 | Header | Nylon Polyamide (PA) | Square | Right Angle Surface Mount | 50 V | 1 | Solder | Board to Cable/Wire | All | Gold | Phosphor Bronze | -40 C | 105 ░C | Latch Holder | 0.185 in | Gold | Male Pin | Varies by Wire Gauge | 4.7 mm | |

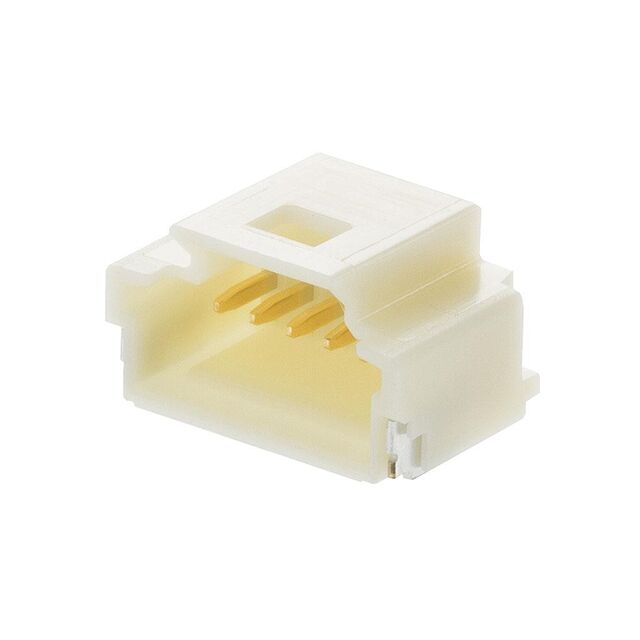

 Molex | Automotive General Purpose Industrial Medical | 39.4 çin | 1 çm | Natural | 3.9 µin | 0.099 µm | Solder Retention | 1 mm | 0.039 in | Shrouded - 4 Wall | 4 | UL94 V-0 | Header | Nylon Polyamide (PA) | Square | Right Angle Surface Mount | 50 V | 1 | Solder | Board to Cable/Wire | All | Gold | Phosphor Bronze | -40 C | 105 ░C | Latch Holder | 0.126 " | 3.2 mm | Gold | Male Pin | Varies by Wire Gauge | |
 Molex | Automotive General Purpose Industrial Medical | 39.4 çin | 1 çm | Natural | 3.9 µin | 0.099 µm | Solder Retention | 1 mm | 0.039 in | Shrouded - 4 Wall | 13 | UL94 V-0 | Header | Nylon Polyamide (PA) | Square | Right Angle Surface Mount | 50 V | 1 | Solder | Board to Cable/Wire | All | Gold | Phosphor Bronze | -40 C | 105 ░C | Latch Holder | 0.185 in | Gold | Male Pin | Varies by Wire Gauge | 4.7 mm | |

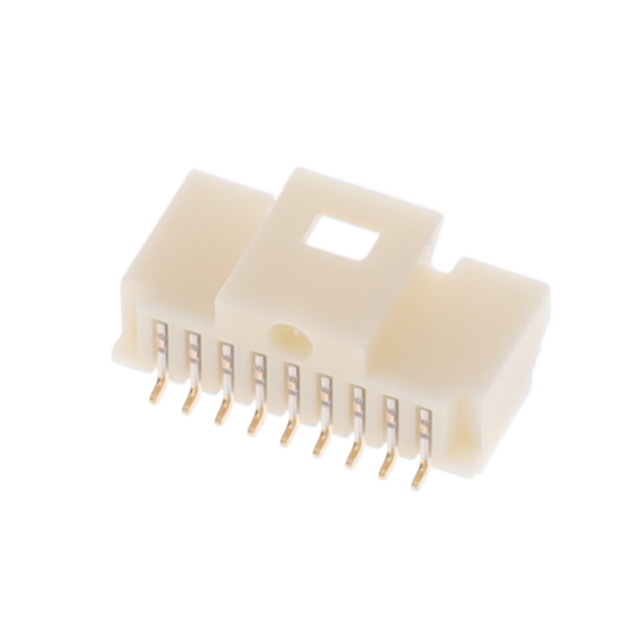

 Molex | Automotive General Purpose Industrial Medical | 39.4 çin | 1 çm | Natural | 3.9 µin | 0.099 µm | Solder Retention | 1 mm | 0.039 in | Shrouded - 4 Wall | 9 | UL94 V-0 | Header | Nylon Polyamide (PA) | Square | Right Angle Surface Mount | 50 V | 1 | Solder | Board to Cable/Wire | All | Gold | Phosphor Bronze | -40 C | 105 ░C | Latch Holder | 0.185 in | Gold | Male Pin | Varies by Wire Gauge | 4.7 mm | |

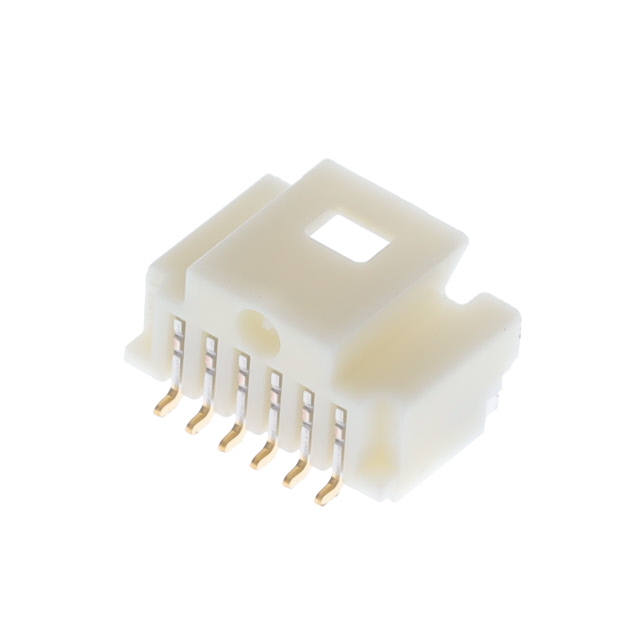

 Molex | Automotive General Purpose Industrial Medical | 39.4 çin | 1 çm | Natural | 3.9 µin | 0.099 µm | Solder Retention | 1 mm | 0.039 in | Shrouded - 4 Wall | 6 | UL94 V-0 | Header | Nylon Polyamide (PA) | Square | Right Angle Surface Mount | 50 V | 1 | Solder | Board to Cable/Wire | All | Gold | Phosphor Bronze | -40 C | 105 ░C | Latch Holder | 0.185 in | Gold | Male Pin | Varies by Wire Gauge | 4.7 mm |
