87832 Series

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Vertical, Surface Mount, Shrouded, Lead-Free, 8 Circuits, 0.76µm Gold (Au) Plating, with Pick-and-Place Cap, with Locking Window, with Center Polarization Slot, with PCB Locator, Tape and Reel

Manufacturer: Molex

Catalog

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Number of Positions	Insulation Height [z]	Insulation Height [z]	Contact Shape	Pitch - Mating	Pitch - Mating	Connector Type	Contact Material	Shrouding	Insulation Material	Mounting Type	Contact Finish - Mating	Number of Positions Loaded	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Termination	Insulation Color	Fastening Type	Features	Contact Type	Style	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post
Molex 878321412

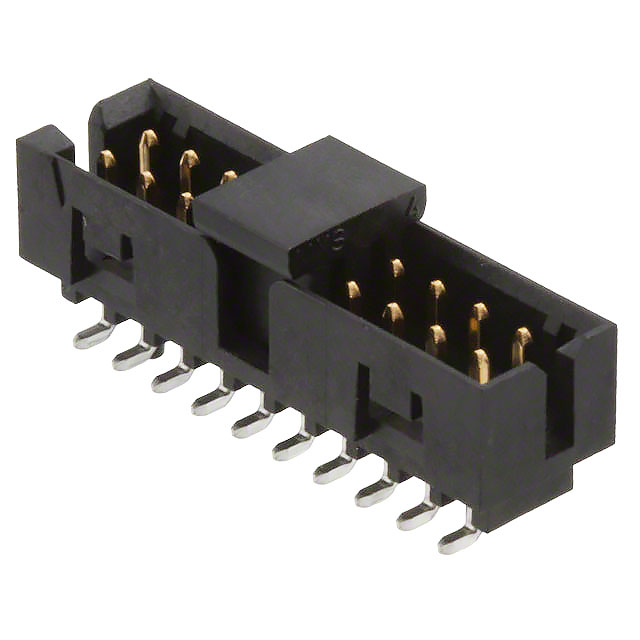

Molex 0878322016	1.9 Ám	74.8 Áin	Automotive General Purpose Telecommunications	20	0.252 "	6.4 mm	Square	0.079 "	2 mm	Header	Phosphor Bronze	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Surface Mount	Gold	All	UL94 V-0	2 mm	0.079 in	0.38 µm	15 µin	-55 C	105 ░C	2	Solder	Black	Latch Holder	Board Guide Keying Slot Pick and Place	Male Pin	Board to Board Cable	0.141 in	3.6 mm	Tin

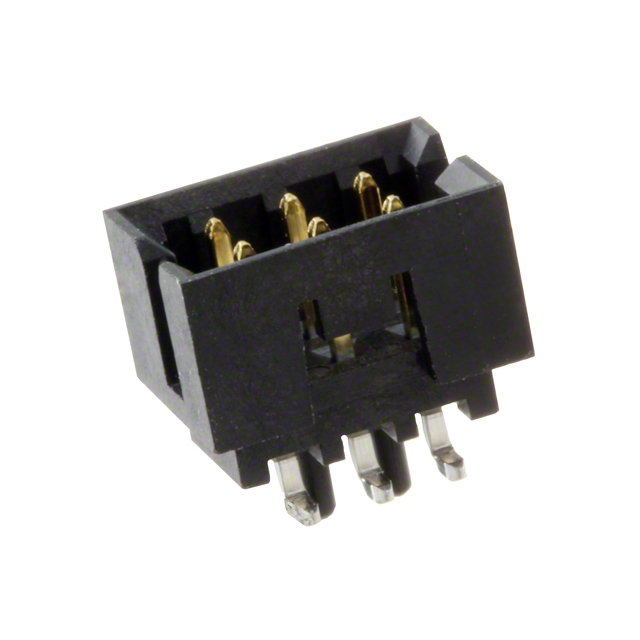

Molex 0878320620	1.9 Ám	74.8 Áin	Automotive General Purpose Telecommunications	6	0.252 "	6.4 mm	Square	0.079 "	2 mm	Header	Phosphor Bronze	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Surface Mount	Gold	All	UL94 V-0	2 mm	0.079 in	0.38 µm	15 µin	-55 C	105 ░C	2	Solder	Black	Push-Pull	Board Guide	Male Pin	Board to Board Cable	0.141 in	3.6 mm	Tin

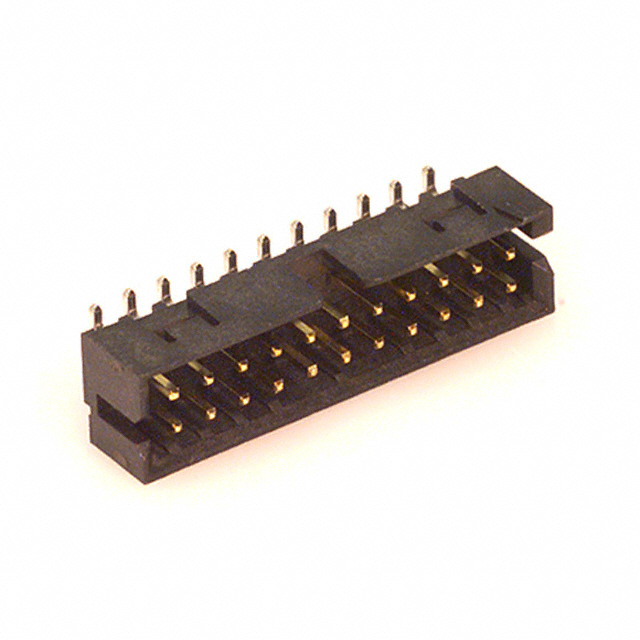

Molex 0878322220	1.9 Ám	74.8 Áin	Automotive General Purpose Telecommunications	22	0.252 "	6.4 mm	Square	0.079 "	2 mm	Header	Phosphor Bronze	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Surface Mount	Gold	All	UL94 V-0	2 mm	0.079 in	0.38 µm	15 µin	-55 C	105 ░C	2	Solder	Black	Latch Holder	Board Guide Keying Slot	Male Pin	Board to Board Cable	0.141 in	3.6 mm	Tin
Molex 0878324420	1.9 Ám	74.8 Áin	Automotive General Purpose Telecommunications	44	0.252 "	6.4 mm	Square	0.079 "	2 mm	Header	Phosphor Bronze	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Surface Mount	Gold	All	UL94 V-0	2 mm	0.079 in	0.38 µm	15 µin	-55 C	105 ░C	2	Solder	Black	Latch Holder	Board Guide Keying Slot	Male Pin	Board to Board Cable	0.141 in	3.6 mm	Tin

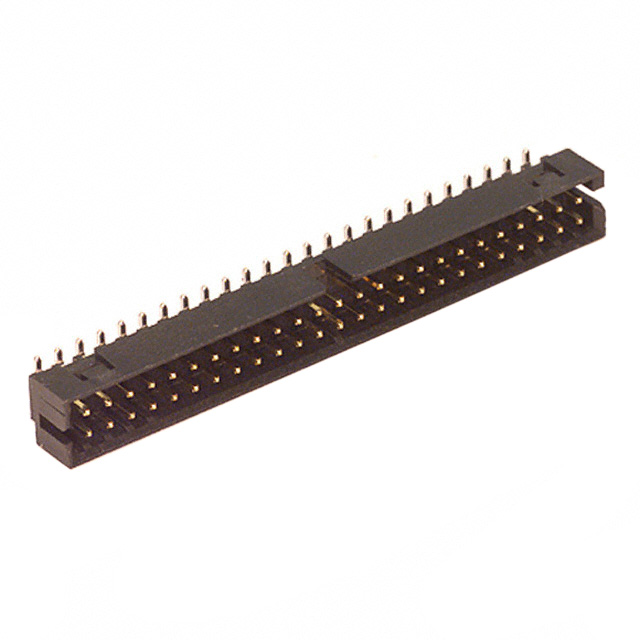

Molex 0878325020	1.9 Ám	74.8 Áin	Automotive General Purpose Telecommunications	50	0.252 "	6.4 mm	Square	0.079 "	2 mm	Header	Phosphor Bronze	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Surface Mount	Gold	All	UL94 V-0	2 mm	0.079 in	0.38 µm	15 µin	-55 C	105 ░C	2	Solder	Black	Latch Holder	Board Guide Keying Slot	Male Pin	Board to Board Cable	0.141 in	3.6 mm	Tin
Molex 878320616
Molex 0878320622	1.9 Ám	74.8 Áin	Automotive General Purpose Telecommunications	6	0.252 "	6.4 mm	Square	0.079 "	2 mm	Header	Phosphor Bronze	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Surface Mount	Gold	All	UL94 V-0	2 mm	0.079 in	0.38 µm	15 µin	-55 C	105 ░C	2	Solder	Black	Push-Pull	Board Guide Pick and Place	Male Pin	Board to Board Cable	0.141 in	3.6 mm	Tin

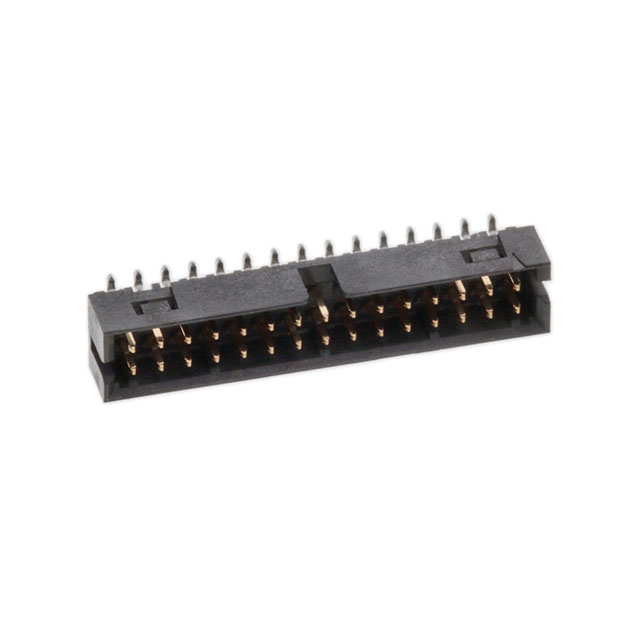

Molex 0878323020	1.9 Ám	74.8 Áin	Automotive General Purpose Telecommunications	30	0.252 "	6.4 mm	Square	0.079 "	2 mm	Header	Phosphor Bronze	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Surface Mount	Gold	All	UL94 V-0	2 mm	0.079 in	0.38 µm	15 µin	-55 C	105 ░C	2	Solder	Black	Latch Holder	Board Guide Keying Slot Pick and Place	Male Pin	Board to Board Cable	0.141 in	3.6 mm	Tin

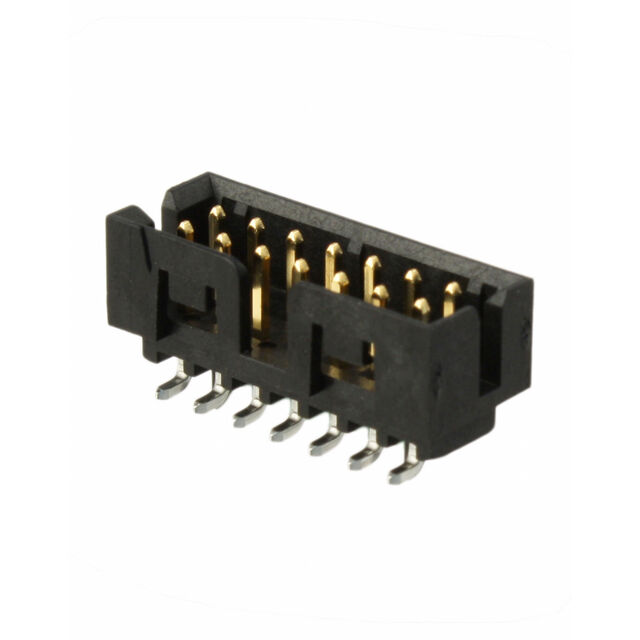

Molex 0878321421	1.9 Ám	74.8 Áin	Automotive General Purpose Telecommunications	14	0.252 "	6.4 mm	Square	0.079 "	2 mm	Header	Phosphor Bronze	Shrouded - 4 Wall	Glass Filled Nylon Polyamide (PA)	Surface Mount	Gold	All	UL94 V-0	2 mm	0.079 in	0.76 Ám	30 Áin	-55 C	105 ░C	2	Solder	Black	Latch Holder	Board Guide	Male Pin	Board to Board Cable	0.141 in	3.6 mm	Tin
