307-030 Series
Manufacturer: EDAC Inc.
Beta
⌘K

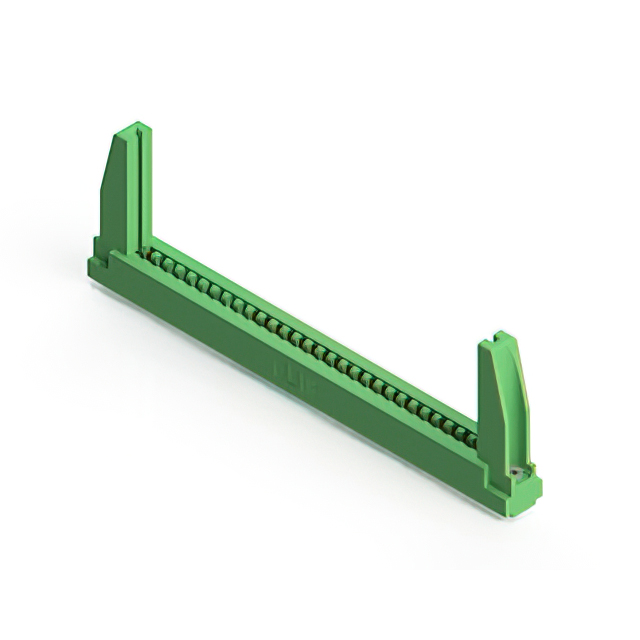

CONN EDGE SGL FMALE 30POS 0.156
| Part | Termination Rows | Material - Insulation | Termination | Number of Rows | Contact Finish | Read Out | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Features | Number of Positions | Gender | Card Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Mounting Type | Flange Feature | Number of Positions/Bay/Row | Termination Rows [custom] | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 1 | Gold | Single | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Card Guides | 30 | Female | Non Specified - Single Edge | Green | -40 C | 105 ░C | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 30 | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 1 | Tin | Single | 3.96 mm | 0.156 in | Card Guides | 30 | Female | Non Specified - Single Edge | Green | -40 C | 105 ░C | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 30 | ||||||
 EDAC Inc. | Polyester Thermoplastic | Solder | Gold | Dual | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 30 | Female | Non Specified - Dual Edge | Green | -40 C | 105 ░C | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Right Angle Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 15 | 2 | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | Solder | Gold | Dual | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | Card Extender | 30 | Female | Non Specified - Dual Edge | Green | -40 C | 105 ░C | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Board Edge Straddle Mount | Flush Mount Top Opening Unthreaded | 15 | 2 | 2 | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Polyester Thermoplastic | Solder | Gold | Dual | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 30 | Female | Non Specified - Dual Edge | Green | -40 C | 105 ░C | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Through Hole | Flush Mount Top Opening Unthreaded | 15 | 2 | 2 | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Polyester Thermoplastic | Solder Eyelet(s) | Tin | Dual | 3.96 mm | 0.156 in | Card Guides | 30 | Female | Non Specified - Dual Edge | Green | -40 C | 105 ░C | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 15 | 2 | 2 | ||||||
 EDAC Inc. | Polyester Thermoplastic | Solder | Gold | Dual | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 30 | Female | Non Specified - Dual Edge | Green | -40 C | 105 ░C | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Through Hole | Flush Mount Side Opening Unthreaded | 15 | 2 | 2 | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Polyester Thermoplastic | Solder | Tin | Dual | 3.96 mm | 0.156 in | Card Guides | 30 | Female | Non Specified - Dual Edge | Green | -40 C | 105 ░C | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 15 | 2 | 2 | ||||||
 EDAC Inc. | Polyester Thermoplastic | Solder Wire Wrap | Gold | Dual | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 30 | Female | Non Specified - Dual Edge | Green | -40 C | 105 ░C | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Right Angle Through Hole | Flush Mount M3 Threaded Insert Top Opening | 15 | 2 | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | Solder Wire Wrap | Gold | Dual | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 30 | Female | Non Specified - Dual Edge | Green | -40 C | 105 ░C | Semi Bellows | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Right Angle Through Hole | Flush Mount Side Opening Unthreaded | 15 | 2 | 2 | 0.128 " | 3.25 mm |
