FT1LC Series
Manufacturer: Belden Inc.
Beta
⌘K

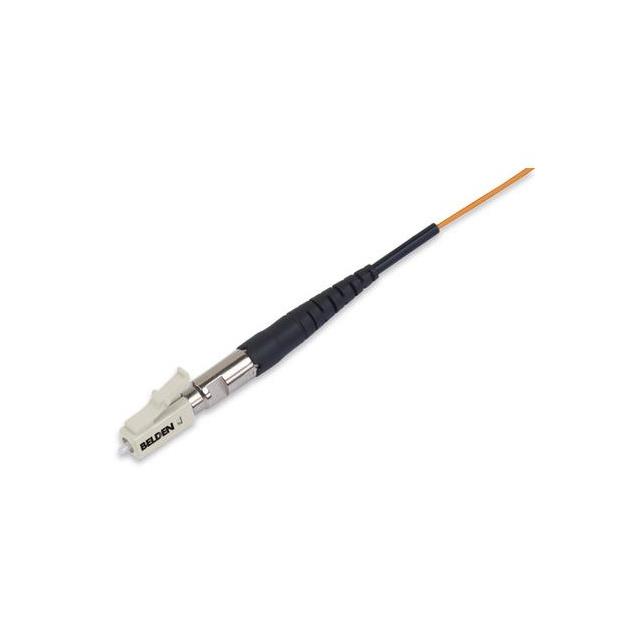

FX PIGTAIL OM1 LC_SX TB_900
| Part | Insertion Loss | Return Loss | Fiber Type | Cable Type | Type | 2nd Connector | Operating Temperature [Max] | Operating Temperature [Min] | Simplex/Duplex | Cable Diameter [diameter] | Mounting Type | Fastening Type | Mode | Connector Type | Connector Style | Color - Cable | Length - Overall [x] | Length - Overall [x] | Length - Overall | Length - Overall | Cable Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 0.25 dB | 30 dB | 62.5/125 | Buffered Fiber | Multimode OM1 | Cable | |||||||||||||||
Belden Inc. | 70 °C | -40 C | Simplex | 2 mm | Free Hanging (In-Line) | Push-Pull | Multimode OM1 | Plug | LC | ||||||||||||
 Belden Inc. | 62.5/125 | Buffered Fiber | Multimode OM1 | Cable | |||||||||||||||||
Belden Inc. | 0.25 dB | 30 dB | 62.5/125 | Buffered Fiber | Multimode OM1 | Cable | Orange | 4 m | 13.1 ft | ||||||||||||
Belden Inc. | 0.25 dB | 30 dB | 62.5/125 | Buffered Fiber | Multimode OM1 | Cable | |||||||||||||||
Belden Inc. | 0.25 dB | 30 dB | 62.5/125 | Buffered Fiber | Multimode OM1 | Cable | 9.8 ' | 3 m | |||||||||||||
Belden Inc. | 0.25 dB | 30 dB | 62.5/125 | Multimode OM1 | Cable | 0.08 " | Orange | 1 m | 3.3 ft | 2 mm | |||||||||||
Belden Inc. | 0.25 dB | 30 dB | 62.5/125 | Buffered Fiber | Multimode OM1 | Cable | |||||||||||||||
Belden Inc. | 0.25 dB | 30 dB | 62.5/125 | Ribbon Fiber | Multimode OM1 | Cable | |||||||||||||||
Belden Inc. | 0.25 dB | 30 dB | 62.5/125 | Buffered Fiber | Multimode OM1 | Cable | Gray | 8 m | 26.2 ' |
