LB16SKG01 Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Electrical Life	Mechanical Life	Circuit	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Actuator Marking	Actuator Type	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Color - Actuator/Cap	Illumination Type, Color	Illumination Voltage (Nominal)

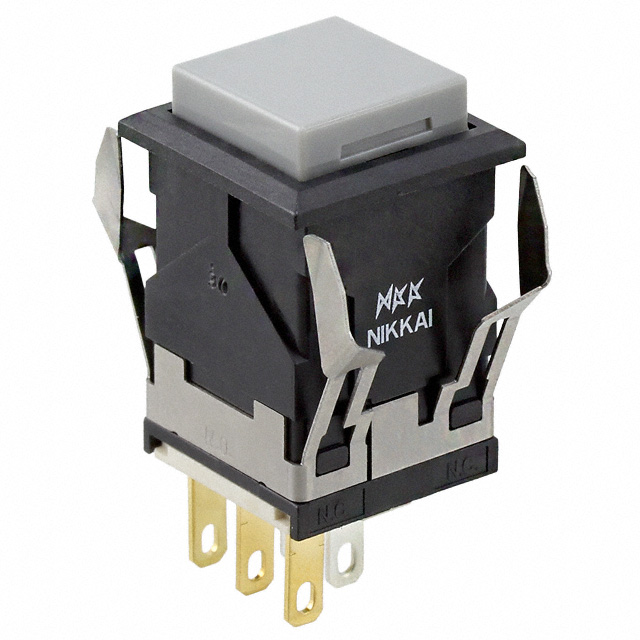

NKK Switches LB16SKG01-H	100000 Cycles	200000 Cycles	SPDT	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	Panel Mount Snap-In	On-On	0.4 VA	28 V	No Marking	Button Square	28 V	16.2 mm	16.2 mm	Standard
NKK Switches LB16SKG01-C	100000 Cycles	200000 Cycles	SPDT	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	70 °C	Panel Mount Snap-In	On-On	0.4 VA	28 V	No Marking	Button Square	28 V	16.2 mm	16.2 mm	Standard	Red
NKK Switches LB16SKG01-1C-C	100000 Cycles	200000 Cycles	SPDT	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	50 °C	Panel Mount Snap-In	On-On	0.4 VA	28 V	No Marking	Button Square	28 V	16.2 mm	16.2 mm	Illuminated Standard	Red	LED Red	1.9 VDC
NKK Switches LB16SKG01-5F24-JB	100000 Cycles	200000 Cycles	SPDT	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	50 °C	Panel Mount Snap-In	On-On	0.4 VA	28 V	No Marking	Button Square	28 V	16.2 mm	16.2 mm	Illuminated Standard	Clear	Green LED	24 V
NKK Switches LB16SKG01-5C05-JF	100000 Cycles	200000 Cycles	SPDT	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	50 °C	Panel Mount Snap-In	On-On	0.4 VA	28 V	No Marking	Button Square	28 V	16.2 mm	16.2 mm	Illuminated Standard	Clear	LED Red	5 VDC
NKK Switches LB16SKG01-6B-JB	100000 Cycles	200000 Cycles	SPDT	Solder Quick Connect - 0.110" (2.8mm)	-25 °C	50 °C	Panel Mount Snap-In	On-On	0.4 VA	28 V	No Marking	Button Square	28 V	16.2 mm	16.2 mm	Illuminated Standard	Clear	LED White	3.3 VDC
