XW4K Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

TERM BLOCK HDR 6POS 90DEG 2.54MM

Part	Housing Material	Insulation Height	Insulation Height	Wire Strip Length	Contact Material	Termination Style	Color	Voltage - UL	Number of Positions	Positions Per Level	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Header Orientation	Number of Levels	Features	Contact Mating Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Mounting Type	Current - UL	Type	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]

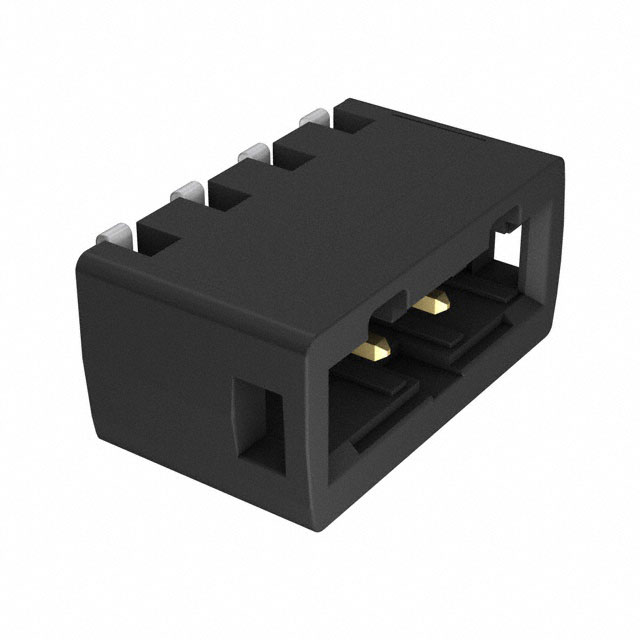

Omron Electronics Inc-EMC Div XW4K-06A1-H1	Glass Filled Liquid Crystal Polymer (LCP)	0.293 in	7.44 mm	6 mm	Copper Alloy	Solder	Black	160 V	6	6	0.1 "	2.54 mm	-45 °C	125 °C	0.14 mm²	0.5 mm²	90° Right Angle	1	Board Guide Latches	Tin	20 AWG	26 AWG	Surface Mount	6 A	Header Male Pins Shrouded (4 Side)

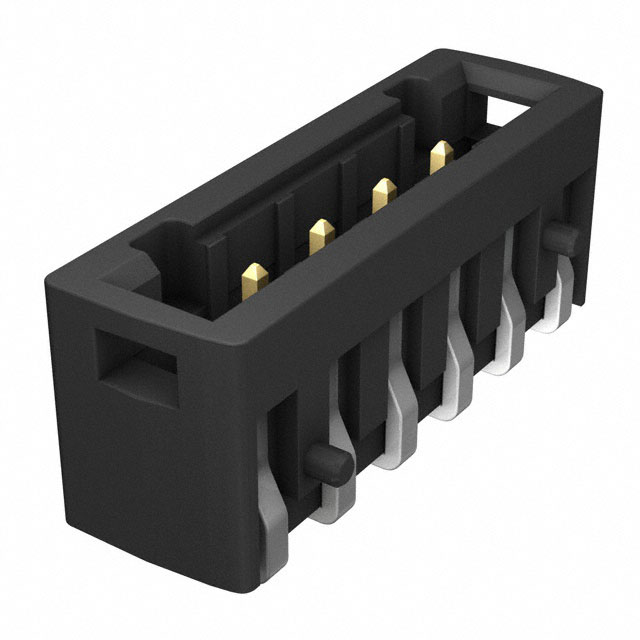

Omron Electronics Inc-EMC Div XW4K-04A1-V1	Glass Filled Liquid Crystal Polymer (LCP)	0.293 in	7.44 mm	6 mm	Copper Alloy	Solder	Black	160 V	4	4	0.1 "	2.54 mm	-45 °C	125 °C	0.14 mm²	0.5 mm²	Vertical	1	Board Guide Latches	Tin	20 AWG	26 AWG	Surface Mount	6 A	Header Male Pins Shrouded (4 Side)

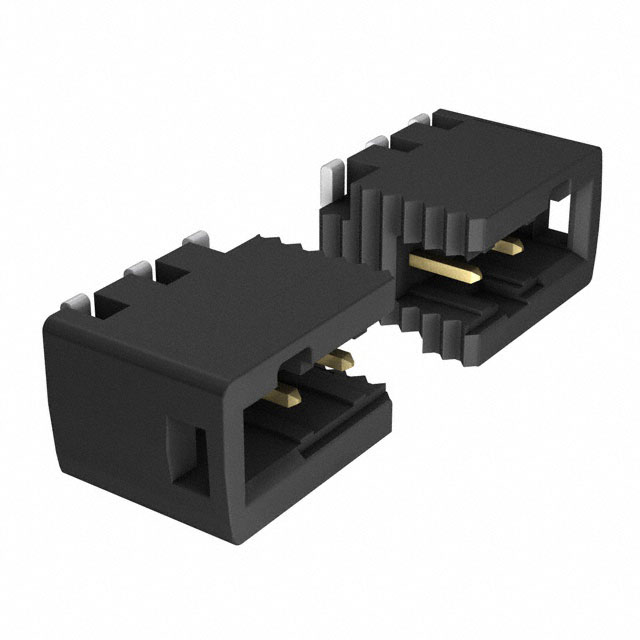

Omron Electronics Inc-EMC Div XW4K-02A1-H1	Glass Filled Liquid Crystal Polymer (LCP)	0.293 in	7.44 mm	6 mm	Copper Alloy	Solder	Black	160 V	2	2	0.1 "	2.54 mm	-45 °C	125 °C	0.14 mm²	0.5 mm²	90° Right Angle	1	Board Guide Latches	Tin	20 AWG	26 AWG	Surface Mount	6 A	Header Male Pins Shrouded (4 Side)
Omron Electronics Inc-EMC Div XW4K-05A1-V1	Glass Filled Liquid Crystal Polymer (LCP)	0.293 in	7.44 mm	6 mm	Copper Alloy	Solder	Black	160 V	5	5	0.1 "	2.54 mm	-45 °C	125 °C	0.14 mm²	0.5 mm²	Vertical	1	Board Guide Latches	Tin	20 AWG	26 AWG	Surface Mount	6 A	Header Male Pins Shrouded (4 Side)	0.5 mm˛	0.14 mm˛

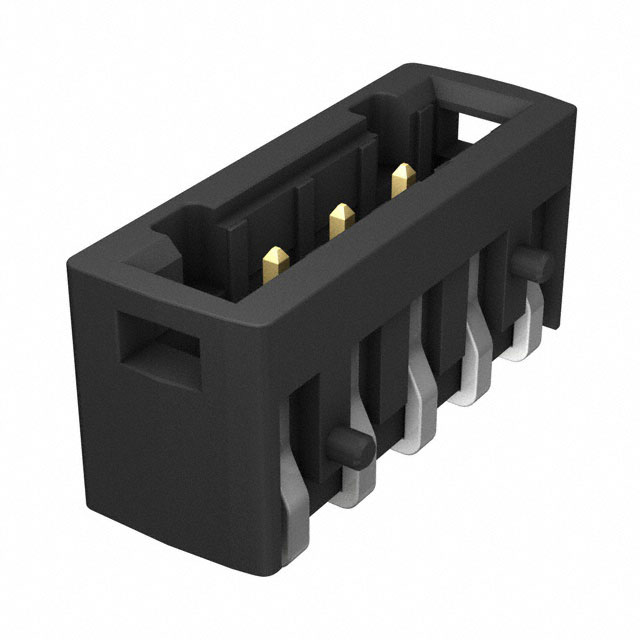

Omron Electronics Inc-EMC Div XW4K-03A1-V1	Glass Filled Liquid Crystal Polymer (LCP)	0.293 in	7.44 mm	6 mm	Copper Alloy	Solder	Black	160 V		3	0.1 "	2.54 mm	-45 °C	125 °C	0.14 mm²	0.5 mm²	Vertical	1	Board Guide Latches	Tin	20 AWG	26 AWG	Surface Mount	6 A	Header Male Pins Shrouded (4 Side)	0.5 mm˛	0.14 mm˛
