H7ER-N Series

Catalog

TACHOMETER LCD 5 CHAR PANEL MT

Part	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage - Supply	Voltage - Supply	Operating Mode	Type	Input Type	Count Rate	Reset	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Display Characters - Height	Display Characters - Height	Ingress Protection	Weight	Weight	Number of Characters Per Row	Display Type

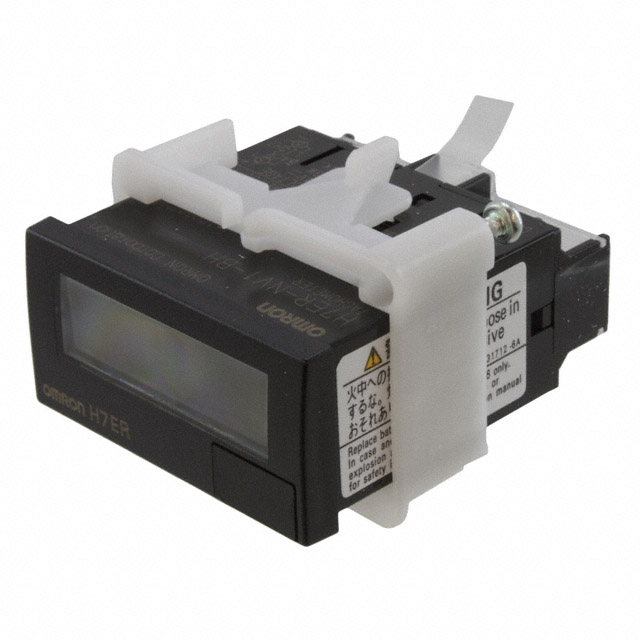

Omron Electronics Inc-EMC Div H7ER-NV1-BH	Screw Terminal	22.2 mm	45 mm	None Required	24 VDC	Up	Tachometer	Voltage	10 kHz	Non-Resettable	55 °C	-10 °C	0.338 in	8.6 mm	IP66	0.143 lb	64.86 g	5
Omron Electronics Inc-EMC Div H7ER-NV1-H	Screw Terminal	22.2 mm	45 mm	None Required	24 VDC	Up	Tachometer	Voltage	10 kHz	Non-Resettable	55 °C	-10 °C	0.338 in	8.6 mm	IP66	0.143 lb	64.86 g	5

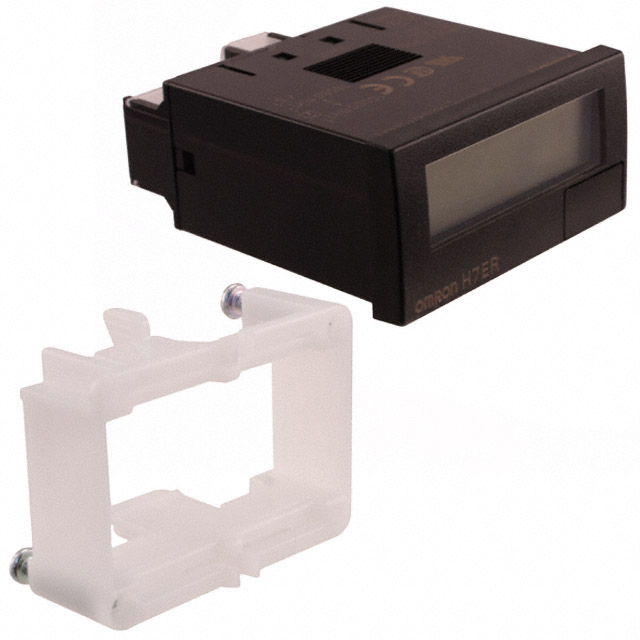

Omron Electronics Inc-EMC Div H7ER-NV1-B	Screw Terminal	22.2 mm	45 mm	None Required (Battery Included)		Up	Tachometer	Voltage	10 kHz	Non-Resettable	55 °C	-10 °C	0.338 in	8.6 mm	IP66	0.143 lb	64.86 g	5	LCD - Black Characters

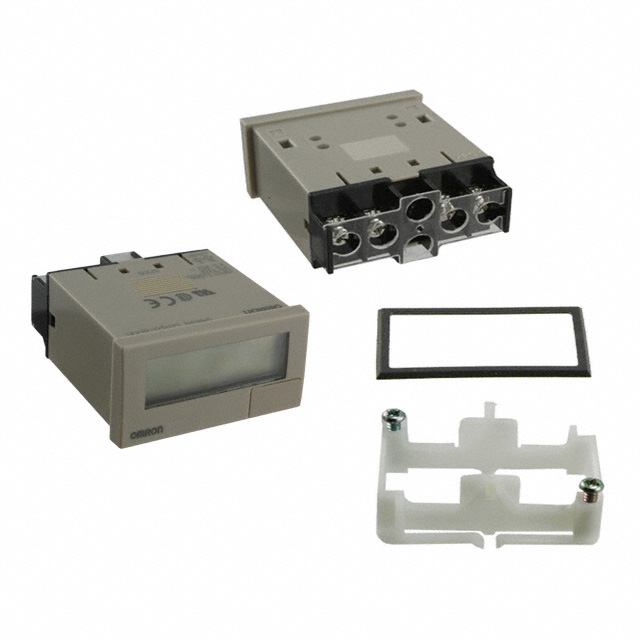

Omron Electronics Inc-EMC Div H7ER-NV	Screw Terminal	22.2 mm	45 mm	None Required (Battery Included)		Up	Tachometer	Voltage	1 kHz	Non-Resettable	55 °C	-10 °C	0.338 in	8.6 mm	IP66	0.143 lb	64.86 g	4	LCD - Black Characters

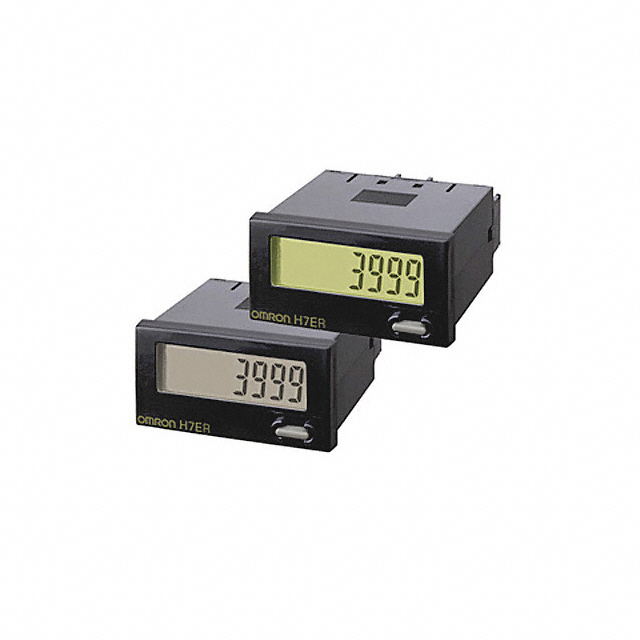

Omron Electronics Inc-EMC Div H7ER-NV-BH	Screw Terminal	22.2 mm	45 mm	None Required	24 VDC	Up	Tachometer	Voltage	1 kHz	Non-Resettable	55 °C	-10 °C	0.338 in	8.6 mm	IP66	0.143 lb	64.86 g	4
