50D45 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

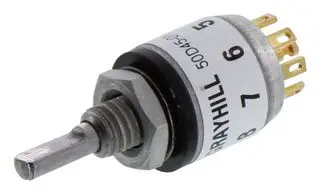

ROTARY SWITCH, 8 POSITION, 1 POLE, 45 °, 150 MA, 220 V, 50 SERIES
| Part | Panel Cutout Dimensions [diameter] | Circuit per Deck | Contact Finish | Depth Behind Panel [custom] | Number of Poles per Deck | Actuator Length [x] | Voltage Rating - DC | Index Stops | Current Rating (Amps) | Contact Timing | Mounting Type | Actuator Type | Voltage Rating - AC | Termination Style | Number of Decks [custom] | Angle of Throw | Number of Positions [Min] | Number of Positions [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

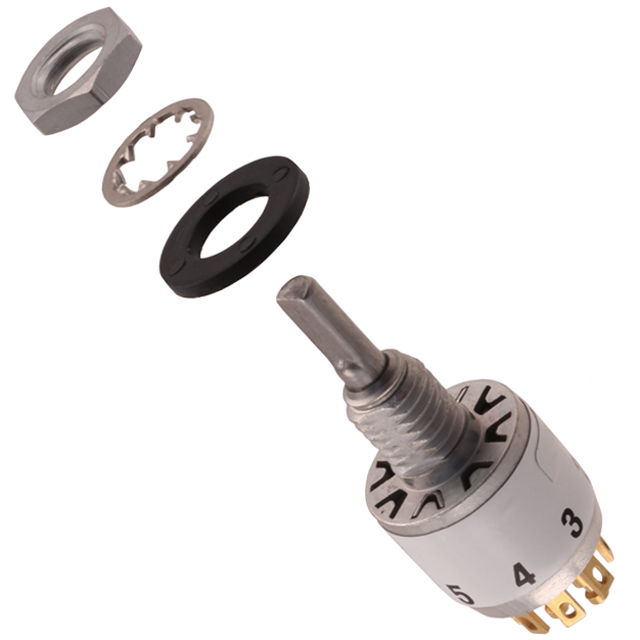

 Grayhill Inc. | 6.45 mm | SP8T | Gold | 18.77 mm | 1 | 9.53 mm | 28 V | Adjustable | 150 mA 200 mA | Non-Shorting (BBM) | Panel Mount | Flatted (3.17mm Dia) | 115 V | Solder Lug | 1 | 45 ° | ||

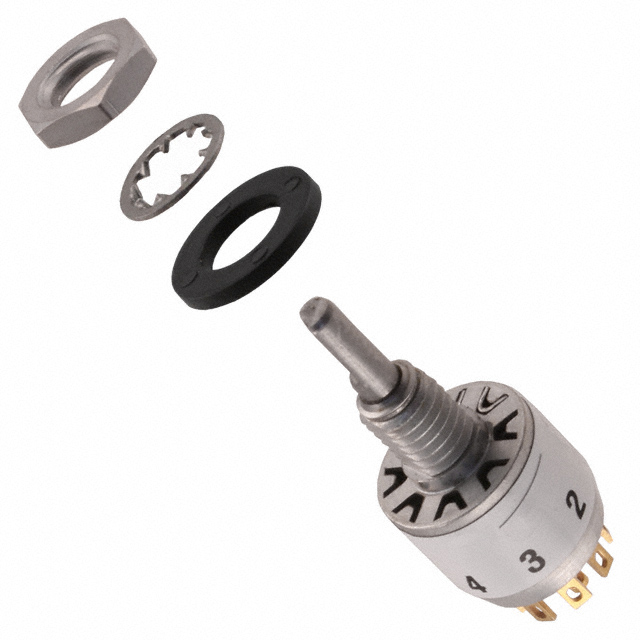

 Grayhill Inc. | 6.45 mm | DP4T | Gold | 18.77 mm | 2 | 9.53 mm | 28 V | Adjustable | 150 mA 200 mA | Non-Shorting (BBM) | Panel Mount | Flatted (3.17mm Dia) | 115 V | Solder Lug | 1 | 45 ° | 2 | 4 |
