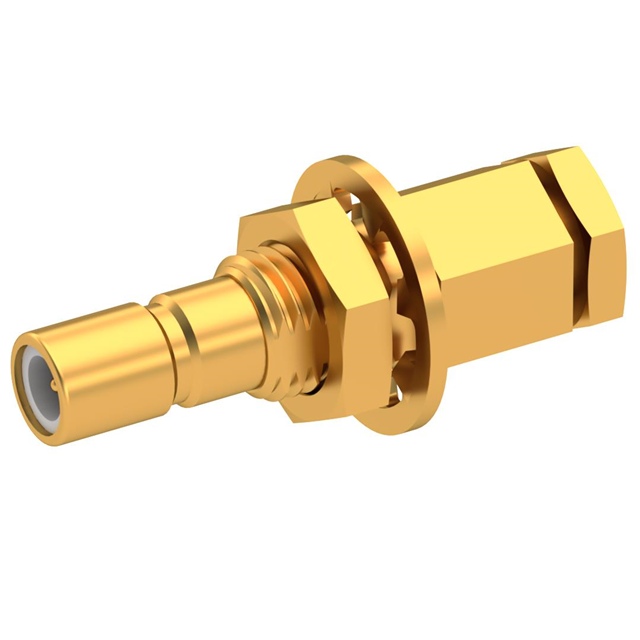

7203-1541 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SSMB M STR BHD CR .086
| Part | Dielectric Material | Includes | Mating Cycles | Body Finish | Voltage Rating | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Ports | Contact Termination | Center Contact Material | Cable Group | Mounting Feature | Shield Termination | Connector Style | Fastening Type | Connector Type | Frequency - Max [Max] | Housing Color | Impedance | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | 500 | Gold | 250 V | Brass | Gold | -65 ░C | 165 °C | 1 | Solder | Beryllium Copper | RG-405 (.085" Semi Rigid) | Bulkhead - Front Side Nut | Solder | SSMB | Snap-On | Jack Male Pin | 12.4 GHz | Gold | 50 Ohms | Panel Mount |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | 500 | Gold | 250 V | Brass | Gold | -65 ░C | 165 °C | 1 | Solder | Beryllium Copper | Bulkhead - Front Side Nut | Solder | SSMB | Snap-On | Jack Male Pin | 12.4 GHz | Gold | 50 Ohms | Panel Mount |
