TSA Series

Manufacturer: OptiFuse

Catalog

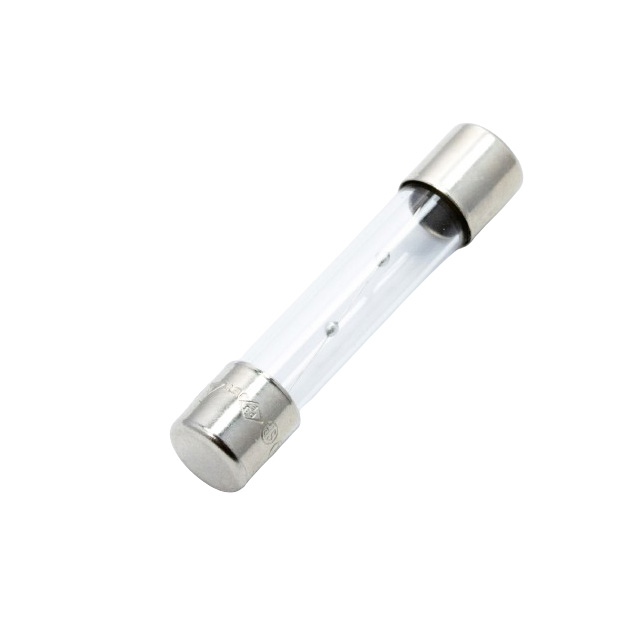

FUSE GLASS 1A 250VAC 3AB 3AG

Part	Melting I˛t	Mounting Type	Current Rating (Amps)	Response Time	Fuse Type	Voltage Rating - AC	Melting I²t	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Approval Agency	Breaking Capacity @ Rated Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case [x]	Package / Case
OptiFuse TSA-1A	3.373	Requires Holder	1 A	Slow Blow	Cartridge Glass	250 V	3.373	31.8 mm	1.252 "	6.35 mm	0.25 "	cULus UL 248	100 A	-55 C	125 °C	0.25 in	3AB 3AG
OptiFuse TSA-4A	32.96	Requires Holder	4 A	Slow Blow	Cartridge Glass	250 V	32.96	31.8 mm	1.252 "	6.35 mm	0.25 "	cULus UL 248	200 A	-55 C	125 °C	0.25 in	3AB 3AG
OptiFuse TSA-1.6A	11.52	Requires Holder	1.6 A	Slow Blow	Cartridge Glass	250 V	11.52 I²t	31.8 mm	1.252 "	6.35 mm	0.25 "	cULus UL 248	100 A	-55 C	125 °C	0.25 in	3AB 3AG
OptiFuse TSA-600MA	3.803	Requires Holder	600 mA	Slow Blow	Cartridge Glass	250 V	3.803 I²t	31.8 mm	1.252 "	6.35 mm	0.25 "	cULus UL 248	100 A	-55 C	125 °C	0.25 in	3AB 3AG
OptiFuse TSA-300MA	0.82	Requires Holder	0.3 A	Slow Blow	Cartridge Glass	250 V		31.8 mm	1.252 "	6.35 mm	0.25 "	cULus UL 248	100 A	-55 C	125 °C	0.25 in	3AB 3AG
OptiFuse TSA-10A	2427	Requires Holder	10 A	Slow Blow	Cartridge Glass	250 V	2427	31.8 mm	1.252 "	6.35 mm	0.25 "	cULus UL 248	200 A	-55 C	125 °C	0.25 in	3AB 3AG
OptiFuse TSA-315MA	0.91	Requires Holder	0.315 A	Slow Blow	Cartridge Glass	250 V	0.91	31.8 mm	1.252 "	6.35 mm	0.25 "	cULus UL 248	100 A	-55 C	125 °C	0.25 in	3AB 3AG
OptiFuse TSA-2.5A	11.43	Requires Holder	2.5 A	Slow Blow	Cartridge Glass	250 V	11.43 I²t	31.8 mm	1.252 "	6.35 mm	0.25 "	cULus UL 248	100 A	-55 C	125 °C	0.25 in	3AB 3AG
OptiFuse TSA-800MA	1.542	Requires Holder	800 mA	Slow Blow	Cartridge Glass	250 V	1.542 I²t	31.8 mm	1.252 "	6.35 mm	0.25 "	cULus UL 248	100 A	-55 C	125 °C	0.25 in	3AB 3AG
OptiFuse TSA-3A	18.71	Requires Holder	3 A	Slow Blow	Cartridge Glass	250 V	18.71	31.8 mm	1.252 "	6.35 mm	0.25 "	cULus UL 248	100 A	-55 C	125 °C	0.25 in	3AB 3AG
