SIP110 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

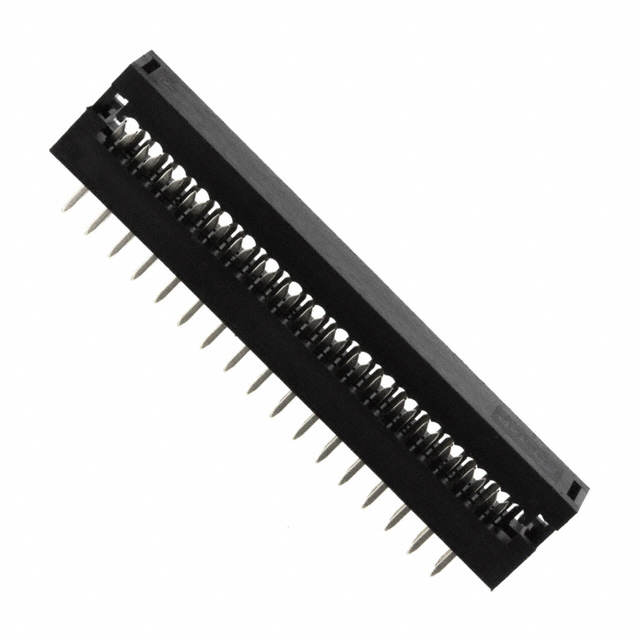

CONN DIP HDR IDC 30P 28AWG VERT
| Part | Number of Positions Loaded | Cable Pitch | Cable Pitch | Wire Gauge | Number of Positions | Row Spacing | Row Spacing | Connector Type | Board-Side Pitch | Board-Side Pitch | Mounting Type | Cable Termination | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Number of Rows [custom] | Features | Contact Finish Thickness | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | All | 1.27 mm | 0.05 in | 28 AWG | 30 | 2.54 mm | 0.1 " | DIP Header Ribbon Cable | 2.54 mm | 0.1 " | Through Hole | IDC | Black | 2.54 µm | 100 µin | Tin | 2 | Cover | ||
Sullins Connector Solutions | All | 1.27 mm | 0.05 in | 28 AWG | 26 | 2.54 mm | 0.1 " | DIP Header Ribbon Cable | 2.54 mm | 0.1 " | Kinked Pin Through Hole | IDC | Black | 0.38 µm | 15 µin | Gold | 2 | Cover | ||
 Sullins Connector Solutions | All | 1.27 mm | 0.05 in | 28 AWG | 2.54 mm | 0.1 " | DIP Header Ribbon Cable | 2.54 mm | 0.1 " | Press-Fit Through Hole | IDC | Black | Gold | 2 | Feed Through | Flash | 34 | |||
Sullins Connector Solutions | All | 1.27 mm | 0.05 in | 28 AWG | 8 | 2.54 mm | 0.1 " | DIP Header Ribbon Cable | 2.54 mm | 0.1 " | Kinked Pin Through Hole | IDC | Black | 0.38 µm | 15 µin | Gold | 2 | Cover | ||
Sullins Connector Solutions | All | 1.27 mm | 0.05 in | 28 AWG | 60 | 2.54 mm | 0.1 " | DIP Header Ribbon Cable | 2.54 mm | 0.1 " | Kinked Pin Through Hole | IDC | Black | 0.38 µm | 15 µin | Gold | 2 | Cover | ||
Sullins Connector Solutions | All | 1.27 mm | 0.05 in | 28 AWG | 16 | 2.54 mm | 0.1 " | DIP Header Ribbon Cable | 2.54 mm | 0.1 " | Through Hole | IDC | Black | 0.38 µm | 15 µin | Gold | 2 | Cover | ||
Sullins Connector Solutions | All | 1.27 mm | 0.05 in | 28 AWG | 12 | 2.54 mm | 0.1 " | DIP Header Ribbon Cable | 2.54 mm | 0.1 " | Kinked Pin Through Hole | IDC | Black | Gold | 2 | Cover | Flash | |||
Sullins Connector Solutions | All | 1.27 mm | 0.05 in | 28 AWG | 20 | 2.54 mm | 0.1 " | DIP Header Ribbon Cable | 2.54 mm | 0.1 " | Kinked Pin Through Hole | IDC | Black | Gold | 2 | Cover | Flash | |||
Sullins Connector Solutions | All | 1.27 mm | 0.05 in | 28 AWG | 28 | 2.54 mm | 0.1 " | DIP Header Ribbon Cable | 2.54 mm | 0.1 " | Through Hole | IDC | Black | 2.54 µm | 100 µin | Tin | 2 | Cover | ||
Sullins Connector Solutions | All | 1.27 mm | 0.05 in | 28 AWG | 20 | 2.54 mm | 0.1 " | DIP Header Ribbon Cable | 2.54 mm | 0.1 " | Kinked Pin Through Hole | IDC | Black | 2.54 µm | 100 µin | Tin | 2 | Cover |
