154661 Series
Manufacturer: Ledex Dormeyer Saia, a Division of Johnson Electric
Beta
⌘K

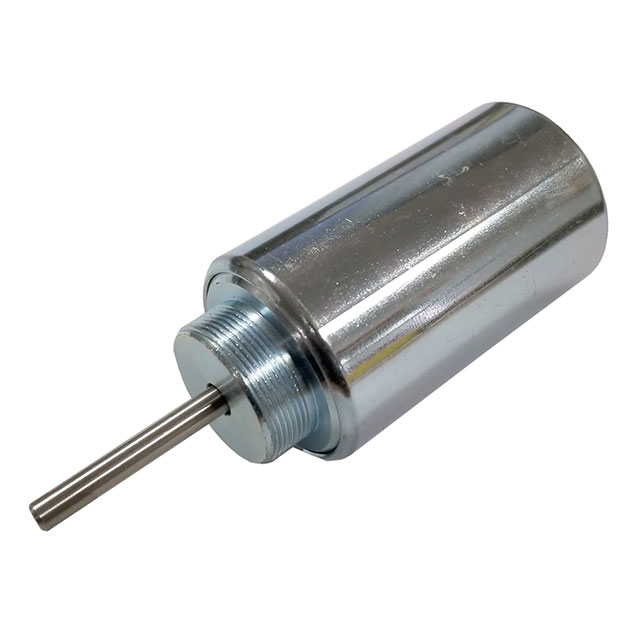

STA SIZE 150 PUSH - 24 VDC CD
| Part | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | DC Resistance (DCR) | Mounting Type | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Bushing Thread | Technology | Termination Style | Shaft Detail | Duty Cycle | Voltage - Rated | Power (Watts) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ledex Dormeyer Saia, a Division of Johnson Electric | 1.52 " | 65 mm | 2.56 in | 38.6 mm | 36.9 Ohm | Panel Mount | 4.75 mm | 0.187 in | 1-27 UNS | Electromechanical | Wire Leads | Round | Continuous | 25 VDC | 17 W | Closed Frame (Push) Tubular |
Ledex Dormeyer Saia, a Division of Johnson Electric | 1.52 " | 65 mm | 2.56 in | 38.6 mm | 9.3 Ohm | Panel Mount | 4.75 mm | 0.187 in | 1-27 UNS | Electromechanical | Wire Leads | Round | Continuous | 12.4 VDC | 17 W | Closed Frame (Push) Tubular |
