284047 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 16POS 5.08MM

Part	Torque - Screw	Torque - Screw	Number of Levels	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Screw Size	Plug Wire Entry	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Wire Strip Length [Max]	Wire Strip Length [Min]	Mounting Type	Number of Positions	Insulation Height	Insulation Height	Voltage - UL	Features	Pitch [x]	Pitch [x]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Contact Mating Finish	Termination Style	Positions Per Level	Contact Material	Type	Number of Positions	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]

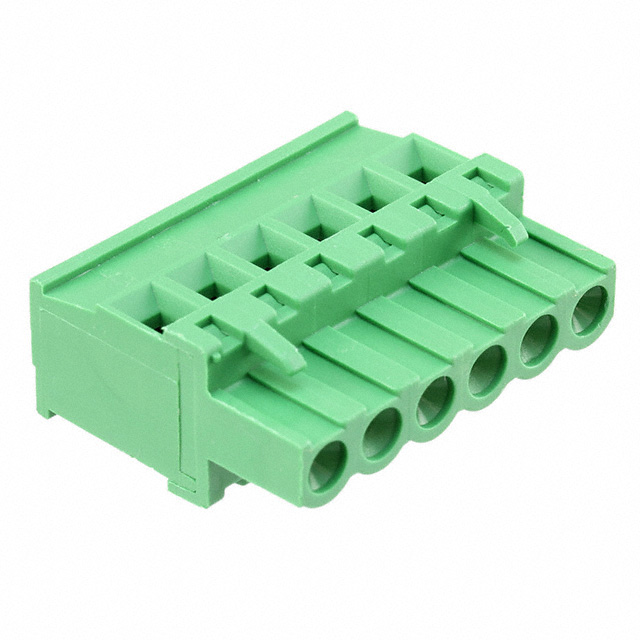

TE Connectivity Raychem Cable Protection 1-284047-6	0.79 Nm	7 Lb-In	1	30 AWG	12 AWG	M3	90 °	UL94 V-0	-40 °C	110 °C	Green	7.5 mm	6 mm	Free Hanging (In-Line)	16	25 mm	0.984 in	300 V	Retention Latches (Wire Side)	0.2 in	5.08 mm	0.05 mm²	3 mm²	Tin	Screw - Rising Cage Clamp	16	Phosphor Bronze	Plug Female Sockets
TE Connectivity Raychem Cable Protection 284047-6	0.79 Nm	7 Lb-In	1	30 AWG	12 AWG	M3	90 °	UL94 V-0	-40 °C	110 °C	Green	7.5 mm	6 mm	Free Hanging (In-Line)		25 mm	0.984 in	300 V	Retention Latches (Wire Side)	0.2 in	5.08 mm	0.05 mm²	3 mm²	Tin	Screw - Rising Cage Clamp	6	Phosphor Bronze	Plug Female Sockets	6
TE Connectivity Raychem Cable Protection 3-284047-3	0.79 Nm	7 Lb-In	1	30 AWG	12 AWG	M3	90 °	UL94 V-0	-40 °C	110 °C	Green	7.5 mm	6 mm	Free Hanging (In-Line)		25 mm	0.984 in	300 V	Positions Stamped Retention Latches (Wire Side)	0.2 in	5.08 mm			Tin	Screw - Rising Cage Clamp	12	Phosphor Bronze	Plug Female Sockets	12	3 mm˛	0.05 mm˛
TE Connectivity Raychem Cable Protection 4-284047-1	0.79 Nm	7 Lb-In	1	30 AWG	12 AWG	M3	90 °	UL94 V-0	-40 °C	110 °C	Green	7.5 mm	6 mm	Free Hanging (In-Line)		25 mm	0.984 in	300 V	Positions Stamped Retention Latches (Wire Side)	0.2 in	5.08 mm	0.05 mm²	3 mm²	Tin	Screw - Rising Cage Clamp	21	Phosphor Bronze	Plug Female Sockets	21
TE Connectivity Raychem Cable Protection 3-284047-5	0.79 Nm	7 Lb-In	1	30 AWG	12 AWG	M3	90 °	UL94 V-0	-40 °C	110 °C	Green	7.5 mm	6 mm	Free Hanging (In-Line)	16	25 mm	0.984 in	300 V	Positions Stamped Retention Latches (Wire Side)	0.2 in	5.08 mm	0.05 mm²	3 mm²	Tin	Screw - Rising Cage Clamp	16	Phosphor Bronze	Plug Female Sockets
TE Connectivity Raychem Cable Protection 1-284047-8	0.79 Nm	7 Lb-In	1	30 AWG	12 AWG	M3	90 °	UL94 V-0	-40 °C	110 °C	Green	7.5 mm	6 mm	Free Hanging (In-Line)		25 mm	0.984 in	300 V	Retention Latches (Wire Side)	0.2 in	5.08 mm	0.05 mm²	3 mm²	Tin	Screw - Rising Cage Clamp	18	Phosphor Bronze	Plug Female Sockets	18

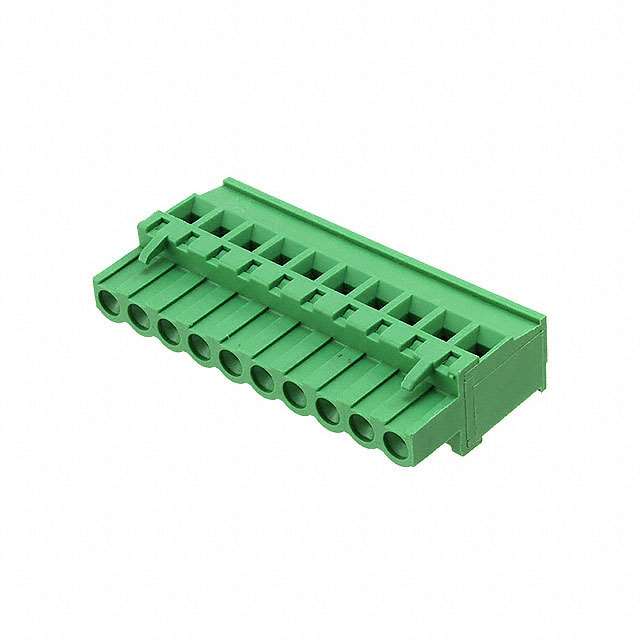

TE Connectivity Raychem Cable Protection 1-284047-0	0.79 Nm	7 Lb-In	1	30 AWG	12 AWG	M3	90 °	UL94 V-0	-40 °C	110 °C	Green	7.5 mm	6 mm	Free Hanging (In-Line)		25 mm	0.984 in	300 V	Retention Latches (Wire Side)	0.2 in	5.08 mm	0.05 mm²	3 mm²	Tin	Screw - Rising Cage Clamp	10	Phosphor Bronze	Plug Female Sockets	10
TE Connectivity Raychem Cable Protection 284047-7	0.79 Nm	7 Lb-In	1	30 AWG	12 AWG	M3	90 °	UL94 V-0	-40 °C	110 °C	Green	7.5 mm	6 mm	Free Hanging (In-Line)		25 mm	0.984 in	300 V	Retention Latches (Wire Side)	0.2 in	5.08 mm			Tin	Screw - Rising Cage Clamp	7	Phosphor Bronze	Plug Female Sockets	7	3 mm˛	0.05 mm˛
