B12KB Series

Catalog

PROCESS SEALED SUBMINIATURE ANTISTATIC TOGGLE

Part	Electrical Life	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage Rating - DC	Circuit	Switch Function	Illumination	Termination Style	Current Rating (Amps)	Features	Actuator Length [x]	Actuator Type	Voltage Rating - AC	Bushing Thread
NKK Switches B12KB-AA	50000 Cycles	Polyamide (PA) Nylon	85 °C	-30 ░C	Through Hole	28 V	SPDT	On-On	Non-Illuminated	PC Pin	0.4 VA	Black Actuator	9.4 mm	Snap On Paddle	28 V	Unthreaded
NKK Switches B12KB-BB	50000 Cycles	Brass Nickel Plated	85 °C	-30 ░C	Through Hole	28 V	SPDT	On-On	Non-Illuminated	PC Pin	0.4 VA	White Actuator		Snap On Paddle	28 V	Unthreaded
NKK Switches B12KB-AB	50000 Cycles	Brass Nickel Plated	85 °C	-30 ░C	Through Hole	28 V	SPDT	On-On	Non-Illuminated	PC Pin	0.4 VA	White Actuator	9.4 mm	Snap On Paddle	28 V	Unthreaded
NKK Switches B12KB-AC	50000 Cycles	Brass Nickel Plated	85 °C	-30 ░C	Through Hole	28 V	SPDT	On-On	Non-Illuminated	PC Pin	0.4 VA	Red Actuator	9.4 mm	Snap On Paddle	28 V	Unthreaded

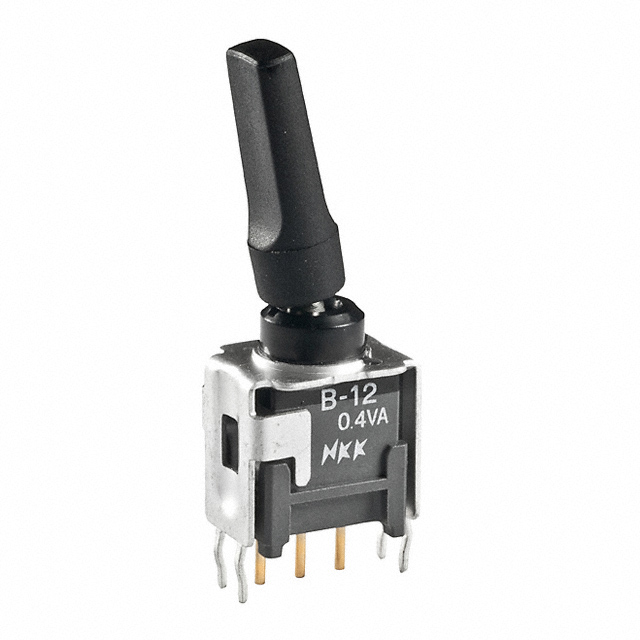

NKK Switches B12KB-BA	50000 Cycles	Polyamide (PA) Nylon	85 °C	-30 ░C	Through Hole	28 V	SPDT	On-On	Non-Illuminated	PC Pin	0.4 VA	Black Actuator		Snap On Paddle	28 V	Unthreaded
