282857 Series

Catalog

TERM BLK 24P SIDE ENT 5.08MM PCB

Part	Current	Clamp Material - Plating	Wire Gauge [Max]	Wire Gauge [Min]	Torque - Screw	Torque - Screw	Screw Thread	Mating Orientation	Wire Termination	Features	Number of Levels	Pitch [x]	Pitch [x]	Screw Material - Plating	Voltage	Mounting Type	Contact Material - Plating [custom]	Color	Positions Per Level
TE Connectivity Raychem Cable Protection 2-282857-4	24 A	Brass - Nickel Plated	30 AWG	12 AWG	0.79 Nm	7 Lb-In	M3	Horizontal with Board	Screw - Rising Cage Clamp	Interlocking (Side)	1	0.2 in	5.08 mm	Brass - Nickel Plated	300 V	Through Hole	Brass - Tin Plated	Green

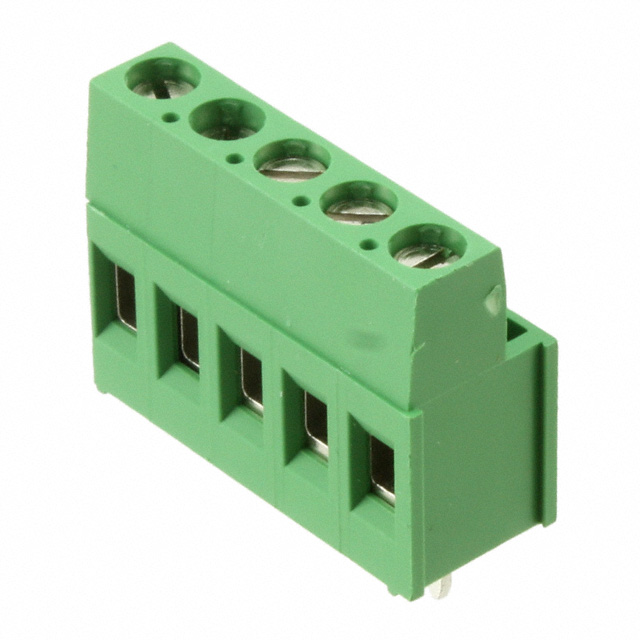

TE Connectivity Raychem Cable Protection 282857-5	24 A	Brass - Nickel Plated	30 AWG	12 AWG	0.79 Nm	7 Lb-In	M3	Horizontal with Board	Screw - Rising Cage Clamp	Interlocking (Side)	1	0.2 in	5.08 mm	Brass - Nickel Plated	300 V	Through Hole	Brass - Tin Plated	Green	5

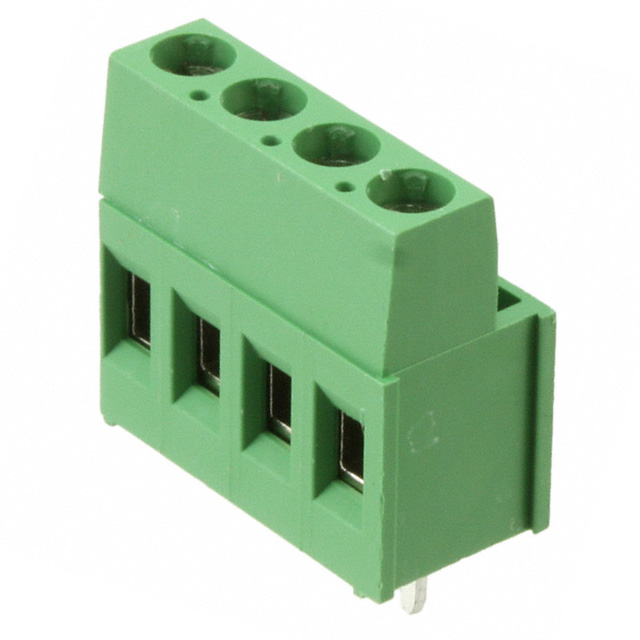

TE Connectivity Raychem Cable Protection 282857-4	24 A	Brass - Nickel Plated	30 AWG	12 AWG	0.79 Nm	7 Lb-In	M3	Horizontal with Board	Screw - Rising Cage Clamp	Interlocking (Side)	1	0.2 in	5.08 mm	Brass - Nickel Plated	300 V	Through Hole	Brass - Tin Plated	Green	4
