325-028 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 28POS 0.100
| Part | Material - Insulation | Termination Rows | Color | Contact Material | Read Out | Gender | Mounting Type | Contact Finish | Number of Rows | Number of Positions/Bay/Row | Flange Feature | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Card Type | Number of Positions | Pitch | Pitch | Card Thickness | Card Thickness | Contact Finish Thickness | Contact Finish Thickness | Termination Rows [custom] | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

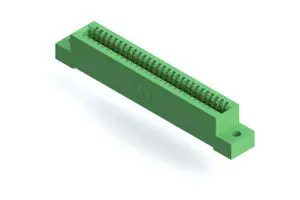

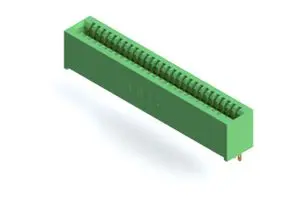

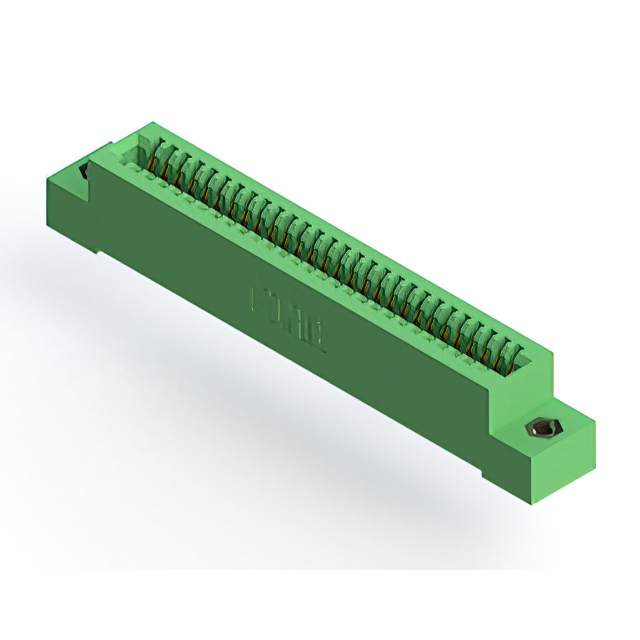

 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Copper Alloy | Single | Female | Through Hole | Gold | 1 | 28 | Flush Mount M3 Threaded Insert Top Opening | Cantilever | -65 ░C | 125 °C | Solder | Non Specified - Single Edge | 28 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Copper Alloy | Single | Female | Through Hole | Gold | 1 | 28 | Cantilever | -65 ░C | 125 °C | Solder Eyelet(s) | Non Specified - Single Edge | 28 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | |||||

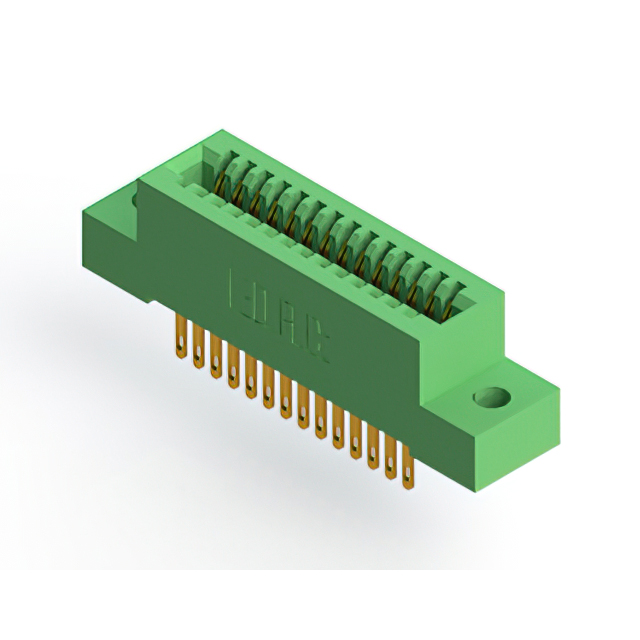

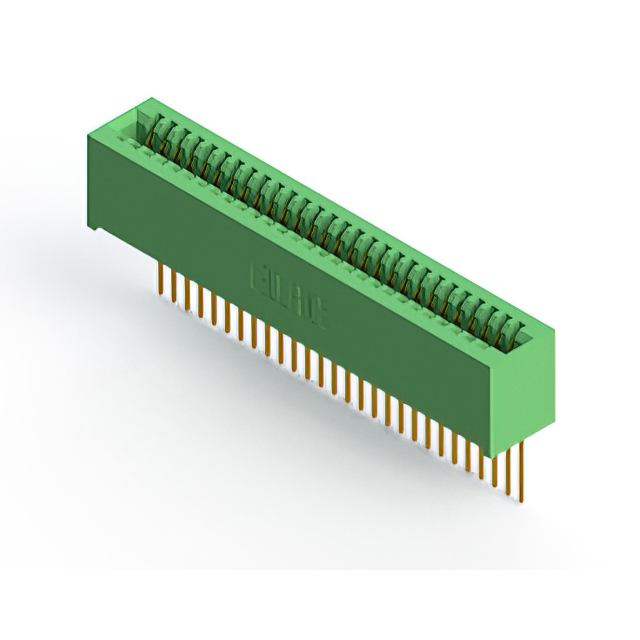

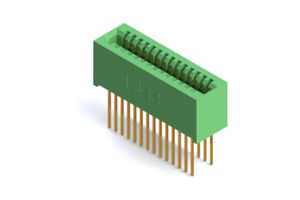

EDAC Inc. | Diallyl Phthalate (DAP) | Green | Copper Alloy | Dual | Female | Through Hole | Gold | 14 | Flush Mount M3 Threaded Insert Top Opening | Cantilever | -65 ░C | 125 °C | Wire Wrap | Non Specified - Dual Edge | 28 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 2 | 2 | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | Green | Copper Alloy | Dual | Female | Through Hole | Gold | 14 | Flush Mount M3 Threaded Insert Top Opening | Cantilever | -65 ░C | 125 °C | Solder | Non Specified - Dual Edge | 28 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 2 | 2 | ||||
EDAC Inc. | Diallyl Phthalate (DAP) | Green | Copper Alloy | Dual | Female | Through Hole | Gold | 14 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | -65 ░C | 125 °C | Wire Wrap | Non Specified - Dual Edge | 28 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 2 | 2 | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Copper Alloy | Dual | Female | Through Hole | Gold | 14 | Cantilever | -65 ░C | 125 °C | Wire Wrap | Non Specified - Dual Edge | 28 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 2 | 2 | |||||
EDAC Inc. | Diallyl Phthalate (DAP) | Green | Copper Alloy | Dual | Female | Through Hole | Gold | 14 | Flush Mount Top Opening Unthreaded | Cantilever | -65 ░C | 125 °C | Solder | Non Specified - Dual Edge | 28 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 2 | 2 | 0.16 " | 4.06 mm | ||
EDAC Inc. | Diallyl Phthalate (DAP) | Green | Copper Alloy | Dual | Female | Through Hole | Gold | 14 | Cantilever | -65 ░C | 125 °C | Solder | Non Specified - Dual Edge | 28 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 2 | 2 | |||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | Green | Copper Alloy | Single | Female | Through Hole | Gold | 1 | 28 | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | -65 ░C | 125 °C | Solder Eyelet(s) | Non Specified - Single Edge | 28 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Green | Copper Alloy | Dual | Female | Through Hole | Gold | 14 | Flush Mount Top Opening Unthreaded | Cantilever | -65 ░C | 125 °C | Solder Eyelet(s) | Non Specified - Dual Edge | 28 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | 0.25 Ám | 10 Áin | 2 | 2 | 0.16 " | 4.06 mm |
