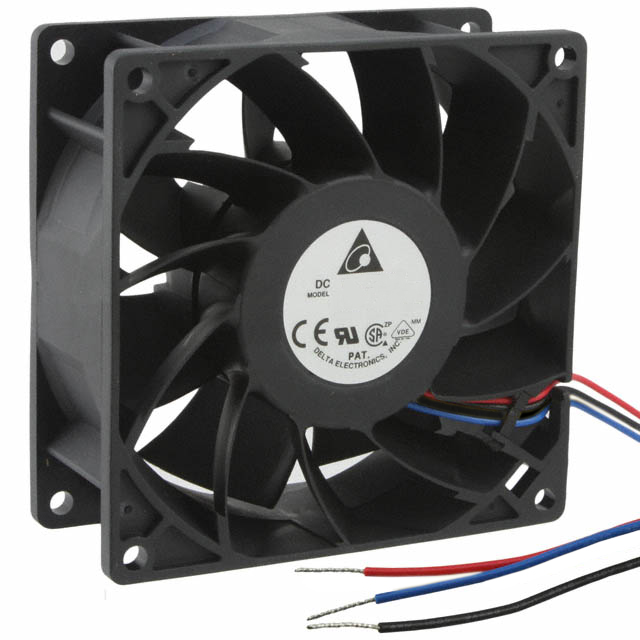

FFB0948 Series

Catalog

FAN AXIAL 92X38MM 48VDC WIRE

Part	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Current Rating (Amps)	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Width [y]	Fan Type	RPM	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Power (Watts)	Static Pressure	Static Pressure	Termination	Bearing Type	Ingress Protection	Weight	Weight	Noise	Air Flow	Air Flow	Features

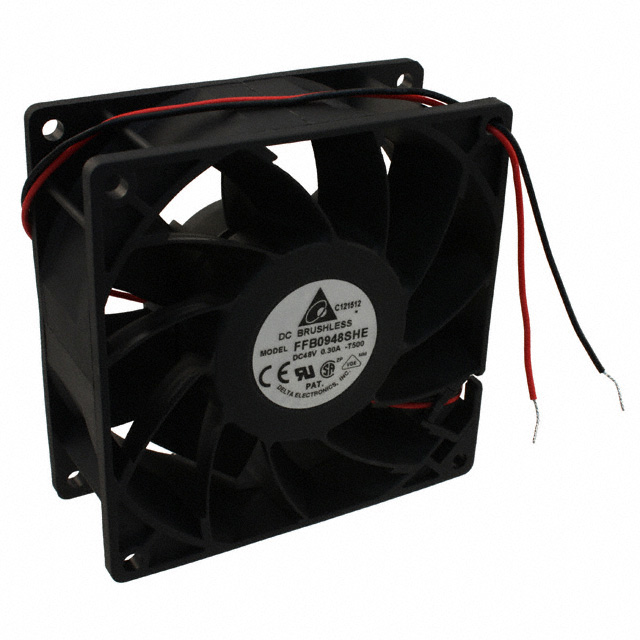

Delta Electronics FFB0948SHE-T500	70000 Hrs	28 V	56 VDC	Plastic	0.2 A	Plastic	-10 °C	60 °C	48 VDC	38 mm	Tubeaxial	4400 RPM	92 mm	92 mm	CE CSA UL VDE	9.6 W	142.5 Pa	0.572 in H2O	2 Wire Leads	Ball	IP55 - Dust Protected Water Resistant	0.437 lb	198 g	52.5 dB(A)	100.3 CFM	2.81 m³/min

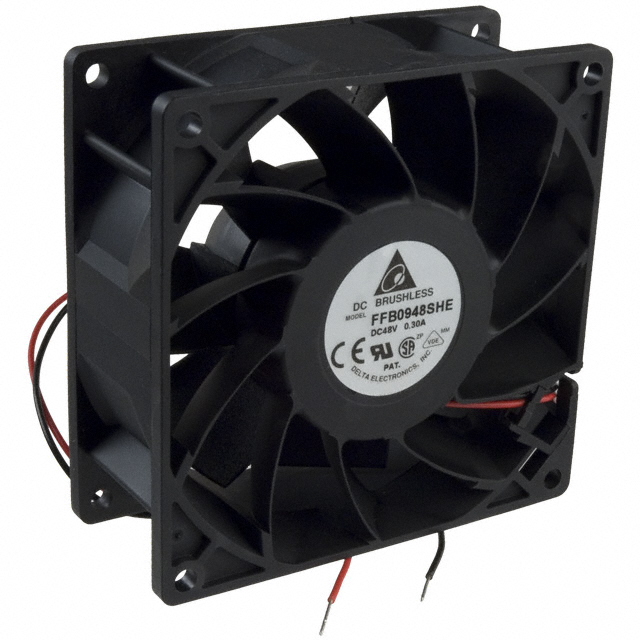

Delta Electronics FFB0948SHE	70000 Hrs	28 V	53 VDC	Plastic	0.2 A	Plastic	-10 °C	60 °C	48 VDC	38 mm	Tubeaxial	4400 RPM	92 mm	92 mm	CE CSA UL VDE	9.6 W	142.5 Pa	0.572 in H2O	2 Wire Leads	Ball		0.437 lb	198 g	52.5 dB(A)	100.3 CFM	2.81 m³/min
Delta Electronics FFB0948VH	70000 Hrs	28 V	53 VDC	Plastic	0.17 A	Plastic	-10 °C	60 °C	48 VDC	25.4 mm	Tubeaxial	3700 RPM	92 mm	92 mm	CE CSA UL VDE	8.16 W	79.5 Pa	0.319 in H2O	2 Wire Leads	Ball		0.286 lb	129.73 g	48.2 dB(A)	82 CFM	2.3 m³/min

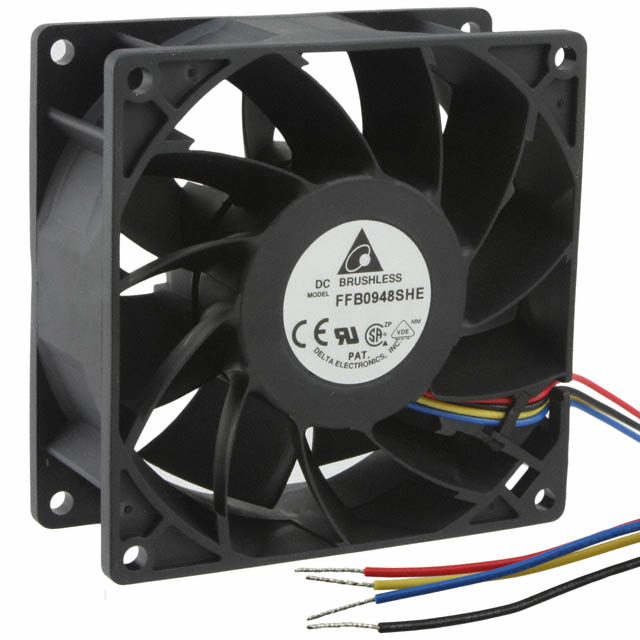

Delta Electronics FFB0948SHE-TP28	70000 Hrs	32 VDC	56 VDC	Plastic	0.2 A	Plastic	-10 °C	60 °C	48 VDC	38 mm	Tubeaxial	4400 RPM	92 mm	92 mm	CE CSA UL VDE	9.6 W	142.5 Pa	0.572 in H2O	4 Wire Leads	Ball		0.437 lb	198 g	52.5 dB(A)	100.3 CFM	2.81 m³/min	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Delta Electronics FFB0948VHE
Delta Electronics FFB0948VH-F00	70000 Hrs	28 V	53 VDC	Plastic	0.17 A	Plastic	-10 °C	60 °C	48 VDC	25.4 mm	Tubeaxial	3700 RPM	92 mm	92 mm	CE CSA UL VDE	8.16 W	79.5 Pa	0.319 in H2O	3 Wire Leads	Ball		0.286 lb	129.73 g	48.2 dB(A)	82 CFM	2.3 m³/min	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics FFB0948SHE-F00	70000 Hrs	28 V	53 VDC	Plastic	0.2 A	Plastic	-10 °C	60 °C	48 VDC	38 mm	Tubeaxial	4400 RPM	92 mm	92 mm	CE CSA UL VDE	9.6 W	142.5 Pa	0.572 in H2O	3 Wire Leads	Ball		0.437 lb	198 g	52.5 dB(A)	100.3 CFM	2.81 m³/min	Locked Rotor Protection Speed Sensor (Tach)
