M2012BB Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Actuator Type	Termination Style	Circuit	Current Rating (Amps)	Actuator Length [x]	Ingress Protection	Bushing Thread	Illumination	Switch Function	Panel Cutout Dimensions [diameter]	Mounting Type

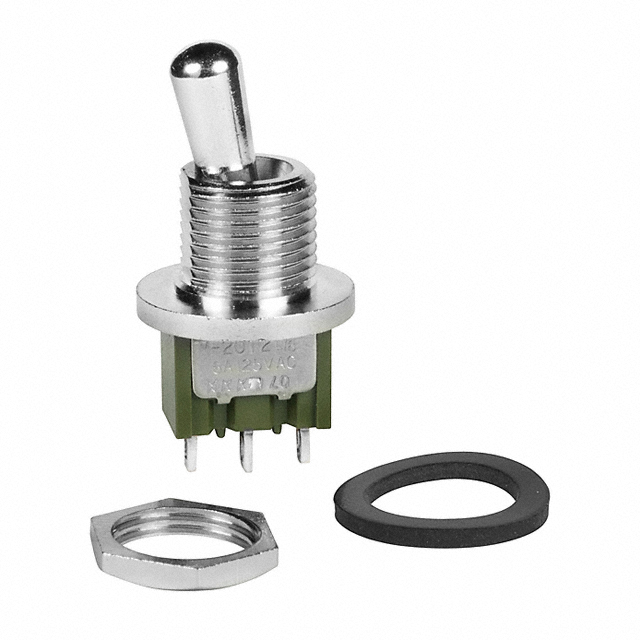

NKK Switches M2012BB3W01	Brass Chrome Plated	25000 Steps	125 V	Epoxy Sealed Terminals	85 °C	-30 ░C	30 V	Standard Round	Solder Lug	SPDT	4 A 6 A	11.5 mm	IP67 - Dust Tight Waterproof	M12 x 1	Non-Illuminated	On-On	12.5 mm	Panel Mount
NKK Switches M2012BB3A01	Brass Chrome Plated	25000 Steps	125 V	Epoxy Sealed Terminals	85 °C	-30 ░C	30 V	Standard Round	Solder Lug	SPDT	4 A 6 A	11.5 mm	IP67 - Dust Tight Waterproof	M12 x 1	Non-Illuminated	On-On	12.5 mm	Panel Mount
NKK Switches M2012BB3W01-RG	Brass Chrome Plated	25000 Steps	125 V	Blue Cap	85 °C	-30 ░C	30 V	Standard Round with Cap	Solder Lug	SPDT	4 A 6 A	12.3 mm	IP67 - Dust Tight Waterproof	M12 x 1	Non-Illuminated	On-On	12.5 mm	Panel Mount
NKK Switches M2012BB1W40-AT402S	Brass Chrome Plated	25000 Steps	125 V		85 °C	-30 ░C	30 V	Standard Round	PC Pin	SPDT	4 A 6 A	11.5 mm		M12 x 1	Non-Illuminated	On-On	12.5 mm	Panel Mount Right Angle Vertical

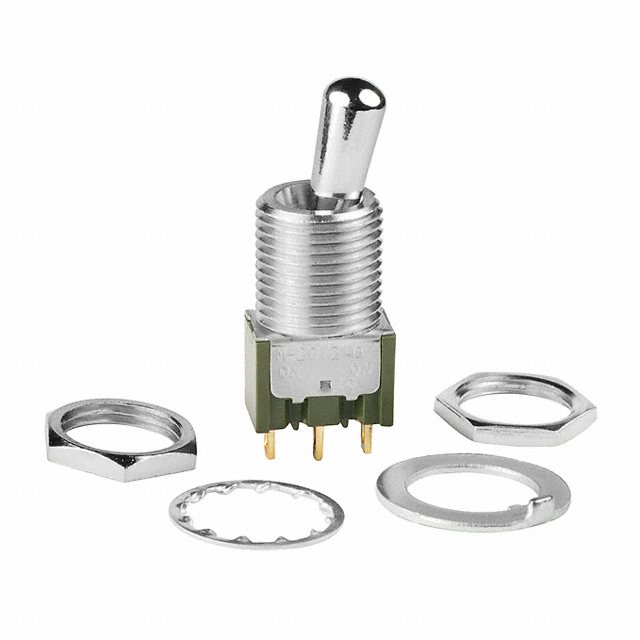

NKK Switches M2012BB1G01	Brass Chrome Plated	50000 Cycles	28 V	Epoxy Sealed Terminals	85 °C	-30 ░C	28 V	Standard Round	Solder Lug	SPDT	0.4 VA	11.5 mm		M12 x 1	Non-Illuminated	On-On	12.5 mm	Panel Mount

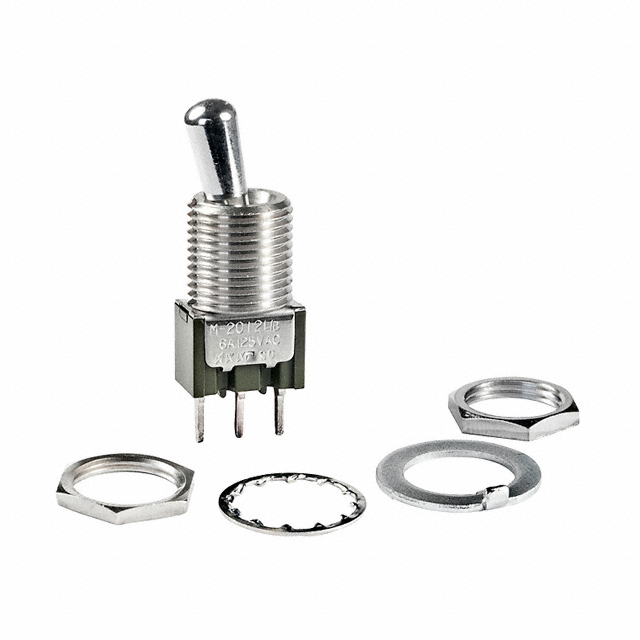

NKK Switches M2012BB1W03	Brass Chrome Plated	25000 Steps	125 V	Epoxy Sealed Terminals	85 °C	-30 ░C	30 V	Standard Round	PC Pin	SPDT	4 A 6 A	11.5 mm		M12 x 1	Non-Illuminated	On-On	12.5 mm	Panel Mount

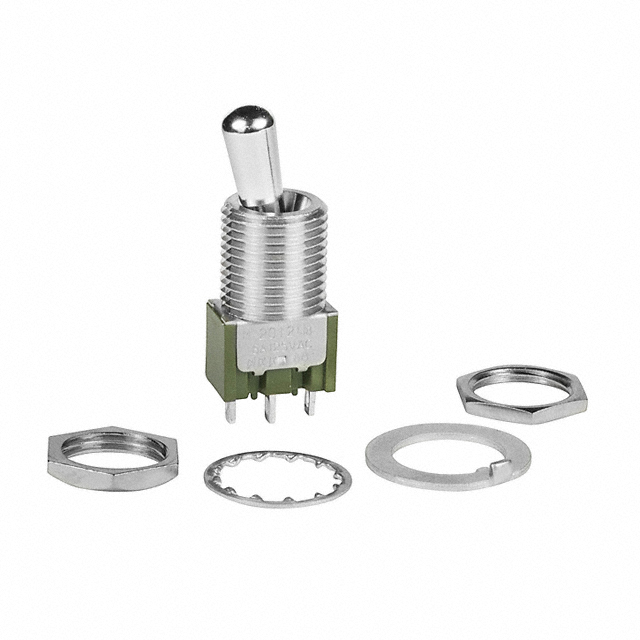

NKK Switches M2012BB1W01	Brass Chrome Plated	25000 Steps	125 V	Epoxy Sealed Terminals	85 °C	-30 ░C	30 V	Standard Round	Solder Lug	SPDT	4 A 6 A	11.5 mm		M12 x 1	Non-Illuminated	On-On	12.5 mm	Panel Mount
NKK Switches M2012BB3W03	Brass Chrome Plated	25000 Steps	125 V	Epoxy Sealed Terminals	85 °C	-30 ░C	30 V	Standard Round	PC Pin	SPDT	4 A 6 A	11.5 mm	IP67 - Dust Tight Waterproof	M12 x 1	Non-Illuminated	On-On	12.5 mm	Panel Mount
