TL1100 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Actuator Material	Switch Travel	Mounting Type	Actuator Type	Termination Style	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Illumination	Switch Function	Actuator Length, Right Angle	Outline [y]	Outline [x]	Actuator Orientation	Contact Rating @ Voltage	Features	Actuator Length, Right Angle [x]	Actuator Height off PCB, Vertical [z]
E-Switch TL1100CF160Q.08BLK	100000 Cycles	Polyester	0.3 mm	Right Angle Through Hole	Round Button	PC Pin	SPST-NO	-20 ░C	70 °C	160 gf	Non-Illuminated	Off-Mom	9.6 mm	9.9 mm	12 mm	Side Actuated	0.05 A 12 VDC	Tactile Feedback
E-Switch TL1100CF160Q4JBLK	100000 Cycles	Polyester	0.3 mm	Right Angle Through Hole	Square Button	PC Pin	SPST-NO	-20 ░C	70 °C	160 gf	Non-Illuminated	Off-Mom		9.9 mm	12 mm	Side Actuated	0.05 A 12 VDC	Tactile Feedback	9.15 mm
E-Switch TL1100CF260Q.08RED	100000 Cycles	Polyester	0.3 mm	Right Angle Through Hole	Round Button	PC Pin	SPST-NO	-20 ░C	70 °C	260 gf	Non-Illuminated	Off-Mom	9.6 mm	9.9 mm	12 mm	Side Actuated	0.05 A 12 VDC	Tactile Feedback
E-Switch TL1100BF260Q	100000 Cycles	Polyester	0.3 mm	Through Hole	Standard	PC Pin	SPST-NO	-20 ░C	70 °C	260 gf	Non-Illuminated	Off-Mom		12 mm	12 mm	Top Actuated	0.05 A 12 VDC	Tactile Feedback		4.55 mm
E-Switch TL1100CF160Q6JBLK	100000 Cycles	Polyester	0.3 mm	Right Angle Through Hole	Square Button	PC Pin	SPST-NO	-20 ░C	70 °C	160 gf	Non-Illuminated	Off-Mom	8.65 mm	9.9 mm	12 mm	Side Actuated	0.05 A 12 VDC	Tactile Feedback

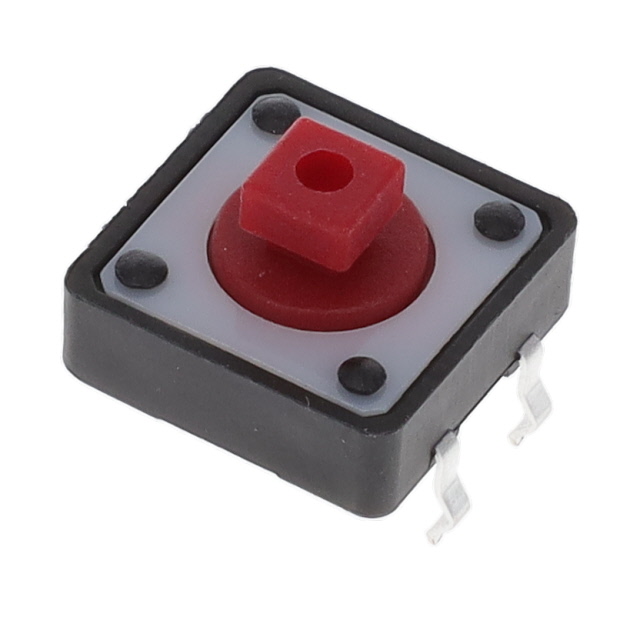

E-Switch TL1100AF260Q	100000 Cycles	Polyester	0.3 mm	Through Hole	Plunger for Cap	PC Pin	SPST-NO	-20 ░C	70 °C	260 gf	Non-Illuminated	Off-Mom		12 mm	12 mm	Top Actuated	0.05 A 12 VDC	Tactile Feedback		7.3 mm
E-Switch TL1100FF260Q	100000 Cycles	Polyester	0.3 mm	Through Hole	Standard	PC Pin	SPST-NO	-20 ░C	70 °C	260 gf	Non-Illuminated	Off-Mom		12 mm	12 mm	Top Actuated	0.05 A 12 VDC	Tactile Feedback		12 mm
E-Switch TL1100CF260Q	100000 Cycles	Polyester	0.3 mm	Right Angle Through Hole	Plunger for Cap	PC Pin	SPST-NO	-20 ░C	70 °C	260 gf	Non-Illuminated	Off-Mom	6.45 mm	9.9 mm	12 mm	Side Actuated	0.05 A 12 VDC	Tactile Feedback
E-Switch TL1100F160Q8JBLKTRAY	100000 Cycles	Polyester	0.3 mm	Through Hole	Oval Button	PC Pin	SPST-NO	-20 ░C	70 °C	160 gf	Non-Illuminated	Off-Mom		12 mm	12 mm	Top Actuated	0.05 A 12 VDC			10.25 mm
E-Switch TL1100CF260R	100000 Cycles	Polyester	0.3 mm	Right Angle Through Hole	Plunger for Cap	PC Pin	SPST-NO	-20 ░C	70 °C	260 gf	Non-Illuminated	Off-Mom	6.45 mm	9.9 mm	12 mm	Side Actuated	0.05 A 12 VDC	Tactile Feedback
