F16EA Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

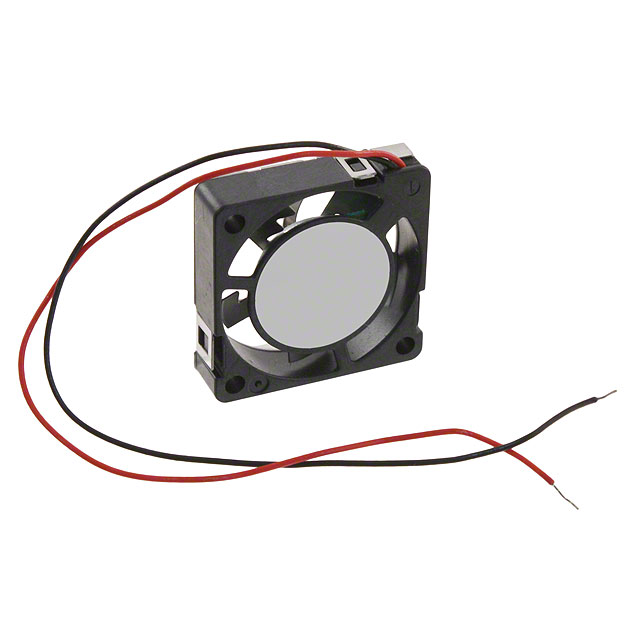

FAN AXIAL 16X4MM 3.3VDC WIRE
| Part | Noise | Air Flow | Air Flow | Static Pressure | Static Pressure | Termination | Width [x] | Fan Type | Power (Watts) | Material - Blade | Material - Frame | Current Rating (Amps) | Weight | Weight | RPM | Size / Dimension [z] | Size / Dimension [x] | Voltage Range [Max] | Voltage Range [Min] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 3 dB(A) | 0.012 m³/min | 0.424 CFM | 4.7 Pa | 0.019 in H2O | 2 Wire Leads | 4 mm | Tubeaxial | 70 mW | Steel | Liquid Crystal Polymer (LCP) | 20 mA | 1.36 g | 0.003 lb | 6500 RPM | 16 mm | 16 mm | 3.5 VDC | 3.2 VDC | -10 °C | -10 °C | 60 °C | 60 °C | Sleeve |
