392-090 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 90POS 0.100

Part	Contact Finish	Number of Rows	Termination Rows	Gender	Card Type	Read Out	Number of Positions	Mounting Type	Color	Material - Insulation	Contact Type	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Termination	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features

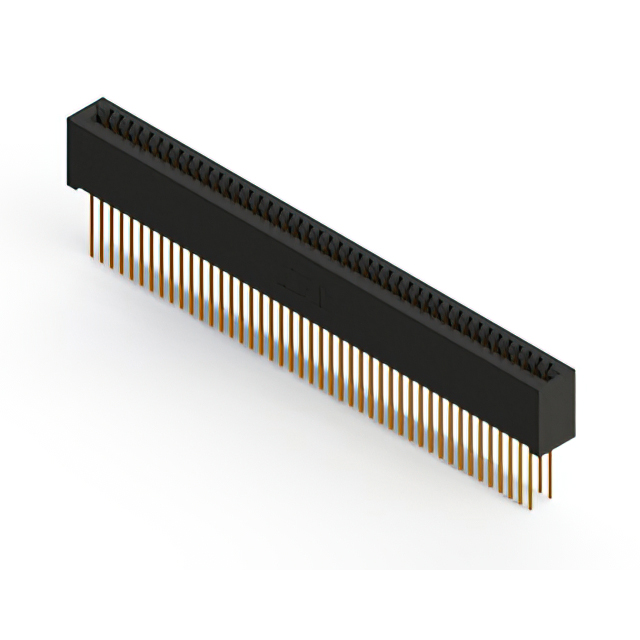

EDAC Inc. 392-090-541-201	Gold	2	2	Female	Non Specified - Dual Edge	Dual	90	Through Hole	Black	Polyester Thermoplastic	Cantilever	45	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2.54 mm	0.1 in	Wire Wrap	Copper Alloy	10 Áin	0.25 Ám
EDAC Inc. 392-090-523-203	Gold	2	2	Female	Non Specified - Dual Edge	Dual	90	Through Hole	Black	Polyester Thermoplastic	Cantilever	45	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2.54 mm	0.1 in	Solder	Copper Alloy	10 Áin	0.25 Ám	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 392-090-558-203	Gold	2	2	Female	Non Specified - Dual Edge	Dual	90	Through Hole Right Angle	Black	Polyester Thermoplastic	Cantilever	45	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2.54 mm	0.1 in	Solder Wire Wrap	Copper Alloy	10 Áin	0.25 Ám	0.116 in	Floating Bobbin Flush Mount	2.95 mm
EDAC Inc. 392-090-544-208	Gold	2	2	Female	Non Specified - Dual Edge	Dual	90	Through Hole	Black	Polyester Thermoplastic	Cantilever	45	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2.54 mm	0.1 in	Wire Wrap	Copper Alloy	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 392-090-521-208	Gold	2	2	Female	Non Specified - Dual Edge	Dual	90	Through Hole	Black	Polyester Thermoplastic	Cantilever	45	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2.54 mm	0.1 in	Solder	Copper Alloy	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 392-090-524-202	Gold	2	2	Female	Non Specified - Dual Edge	Dual	90	Through Hole	Black	Polyester Thermoplastic	Cantilever	45	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2.54 mm	0.1 in	Solder	Copper Alloy	10 Áin	0.25 Ám	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm
EDAC Inc. 392-090-560-212	Gold	2	2	Female	Non Specified - Dual Edge	Dual	90	Board Edge Straddle Mount	Black	Polyester Thermoplastic	Cantilever	45	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2.54 mm	0.1 in	Solder	Copper Alloy	10 Áin	0.25 Ám	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Card Extender
EDAC Inc. 392-090-524-207	Gold	2	2	Female	Non Specified - Dual Edge	Dual	90	Through Hole	Black	Polyester Thermoplastic	Cantilever	45	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2.54 mm	0.1 in	Solder	Copper Alloy	10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 392-090-520-202	Gold	2	2	Female	Non Specified - Dual Edge	Dual	90	Through Hole	Black	Polyester Thermoplastic	Cantilever	45	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2.54 mm	0.1 in	Solder	Copper Alloy	10 Áin	0.25 Ám	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm

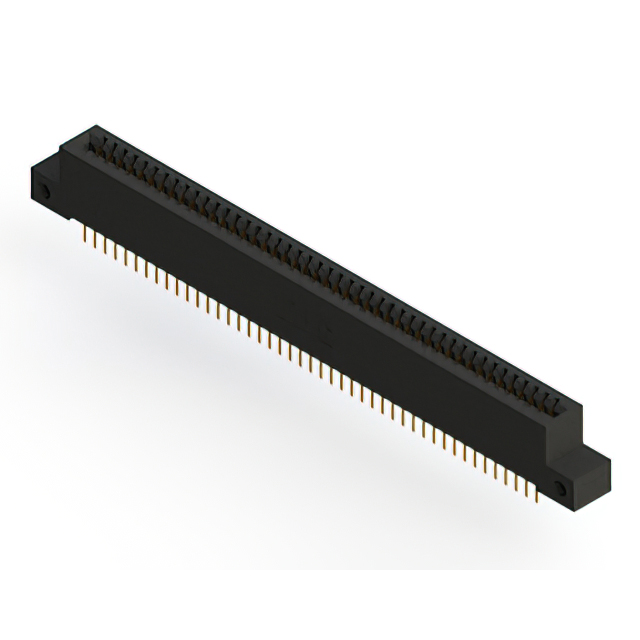

EDAC Inc. 392-090-524-212	Gold	2	2	Female	Non Specified - Dual Edge	Dual	90	Through Hole	Black	Polyester Thermoplastic	Cantilever	45	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	2.54 mm	0.1 in	Solder	Copper Alloy	10 Áin	0.25 Ám	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm
