H9025 Series
Manufacturer: Harwin Inc.
Beta
⌘K

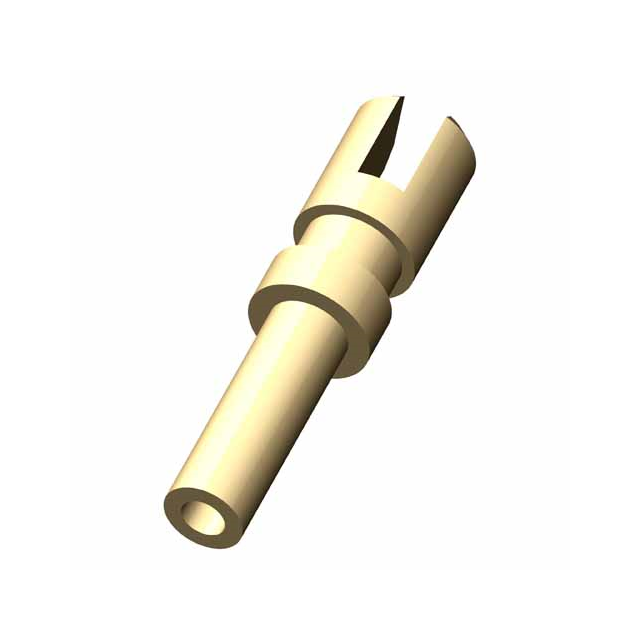

VERTICAL THROUGHBOARD SLOTTED LUG ROHS COMPLIANT: YES
| Part | Length - Above Board [x] | Length - Above Board [x] | Length - Overall | Length - Overall | Staking Side ID | Staking Side ID | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Contact Finish | Insulation | Board Thickness | Board Thickness | Number of Turrets | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Terminal Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 0.156 in | 3.96 mm | 0.29 in | 7.37 mm | 0.026 in | 0.66 mm | 1.37 mm | 0.05 " | 1.27 mm | 0.054 " | Gold | Non-Insulated | 0.126 in | 3.2 mm | Single | 0.072 " | 1.83 mm | Brass Alloy | Swage | 3.68 mm | 0.145 " | Fork Single End | Through Hole |
