1577638 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

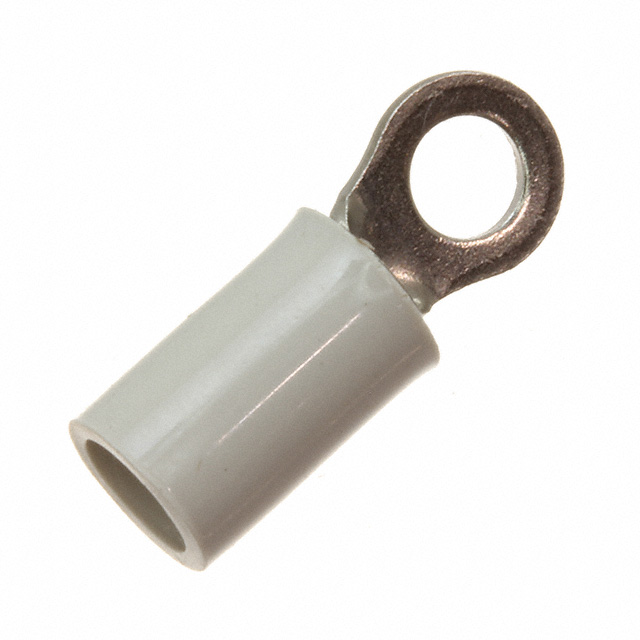

TERMINAL RT PIDG PEEK STRATO 14-12 AWG
| Part | Mounting Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Terminal Type | Contact Material | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation | Features | Stud/Tab Size | Termination | Thickness | Thickness | Length - Overall [x] | Length - Overall [x] | Contact Finish | Wire Gauge [Max] | Wire Gauge [Min] | Material - Insulation | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | 0.25 " | 6.35 mm | Circular | Copper | 0.09 " | 0.125 " | 2.29 mm | 3.18 mm | Insulated | Serrated Termination | 6 Stud | Crimp | 0.81 mm | 0.032 in | 0.749 in | 19.02 mm | Nickel | 14 AWG | 12 AWG | Polyetheretherketone (PEEK) | Beige |
