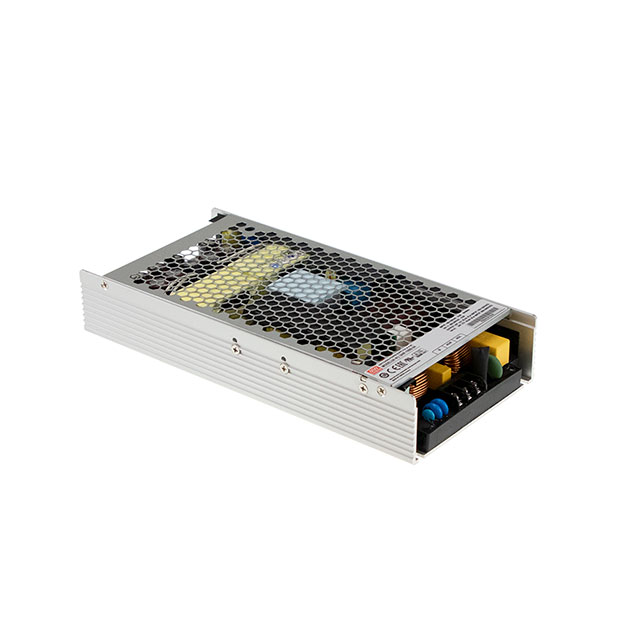

UHP-1000 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 24V 1008W
| Part | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Type | Voltage - Isolation | Number of Outputs | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Features | Current - Output 1 | Mounting Type | Applications | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 24 V | -30 °C | 70 °C | 41 mm | 115 mm | 4.53 in | 9.45 " | 240 mm | 1.61 " | 1.008 kW | Enclosed | 3750 VDC | 1 | 90 VAC 250 VDC | 264 VAC 370 VDC | 95 % | Adjustable Output PFC Remote On/Off Universal Input | 42 A | Chassis Mount | Household Appliances ITE (Commercial) | CB CE cURus EAC TUV |
MEAN WELL USA Inc. | 12 V | -30 °C | 70 °C | 41 mm | 115 mm | 4.53 in | 9.45 " | 240 mm | 1.61 " | 960 W | Enclosed | 3750 VDC | 1 | 90 VAC 250 VDC | 264 VAC 370 VDC | 94 % | Adjustable Output PFC Remote On/Off Universal Input | Chassis Mount | Household Appliances ITE (Commercial) | CB CE cURus EAC TUV | |
MEAN WELL USA Inc. | 48 V | -30 °C | 70 °C | 41 mm | 115 mm | 4.53 in | 9.45 " | 240 mm | 1.61 " | 1.008 kW | Enclosed | 3750 VDC | 1 | 90 VAC 250 VDC | 264 VAC 370 VDC | 96 % | Adjustable Output PFC Remote On/Off Universal Input | 21 A | Chassis Mount | Household Appliances ITE (Commercial) | CB CE cURus EAC TUV |
