M2015SS Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Circuit	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Illumination	Current Rating (Amps)	Actuator Type	Voltage Rating - DC	Termination Style	Mounting Type	Bushing Thread	Switch Function	Voltage Rating - AC	Actuator Length [x]	Bushing Thread

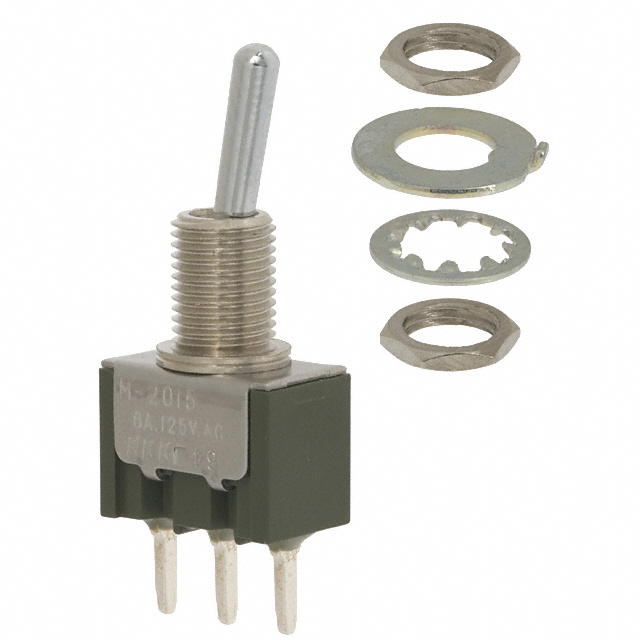

NKK Switches M2015SS1W03	25000 Steps	Brass Chrome Plated	SPDT	6.5 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Non-Illuminated	3 A 6 A	Standard Round	30 V	PC Pin	Panel Mount	1/4-40	On-Mom	125 V
NKK Switches M2015SS1W01-CC	25000 Steps	Brass Chrome Plated	SPDT	6.5 mm	85 °C	-30 ░C	Red Cap	Non-Illuminated	3 A 6 A	Standard Round with Cap	30 V	Solder Lug	Panel Mount	1/4-40	On-Mom	125 V	13.1 mm
NKK Switches M2015SS1W01-BA	25000 Steps	Brass Chrome Plated	SPDT	6.5 mm	85 °C	-30 ░C	Black Cap	Non-Illuminated	3 A 6 A	Standard Round with Cap	30 V	Solder Lug	Panel Mount	1/4-40	On-Mom	125 V	13.5 mm
NKK Switches M2015SS2A13	25000 Steps	Brass Chrome Plated	SPDT	6.5 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Non-Illuminated	3 A 6 A	Standard Round	30 V	PC Pin	Through Hole	Unthreaded	On-Mom	125 V
NKK Switches M2015SS2W13	25000 Steps	Brass Chrome Plated	SPDT	6.5 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Non-Illuminated	3 A 6 A	Standard Round	30 V	PC Pin	Through Hole	Unthreaded	On-Mom	125 V
NKK Switches M2015SS1W01-BE	25000 Steps	Brass Chrome Plated	SPDT	6.5 mm	85 °C	-30 ░C	Yellow Cap	Non-Illuminated	3 A 6 A	Standard Round with Cap	30 V	Solder Lug	Panel Mount	1/4-40	On-Mom	125 V	13.5 mm
NKK Switches M2015SS4G01-BB	25000 Steps	Brass Chrome Plated	SPDT	6.5 mm	85 °C	-30 ░C	White Cap	Non-Illuminated	0.4 VA	Standard Round with Cap	28 V	Solder Lug	Panel Mount	M6	On-Mom	28 V		0.75
NKK Switches M2015SS4G01	25000 Steps	Brass Chrome Plated	SPDT	6.5 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Non-Illuminated	0.4 VA	Standard Round	28 V	Solder Lug	Panel Mount	M6	On-Mom	28 V		0.75
NKK Switches M2015SS2G23	50000 Cycles	Brass Chrome Plated	SPDT	6.5 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Non-Illuminated	0.4 VA	Standard Round	28 V	PC Pin	Through Hole	Unthreaded	On-Mom	28 V

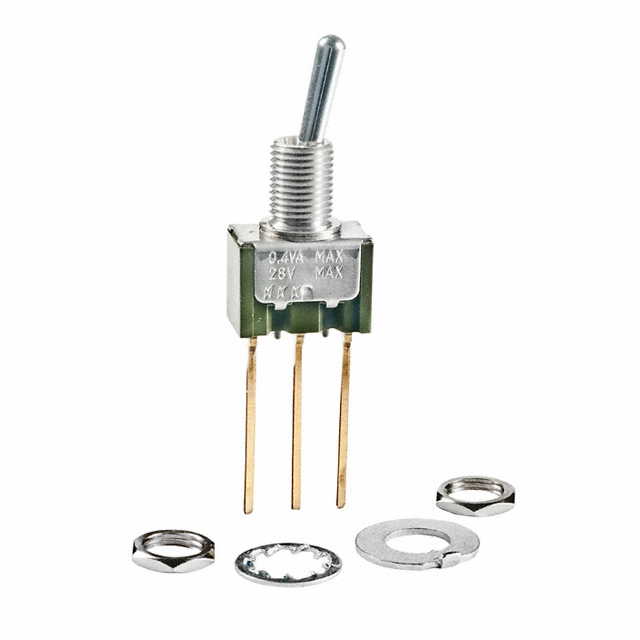

NKK Switches M2015SS1G06	50000 Cycles	Brass Chrome Plated	SPDT	6.5 mm	85 °C	-30 ░C	Epoxy Sealed Terminals	Non-Illuminated	0.4 VA	Standard Round	28 V	Wire Wrap	Panel Mount	1/4-40	On-Mom	28 V
