1059 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN OSP RCPT STR 50 OHM SOLDER

Part	Center Contact Plating	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mating Cycles	Body Material	Includes	Impedance	Number of Ports	Connector Type	Fastening Type	Center Contact Material	Shield Termination	Mounting Type	Connector Style	Housing Color	Contact Termination	Frequency - Max [Max]	Shield Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Coverage	Conductor Material	Cable Type	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Jacket (Insulation) Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Center Gender	Style	Conversion Type	Convert To (Adapter End)	Adapter Series	Adapter Type	Convert From (Adapter End)	Mounting Feature	Body Finish	Adapter Series	Convert To (Adapter End)	Cable Group

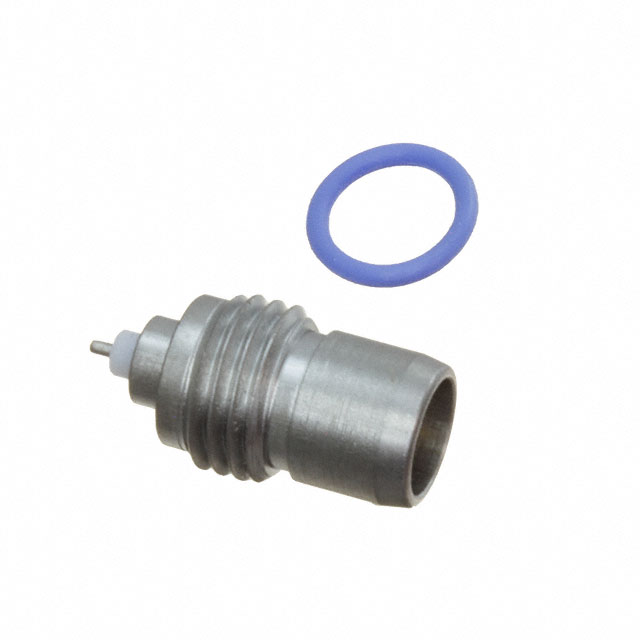

TE Connectivity AMP Connectors 1059632-1	Gold	Polytetrafluoroethylene (PTFE)	-65 ░C	125 °C	375 V	5000	Stainless Steel	1 Connector 1 Gasket	50 Ohms	1	Receptacle Male Pin	Snap-On	Beryllium Copper	Solder	Panel Mount Threaded	OSP	Silver	Solder	18 GHz
TE Connectivity AMP Connectors 10599-22-9CS1830		Ethylene Tetrafluoroethylene (ETFE)	-65 ░C	150 °C					70 Ohms											Copper Tinned	0.057 in	1.45 mm	90 %	Copper Tinned	Twinaxial	Braid	3.73 mm	0.147 "	White	Ethylene Tetrafluoroethylene (ETFE)	22 AWG	19	34 AWG

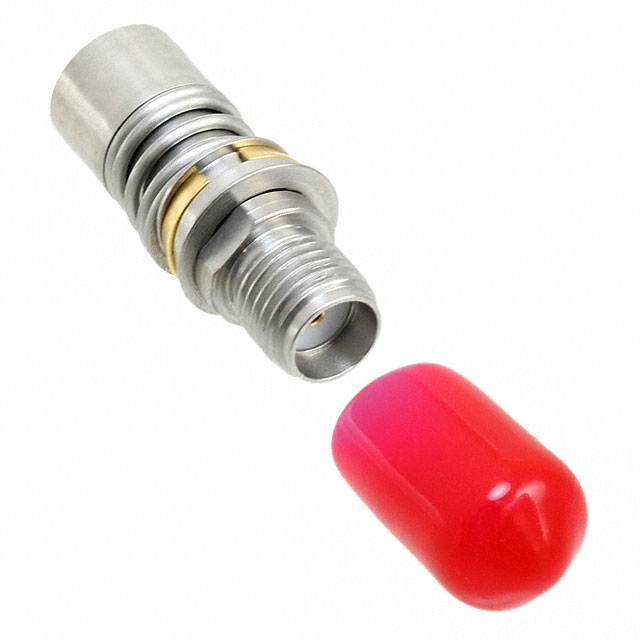

TE Connectivity AMP Connectors 1059724-1	Gold	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C			Stainless Steel		50 Ohms			Snap-On Threaded	Beryllium Copper		Panel Mount Snap-In				18 GHz															Female to Female	Straight	Between Series	OSP Jack Female Socket	OSM to OSP	Jack to Jack	Female Socket SMA Jack
TE Connectivity AMP Connectors 1059110-1
TE Connectivity AMP Connectors 1059453-1	Gold	Polytetrafluoroethylene (PTFE)	-65 ░C	125 °C	500 V	500	Stainless Steel		50 Ohms	1	Female Socket Jack	Threaded	Beryllium Copper	Solder	Panel Mount	SMA	Silver	Solder	22 GHz																						Flange
TE Connectivity AMP Connectors 1059350-1	Gold	Polytetrafluoroethylene (PTFE)	-40 C	105 ░C		5000	Brass	1 Connector 1 Lockwasher 1 Nut	50 Ohms	1	Plug Male Pin	Snap-On	Brass	Solder	Panel Mount Right Angle Through Hole	OSP Mini	Gold	Solder	6000 MHz																						Bulkhead - Front Side Nut	Gold
TE Connectivity AMP Connectors 1059713-1	Gold						Stainless Steel					Snap-On Threaded	Brass		Free Hanging (In-Line)				18 GHz															Male to Non-Gendered	Straight	Between Series	Non-Gendered	OSP		Male Pin OSP Plug			7 mm	7 mm
TE Connectivity AMP Connectors 1059386-1	Gold	Polytetrafluoroethylene (PTFE)	-65 ░C	125 °C	335 V	5000	Stainless Steel	1 Connector 1 Gasket 1 Lockwasher 1 Nut	50 Ohms	1	Plug Male Pin	Snap-On	Beryllium Copper	Solder	Panel Mount	OSP	Gold		22 GHz																						Bulkhead - Front Side Nut	Gold			RG-405 (.085" Semi Rigid)
TE Connectivity AMP Connectors 1059506-1	Gold	Polytetrafluoroethylene (PTFE)	-65 ░C	125 °C		5000	Stainless Steel	1 Connector 1 Lockwasher 1 Nut	50 Ohms	1	Female Socket Jack	Snap-On	Beryllium Copper	Solder	Panel Mount	OSP Mini	Silver		22 GHz																						Bulkhead - Front Side Nut				RG-405 (.085" Semi Rigid)
TE Connectivity AMP Connectors 1059412-1	Gold	Polytetrafluoroethylene (PTFE)	-65 ░C	125 °C		5000	Stainless Steel	1 Connector 1 Gasket 1 Lockwasher 1 Nut	50 Ohms	1	Female Socket Jack	Snap-On	Beryllium Copper	Solder	Panel Mount	OSP Mini	Gold		22 GHz																						Bulkhead - Front Side Nut	Gold			RG-405 (.085" Semi Rigid)
