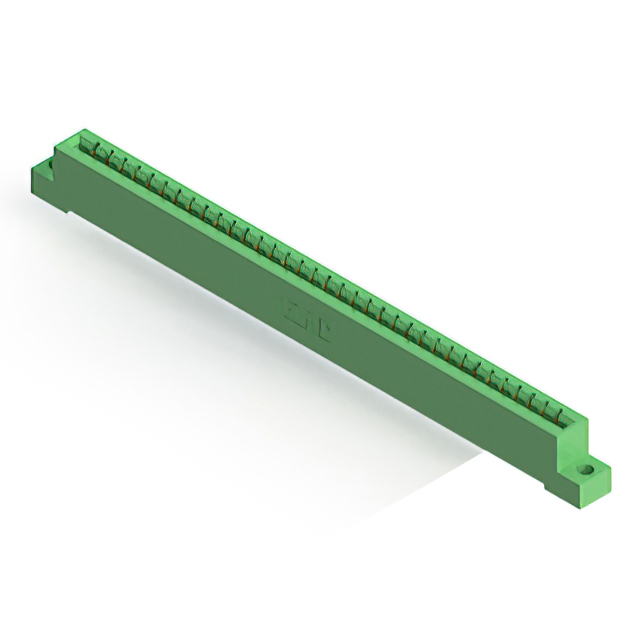

333-035 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 35POS 0.156
| Part | Material - Insulation | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Gender | Contact Material | Pitch | Pitch | Contact Finish | Card Type | Contact Type | Color | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows | Card Thickness [Max] | Card Thickness [Min] | Termination | Read Out | Mounting Type | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Female | Copper Alloy | 3.96 mm | 0.156 in | Gold | Non Specified - Single Edge | Cantilever | Green | 35 | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Single | Through Hole | 35 | -40 C | 105 ░C |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Female | Copper Alloy | 3.96 mm | 0.156 in | Gold | Non Specified - Single Edge | Cantilever | Green | 35 | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Single | Through Hole | 35 | -40 C | 105 ░C |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Female | Copper Alloy | 3.96 mm | 0.156 in | Gold | Non Specified - Single Edge | Cantilever | Green | 35 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Single | Through Hole | 35 | -40 C | 105 ░C | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Female | Copper Alloy | 3.96 mm | 0.156 in | Gold | Non Specified - Single Edge | Cantilever | Green | 35 | M3 Threaded Insert Top Mount Opening | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Single | Through Hole | 35 | -40 C | 105 ░C | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Female | Copper Alloy | 3.96 mm | 0.156 in | Gold | Non Specified - Single Edge | Cantilever | Green | 35 | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Single | Through Hole | 35 | -40 C | 105 ░C | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Female | Copper Alloy | 3.96 mm | 0.156 in | Gold | Non Specified - Single Edge | Cantilever | Green | 35 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Single | Right Angle Through Hole | 35 | -40 C | 105 ░C |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Female | Copper Alloy | 3.96 mm | 0.156 in | Gold | Non Specified - Single Edge | Cantilever | Green | 35 | Flush Mount M3 Threaded Insert Top Opening | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | Single | Through Hole | 35 | -40 C | 105 ░C | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Female | Copper Alloy | 3.96 mm | 0.156 in | Gold | Non Specified - Single Edge | Cantilever | Green | 35 | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Single | Through Hole | 35 | -40 C | 105 ░C | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 0.25 Ám | 10 Áin | Female | Copper Alloy | 3.96 mm | 0.156 in | Gold | Non Specified - Single Edge | Cantilever | Green | 35 | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Single | Through Hole | 35 | -40 C | 105 ░C |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | Female | Copper Alloy | 3.96 mm | 0.156 in | Gold | Non Specified - Single Edge | Cantilever | Green | 35 | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Single | Through Hole | 35 | -40 C | 105 ░C |
