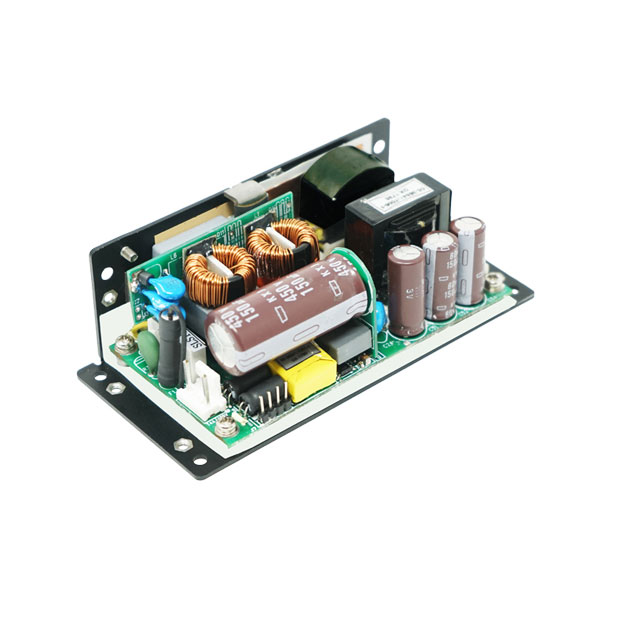

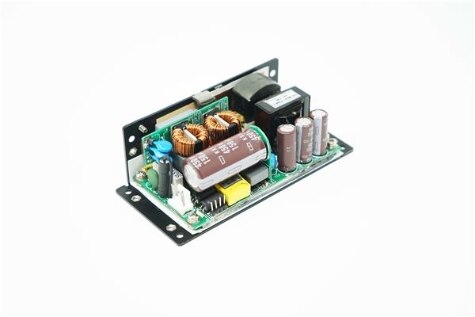

LED Power Supplies LU225S56K
LED Power Supplies LU225S56K
| Part | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Type | Voltage - Output | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Termination Style | Efficiency | Topology | Number of Outputs | Voltage - Input (Max) [Max] | Features | Voltage - Input (Min) [Min] | Approval Agency | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Applications | Power (Watts) | Power (Watts) | Voltage - Output 1 | Standard Number | Minimum Load Required | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 3.2 A | -10 °C | 70 °C | 3000 V | Constant Voltage | 56 V | 104.1 mm | 4.1 " | 2.2 in | 55.9 mm | 38.1 mm | 1.5 " | Rectangular 6 Position | 92 % | AC DC Converter | 1 | 277 VAC | OCP OTP OVP SCP | 100 VAC | CE | Chassis Mount | |||||||||
 SL POWER / Advanced Energy | -10 °C | 70 °C | Open Frame | 105.7 mm | 4.16 " | 2.2 in | 55.9 mm | 38.1 mm | 1.5 " | 92 % | 1 | Adjustable Output Universal Input | CE cURus TUV | Chassis Mount | 305 VAC | 90 VAC | ITE (Commercial) | 150 W | 224 W | 56 V | 60950-1 | 2.68 A |
