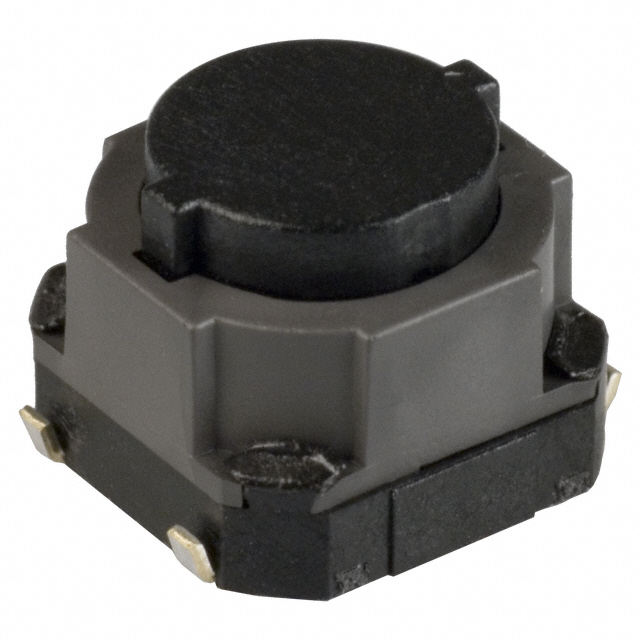

EVQ-Q1 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Actuator Orientation | Contact Rating @ Voltage | Termination Style | Outline [y] | Outline [x] | Circuit | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Height off PCB, Vertical | Illumination | Mounting Type | Switch Travel | Actuator Type | Switch Function | Mechanical Life | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | Top Actuated | 0.05 A 12 VDC | J Lead | 8 mm | 9.9 mm | SPST-NO | 0.5 kgf | 85 °C | -40 °C | 6.5 mm | Non-Illuminated | Surface Mount | 1 mm | Standard | Off-Mom | 100000 Cycles | Dust Proof |
Panasonic Industrial Automation Sales | Top Actuated | 0.05 A 12 VDC | J Lead | 8 mm | 9.9 mm | SPST-NO | 400 gf | 85 °C | -40 °C | 6.5 mm | Non-Illuminated | Surface Mount | 1 mm | Standard | Off-Mom | 100000 Cycles | Dust Proof |
